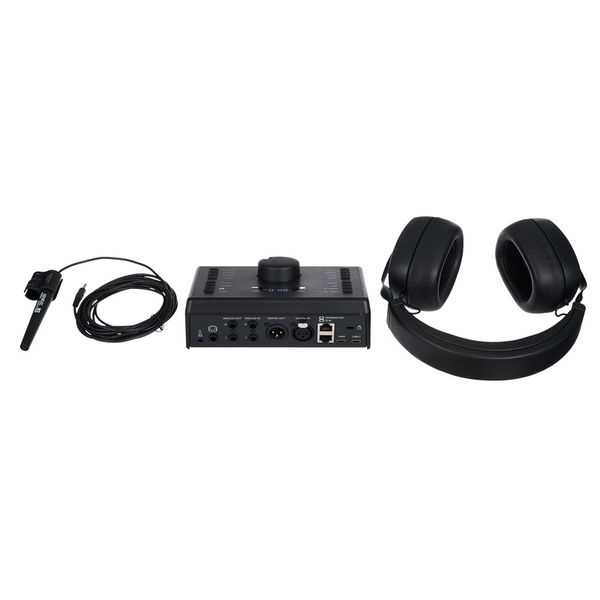

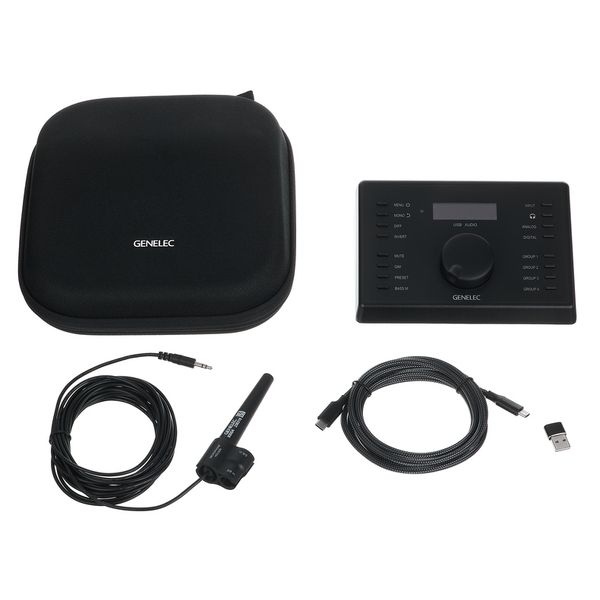

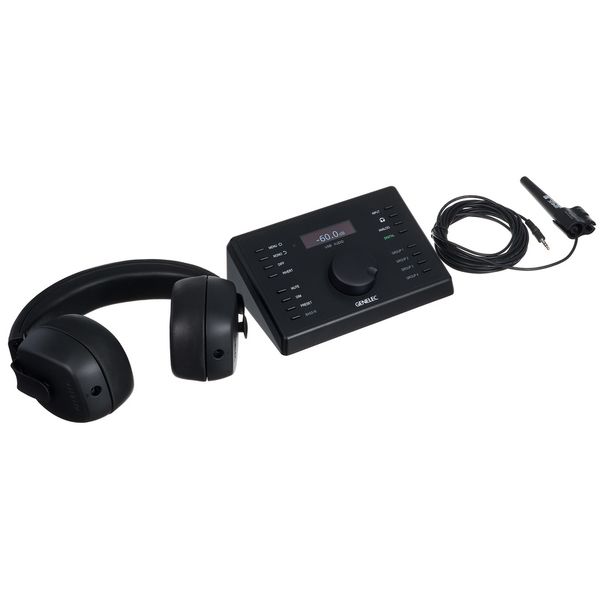

Reference Monitor System

Consisting of:

• Monitor controller Genelec 9320A
• Headphones 550A

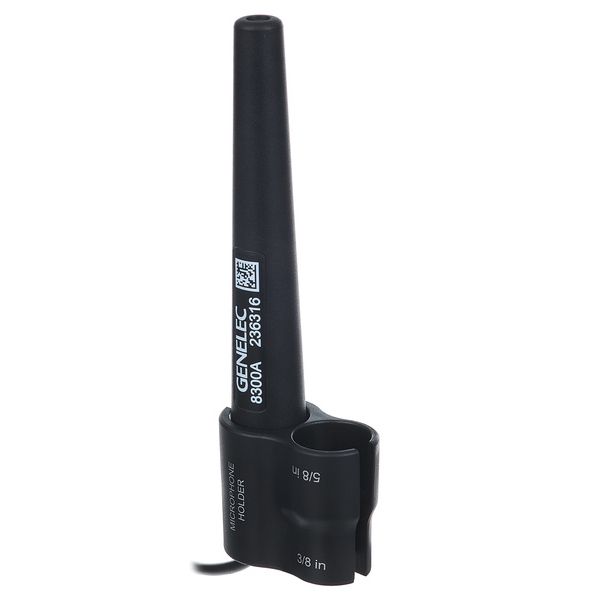

• Genelec measurement microphone with holder
• USB-C cable, 3 m with USB-A adapter

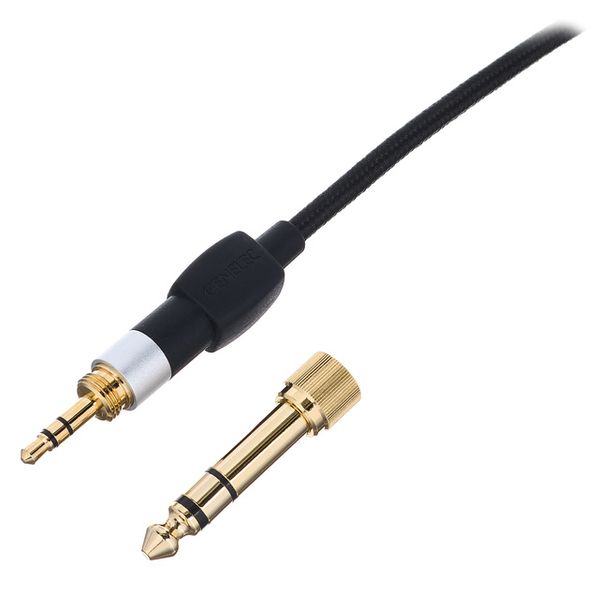

• Straight headphone cable, 3 m
• Coiled cable, 5 m
• Transport bag for 9320A and 8550A

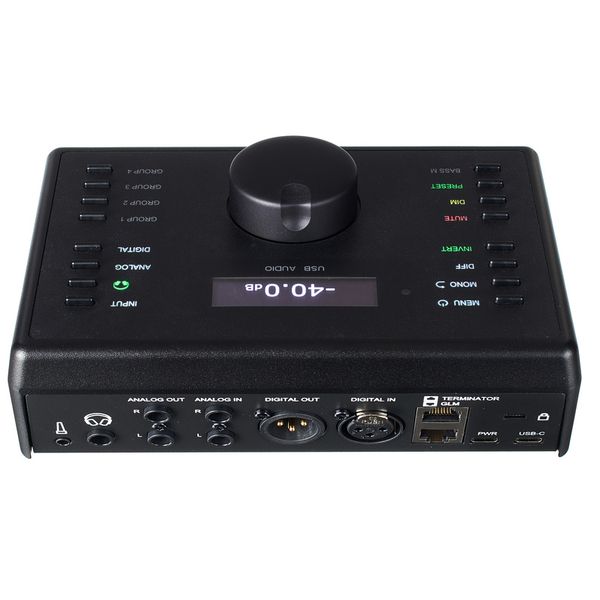

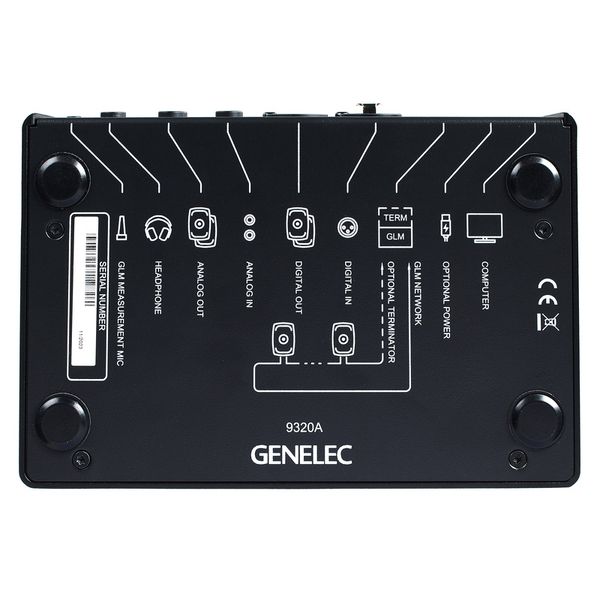

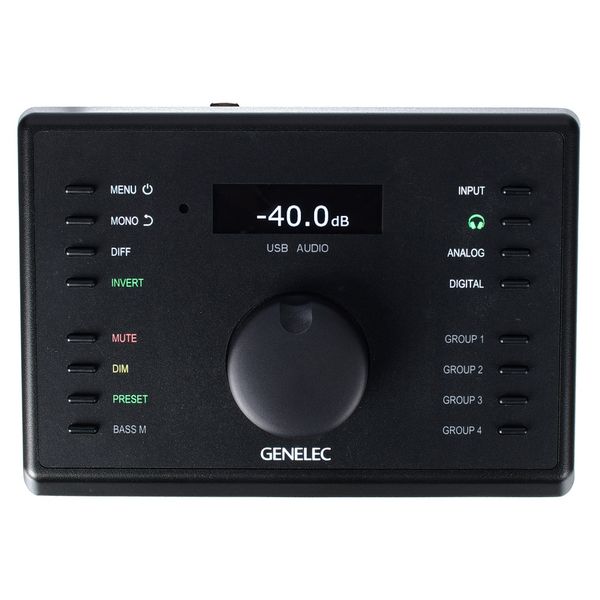

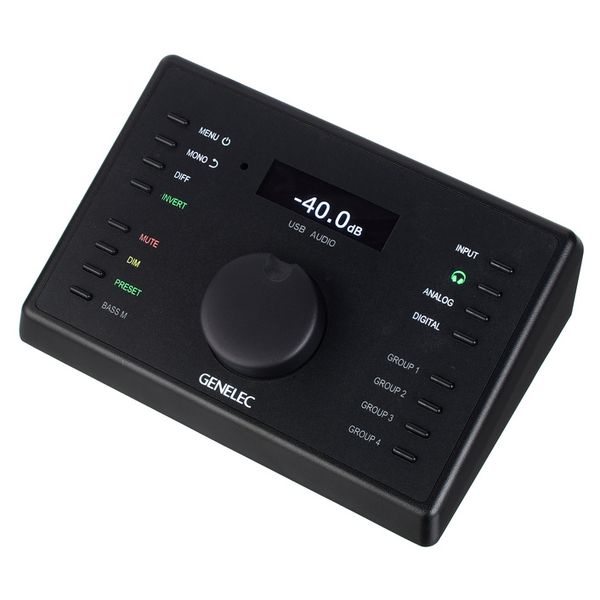

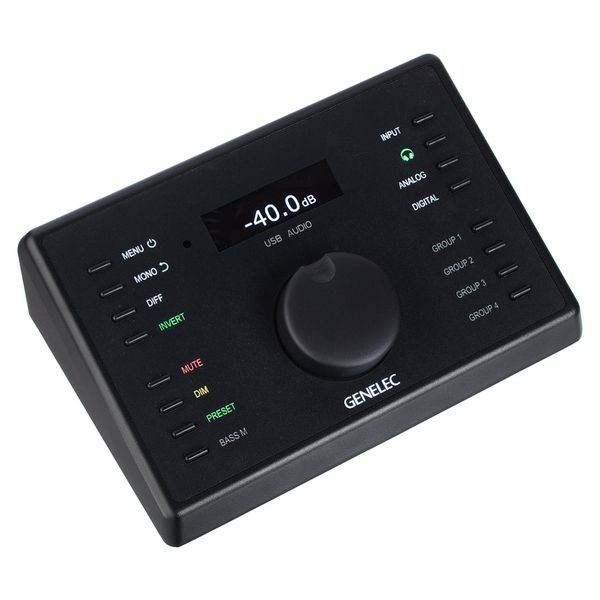

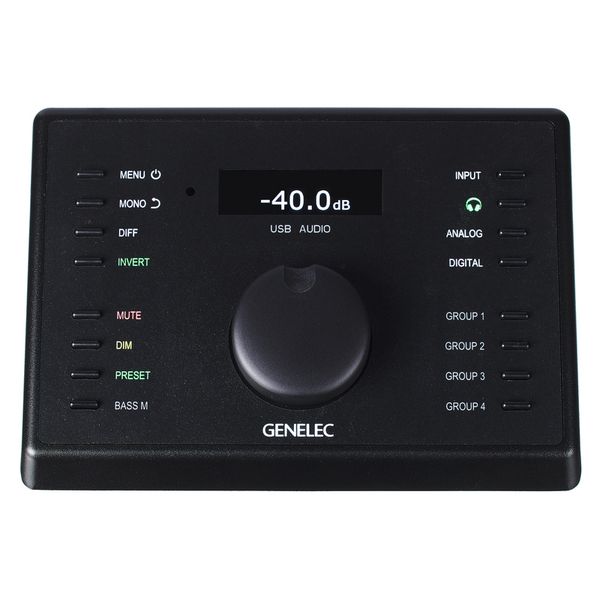

Monitor controller 9320A:

• Direct connection of up to two stereo monitoring systems plus headphones
• Supports calibration of the monitoring level in accordance with EBU R128
• ATSC A/85 or SMPTE RP200
• Tactile control of important functions of the Genelec Loudspeaker Manager software (GLM™)
• Aural ID technology (not included) allows access to personal HRTF profile (created by Genelec) for listening to stereo multi-channel and immersive monitoring layouts binauralised via headphones

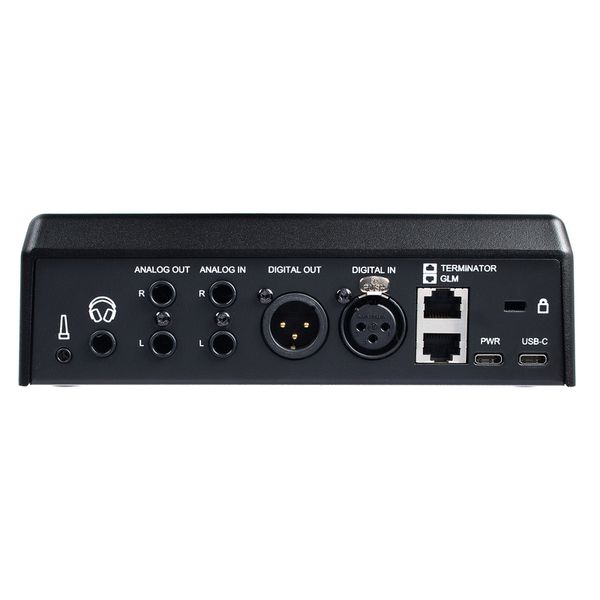

• Two line inputs: 6.3 mm jack (L/R stereo)
• Two line outputs: 6.3 mm jack (L/R stereo)
• Two RJ45
• Digital input and output: XLR AES/EBU
• Stereo headphones output (6.3mm jack)
• Input for measuring microphone: 3.5 mm mini jack
• Two USB-C ports: Computer connection + power supply
• Dimensions (W x D x H): 190 x 139 x 60 mm
• Weight: 0.9 kg

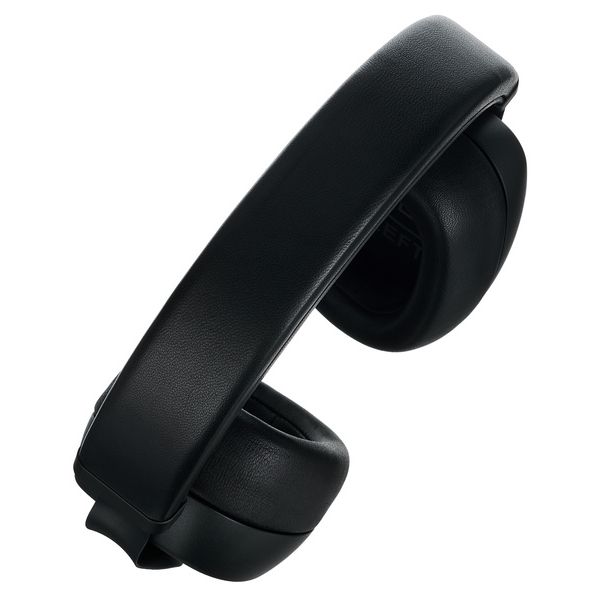

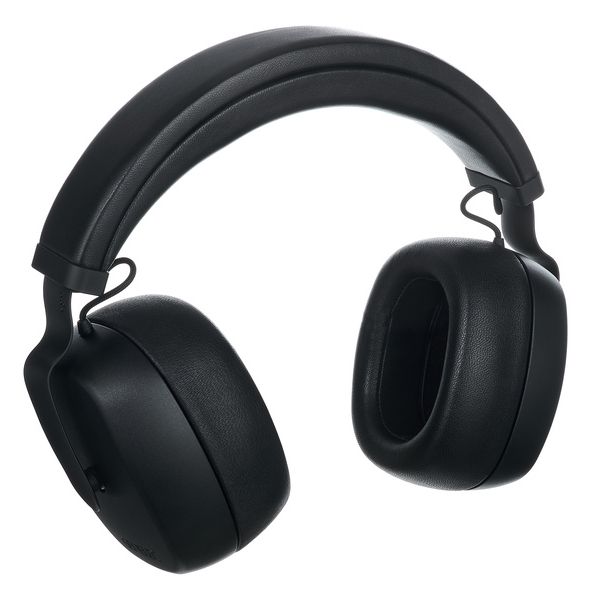

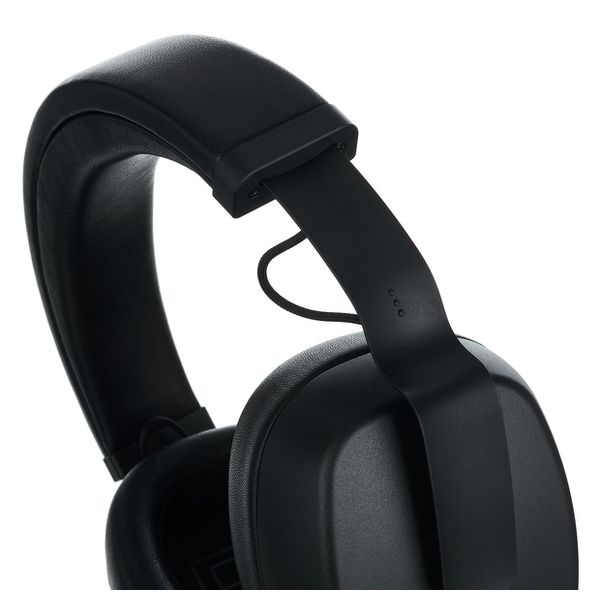

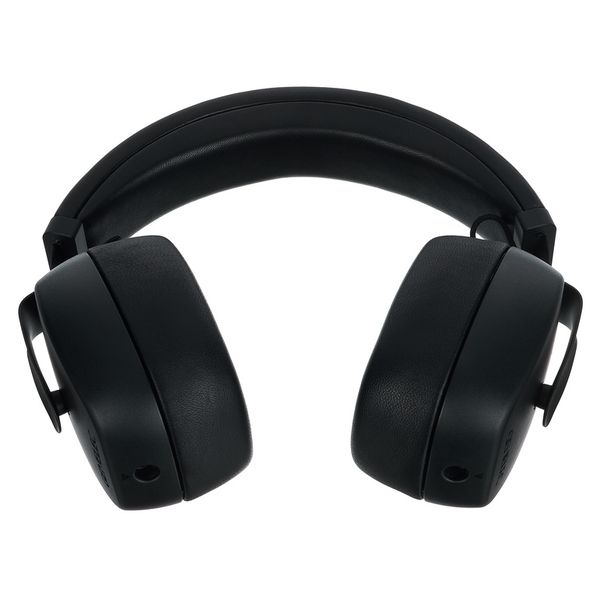

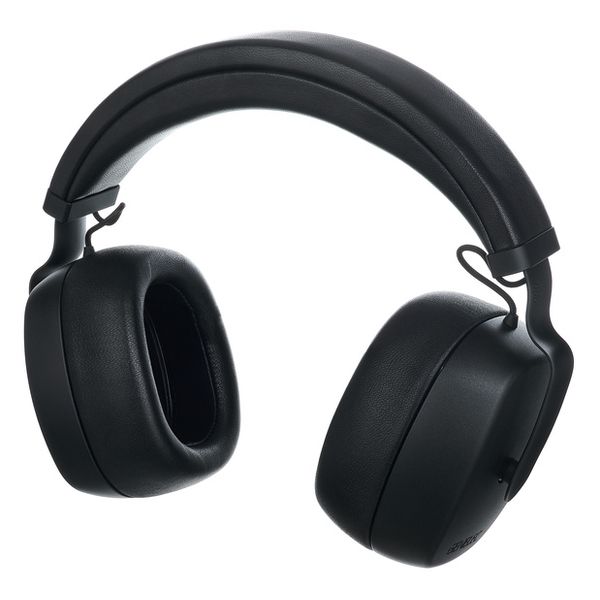

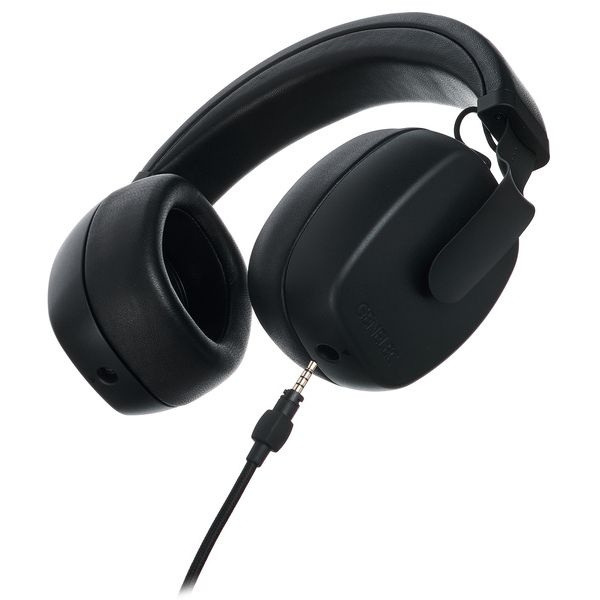

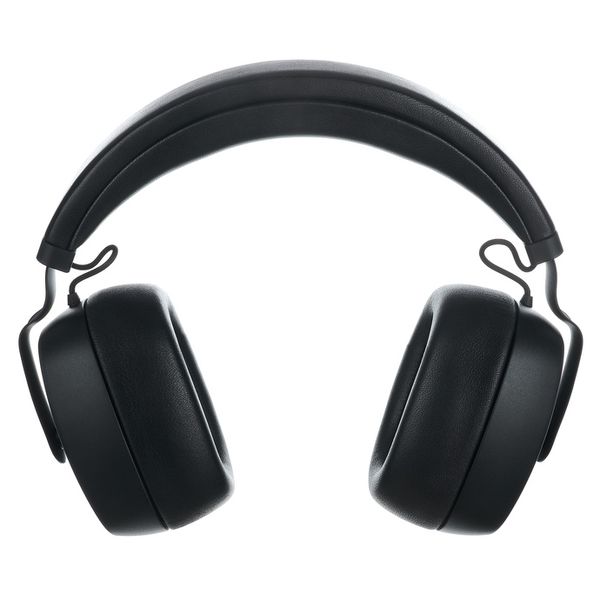

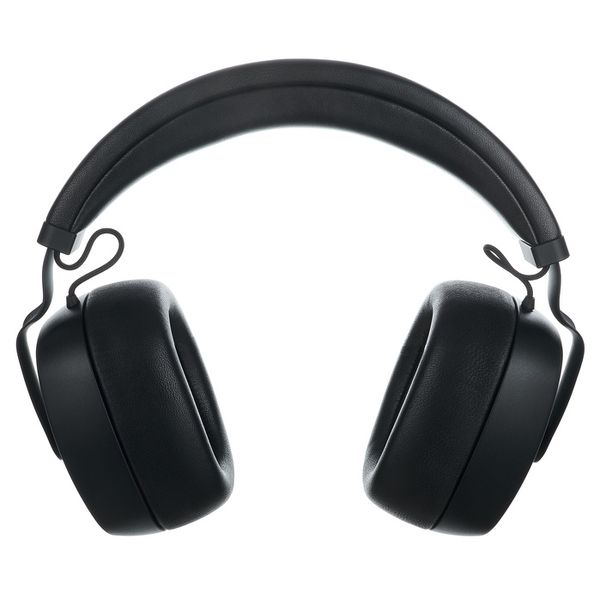

Headphones Genelec 8550A:

• Dynamic closed-back reference headphones
• Max. SPL: 109 dB (119 dB short-term)
• Frequency range: 20 - 20,000 Hz (-3dB)
• Sensitivity: 103 dB SPL/V
• Impedance at 1 kHz: 184 Ohm
• THD at 1 kHz (input 0.5 V, output 97 dB SPL: 0.09 %)

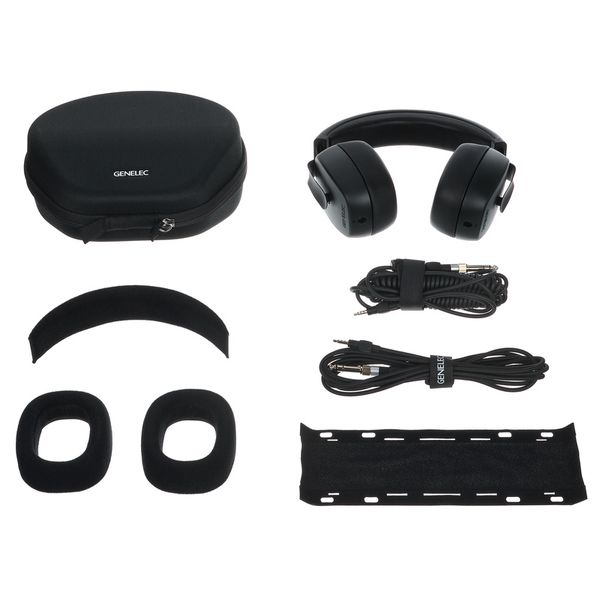

• With additional fabric ear pads and fabric headband

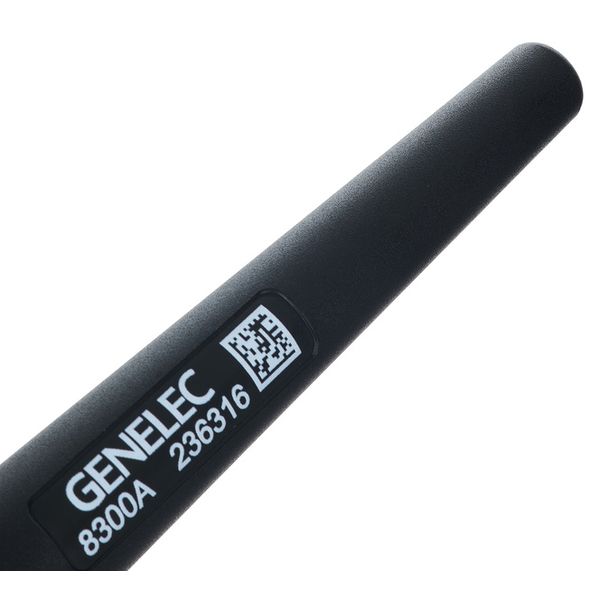

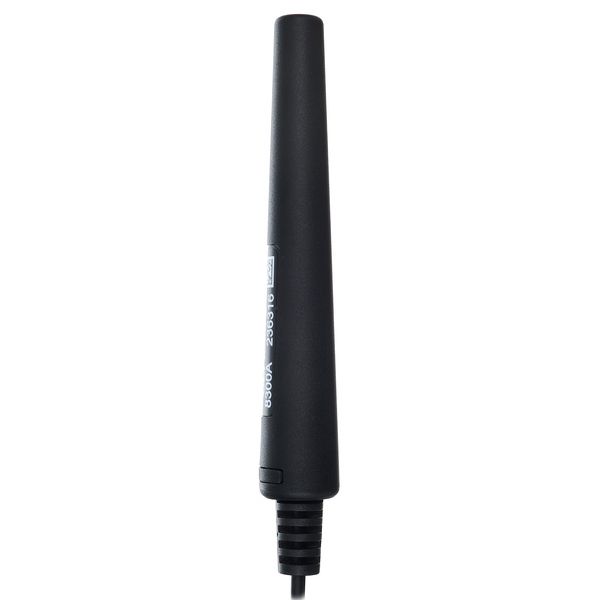

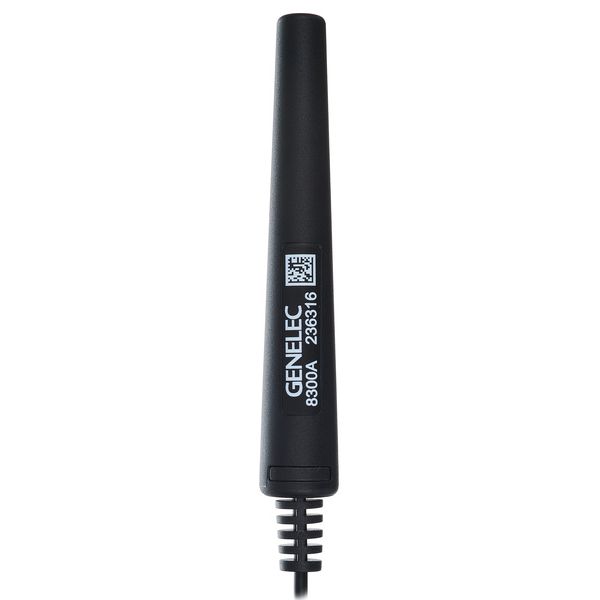

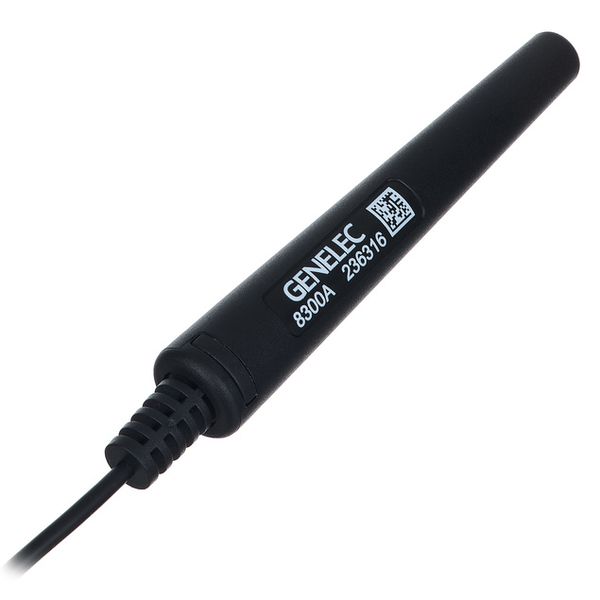

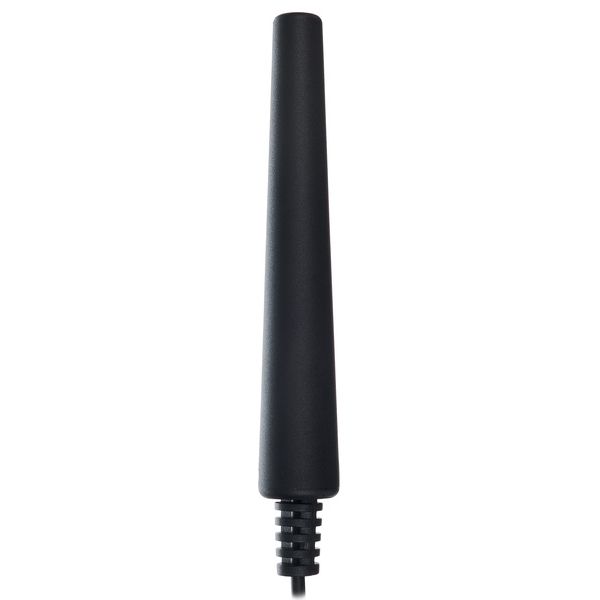

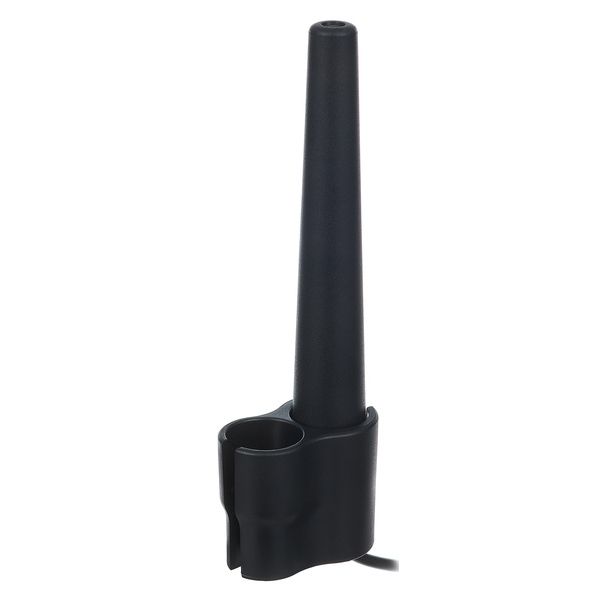

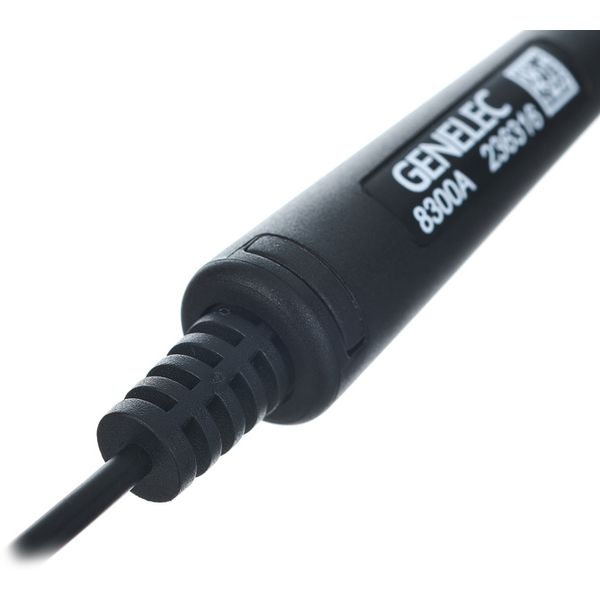

Genelec measuring microphone:

• Including holder
