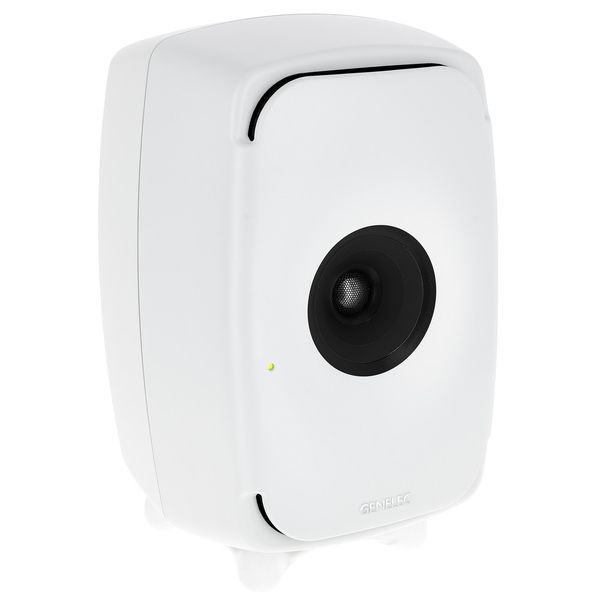

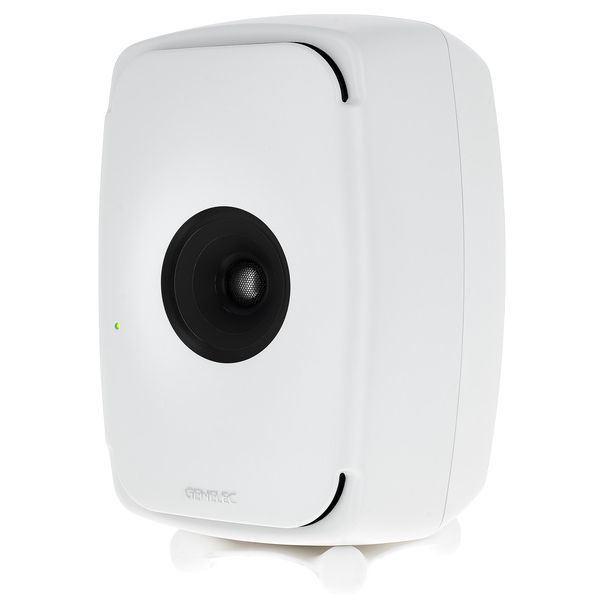

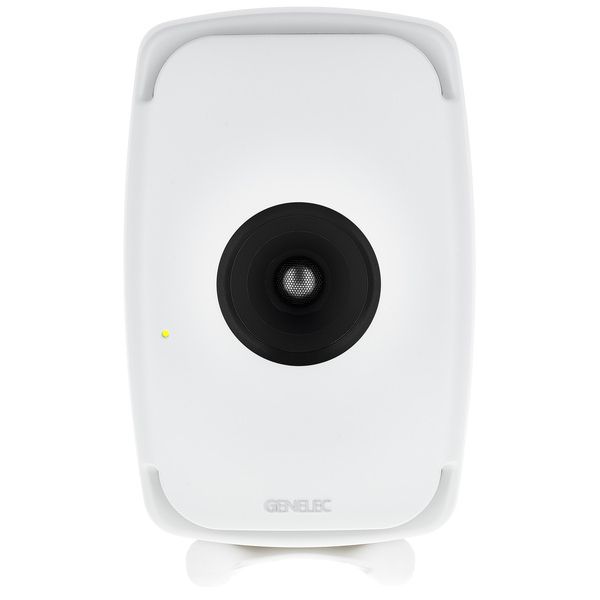

Active 3-Way Studio Monitor with Coax Driver

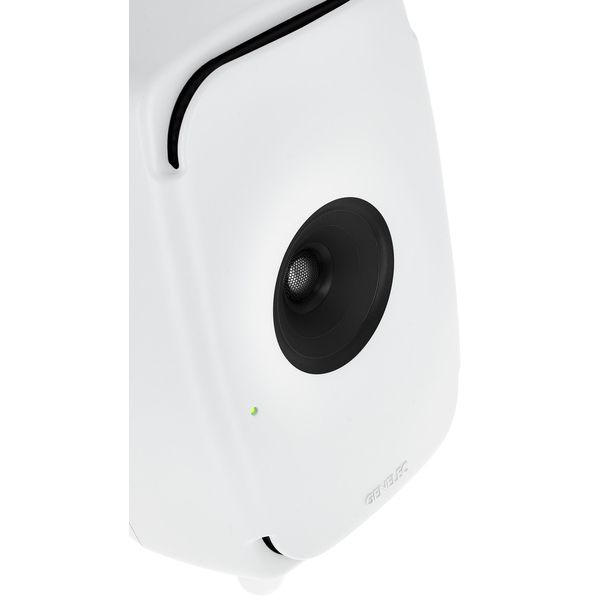

- Midrange and tweeter are on the same acoustic axis
- Horizontal and vertical operation possible
- DSP filter for room adjustment
- Amplifier: 250 W bass (Class D) + 150 W midrange (Class D) + 150 W treble (Class D)
- Frequency response: 32 - 43,000 Hz (-6 dB), 38 - 20,000 Hz (± 1.5 dB)
- SAM (Smart Active Monitor) DSP system for automatic frequency calibration to adapt the monitor to existing acoustic room conditions via optional Genelec GLM Kit calibration system or Genelec 9320 Reference Monitor Controller (not included, article numbers: 357055, 576655)
- Max SPL: 113 dB

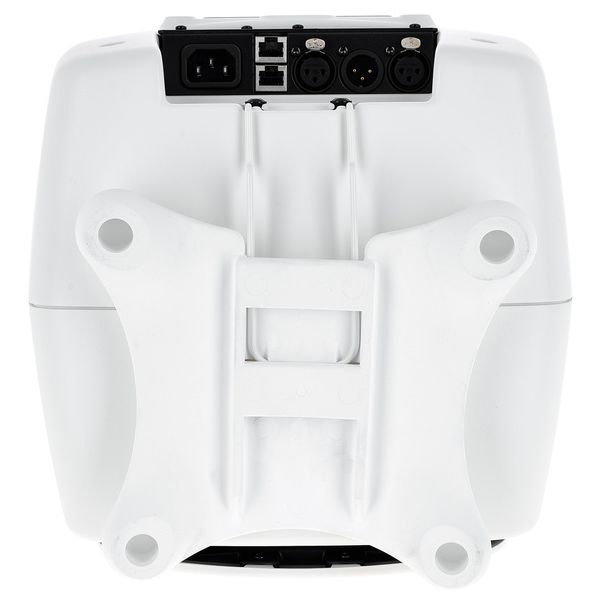

- Analogue input: XLR
- AES/EBU input and output: XLR, 2 x RJ45
- Internal power supply unit 100-240 V AC 50/60 Hz
- Aluminium housing
- Dimensions with Iso-Pod (H x W x D): 452 x 287 x 278 mm
- Weight: 14.3 kg
- Colour: White

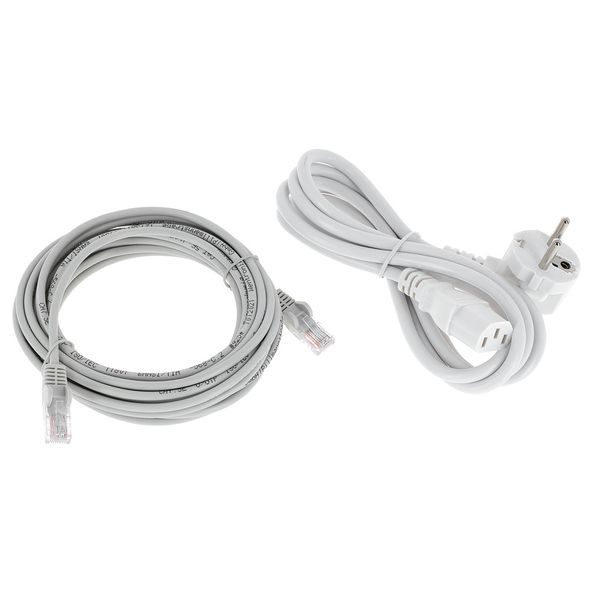

- Includes Iso-Pod, mains cable and 5 m RJ45 cable
- Price per piece
Note. also available in 120 other RAL color variants - please contact our customer service for further information and orders
Available sinceApril 2023
Item number564301
Sales Unit1 piece(s)
Speaker size2x 8,5", 1x 5", 1x 3/4"
Amplifier power per unit (RMS)550 W
Magnetic ShieldingYes
Analogue XLR InputYes
Analogue Input(Jack)No
Analogue Input (Mini Jack)No
Analogue Input (RCA)No
Digital inputYes
Manual frequency correctionYes
Frequency range min.32 Hz
Frequency range max.43000 Hz
Dimensions in mm452 x 287 x 278
Speaker Hous8ing - Woofer SystemBassreflex
