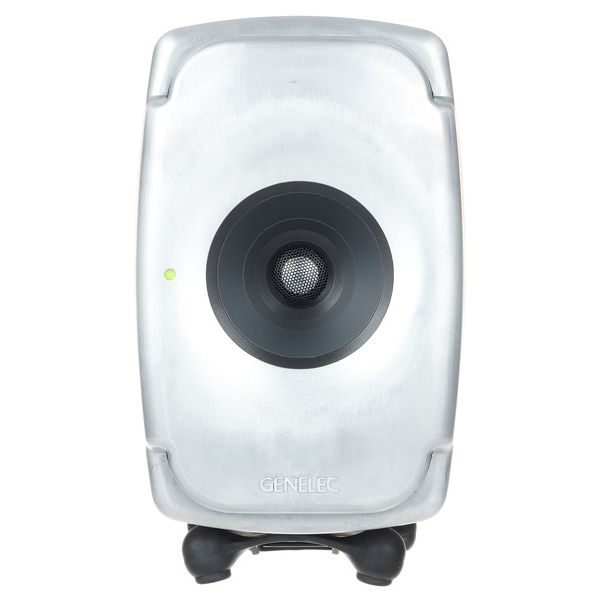

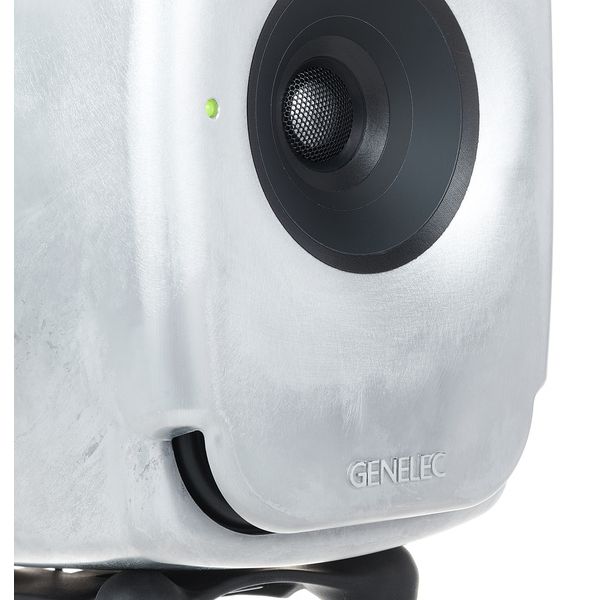

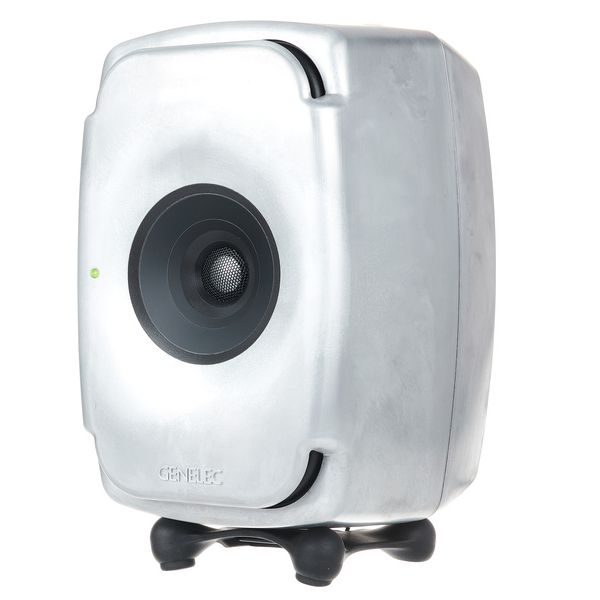

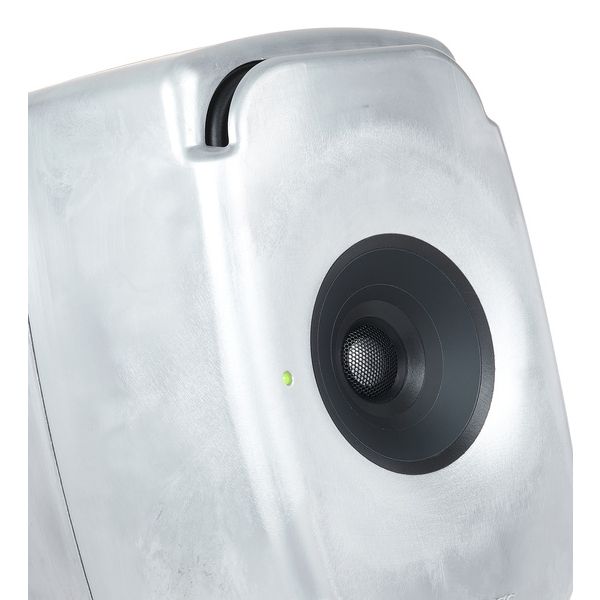

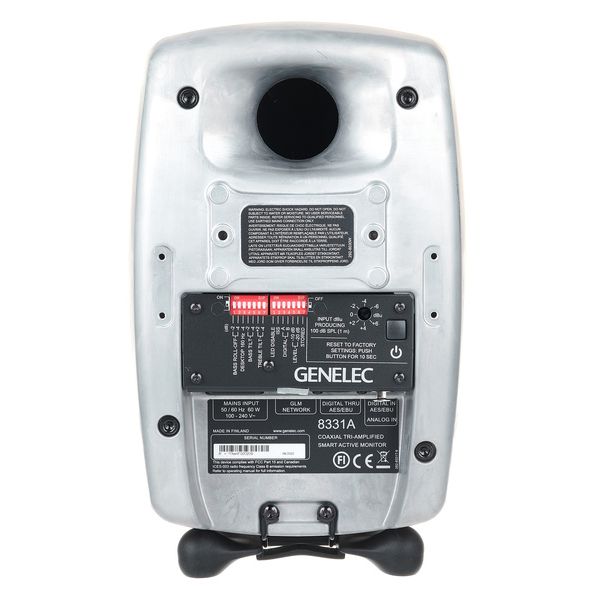

Active 3-Way Studio Monitor
- Equipped with two 5.13" x 2.13" oval woofers and 3.5" and 3/4" coaxial mid-range tweeters
- Amplifier: 72 W Class-D woofer, 36 W Class-D midrange and 36 W Class-D tweeter
- Built-in DSP
- Frequency range: 45 �?37,000 Hz (-6 dB)
- Frequency range: 58 - 20,000 Hz (+/-1.5 dB)
- Max. SPL: 110 dB SPL (1 m)

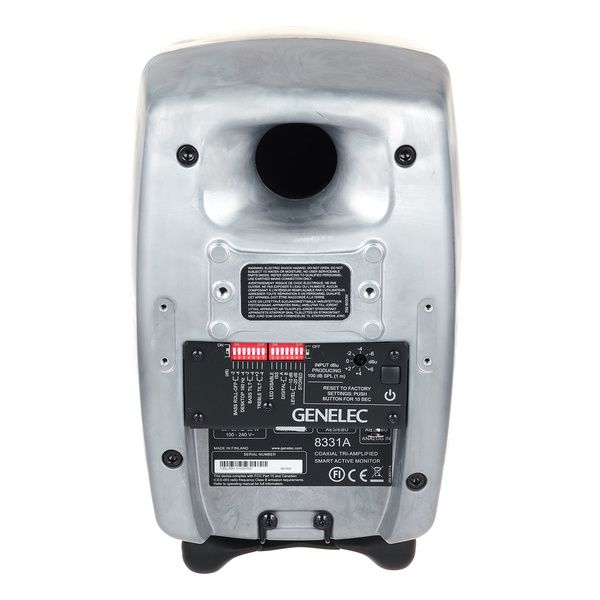

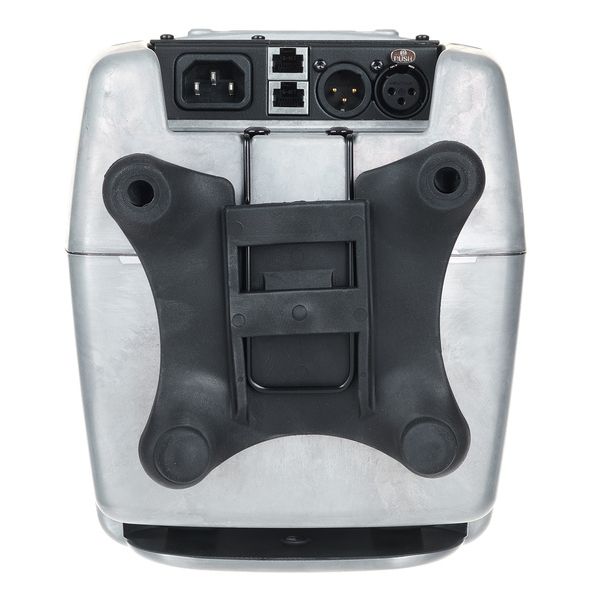

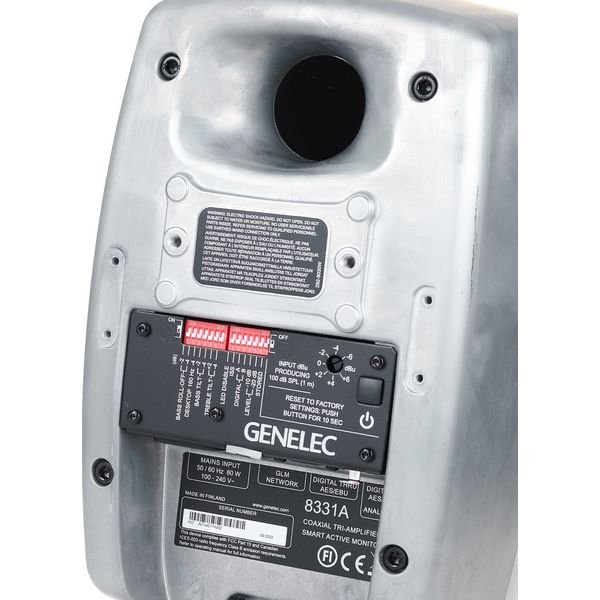

- Input: analogue/digital XLR input AES/EBU
- Output: digital XLR AES/EBU
- 2 x Network connection
- Aluminium housing
- SAM (Smart Active Monitor) DSP system for automatic frequency calibration to adapt the monitor to existing acoustic room conditions via optional Genelec GLM Kit calibration system or Genelec 9320 Reference Monitor Controller (not included, article numbers: 357055, 576655)
- Dimensions (H x W x D): 305 x 189 x 212 mm
- Weight: 6.7 kg
- Colour: Aluminium Natural
- Quantity: 1 piece

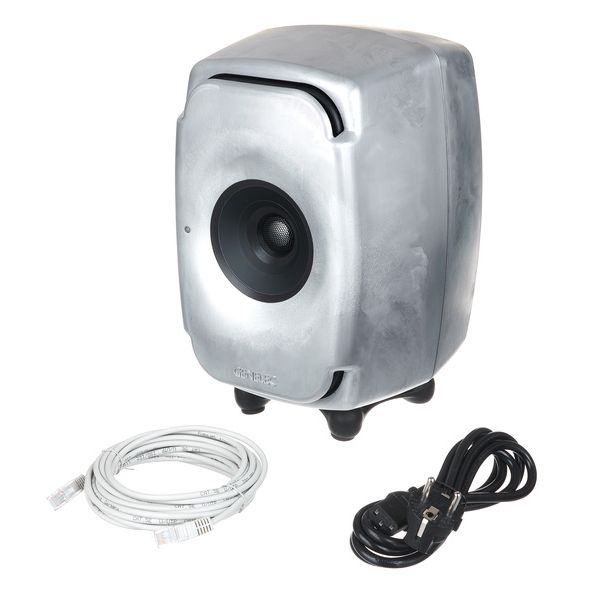

- Includes Iso-Pod, mains cable and 5 m RJ45 cable
Note. also available in 120 other RAL color variants - please contact our customer service for further information and orders
Available sinceAugust 2022
Item number543069
Sales Unit1 piece(s)
Speaker size2x 5,5"
Amplifier power per unit (RMS)144 W
Magnetic ShieldingNo
Analogue XLR InputYes
Analogue Input(Jack)No
Analogue Input (Mini Jack)No
Analogue Input (RCA)No
Digital inputYes
Manual frequency correctionYes
Frequency range min.58 Hz
Frequency range max.20000 Hz
Dimensions in mm305 x 189 x 212
Weight in kg6,7 kg
Speaker Hous8ing - Woofer SystemBassreflex
