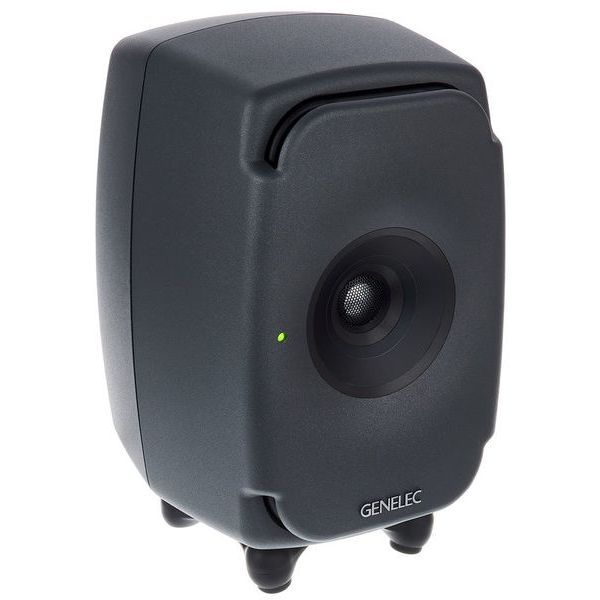

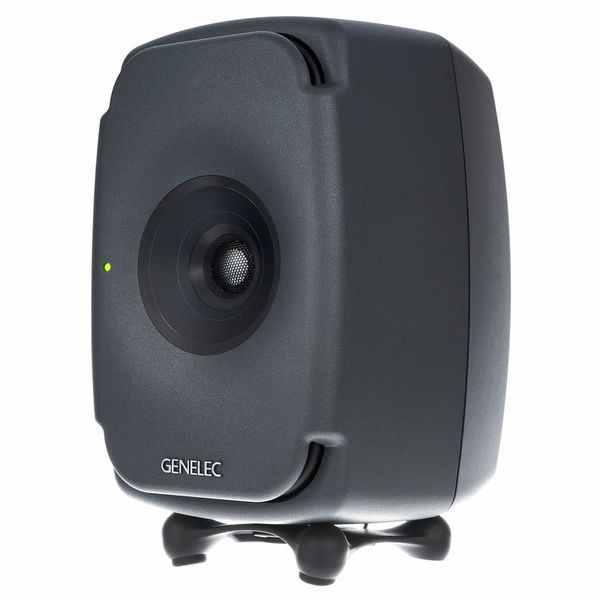

Active 3-Way Studio Monitor

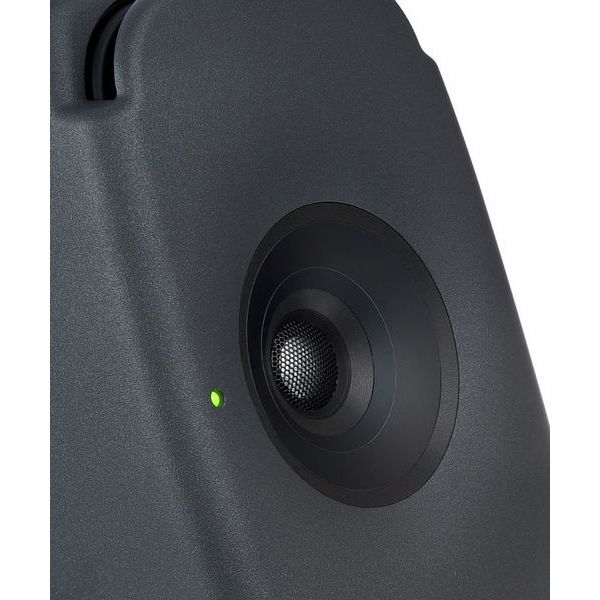

- Equipped with: Two oval woofers 5.13" x 2.13", 3.5" and 3/4" coax-midrange-tweeters
- Amplifier: 72 Watts Class-D bass, 36 Watts Class-D midrange, 36 Watts Class-D tweeter
- Integrated DSP
- Frequency range: 45 - 37000 Hz (-6 dB)
- Linear frequency range: 58 - 20000 Hz (+/- 1.5 dB)
- Maximum level: 110 dB (1 m)

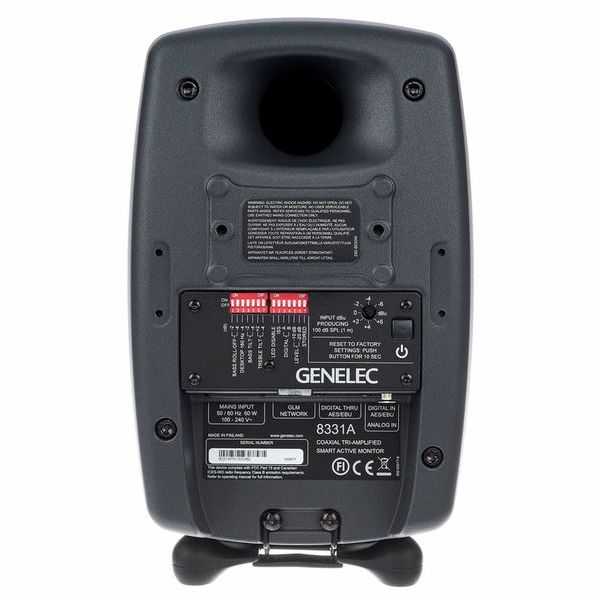

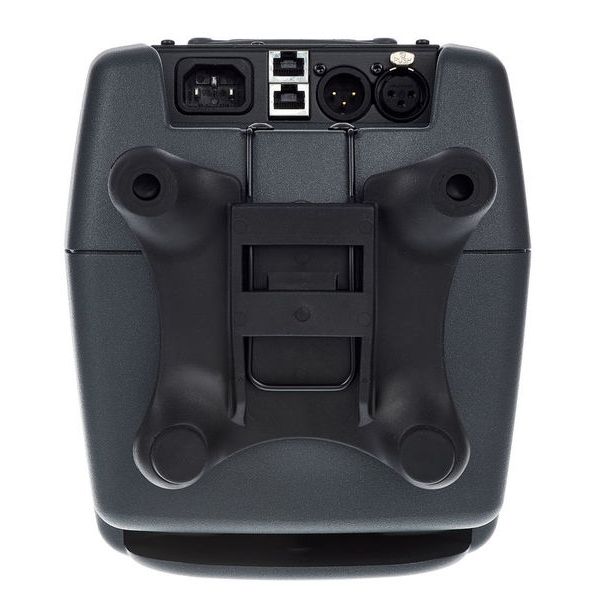

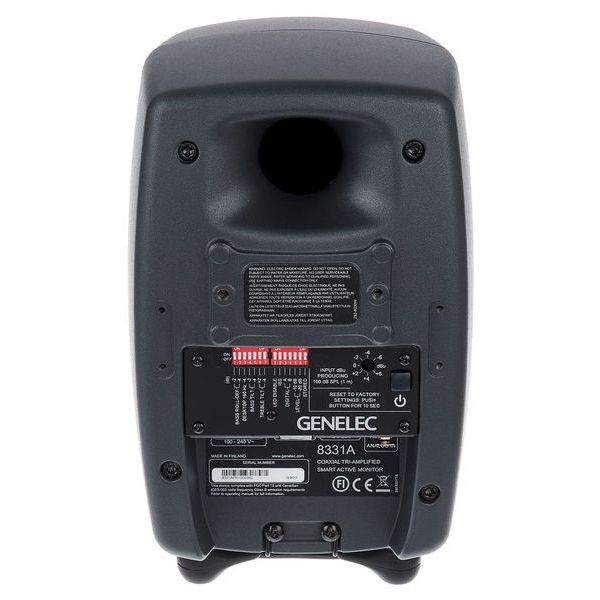

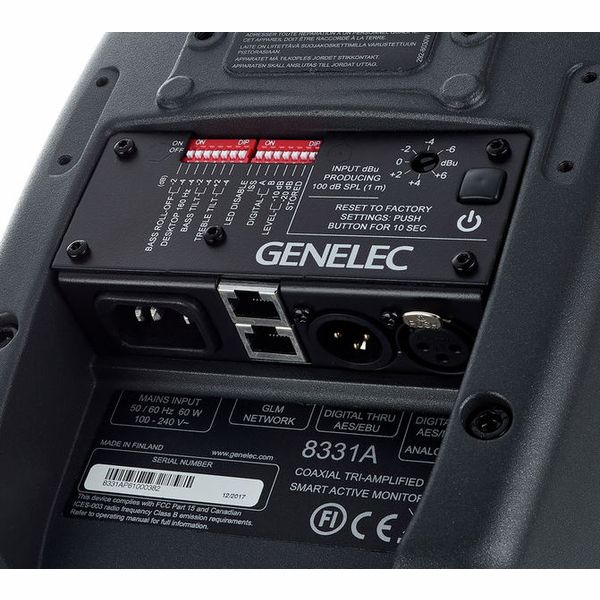

- Analogue/digital XLR input AES/EBU
- Digital XLR output AES/EBU
- 2x Network connections

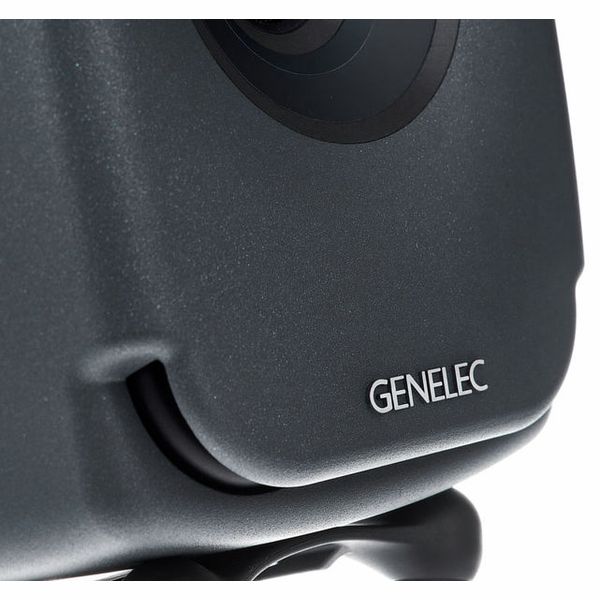

- Aluminium housing
- SAM (Smart Active Monitor) DSP system for automatic frequency calibration to adapt the monitor to existing acoustic room conditions via optional Genelec GLM Kit calibration system or Genelec 9320 Reference Monitor Controller (not included, Art. 357055 and 576655)
- Dimensions (H x W x D): 305 x 189 x 212 mm
- Weight: 6.7 kg
- Colour: Anthracite

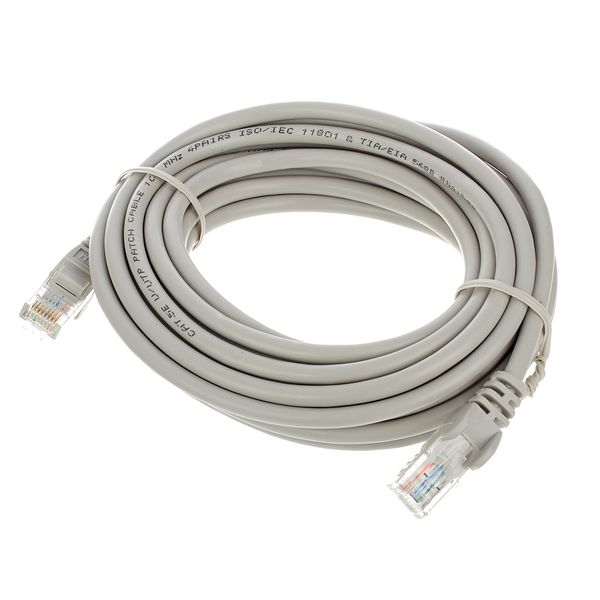

- Includes Iso-Pod, power supply cable and 5 m RJ45 cable
- Price per unit
Note. also available in 120 other RAL color variants - please contact our customer service for further information and orders
Available sinceJanuary 2018
Item number430647
Sales Unit1 piece(s)
Speaker size2x 5,5"
Amplifier power per unit (RMS)144 W
Magnetic ShieldingNo
Analogue XLR InputYes
Analogue Input(Jack)No
Analogue Input (Mini Jack)No
Analogue Input (RCA)No
Digital inputYes
Manual frequency correctionYes
Frequency range min.58 Hz
Frequency range max.20000 Hz
Dimensions in mm305 x 189 x 212
Weight in kg6,7 kg
Speaker Hous8ing - Woofer SystemBassreflex
