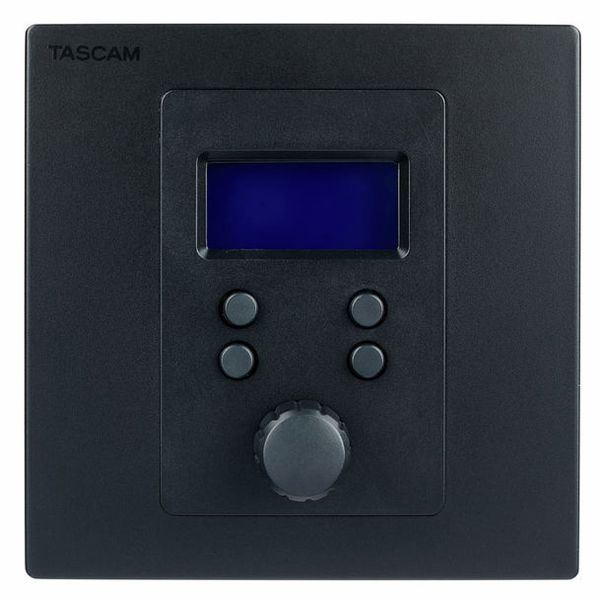

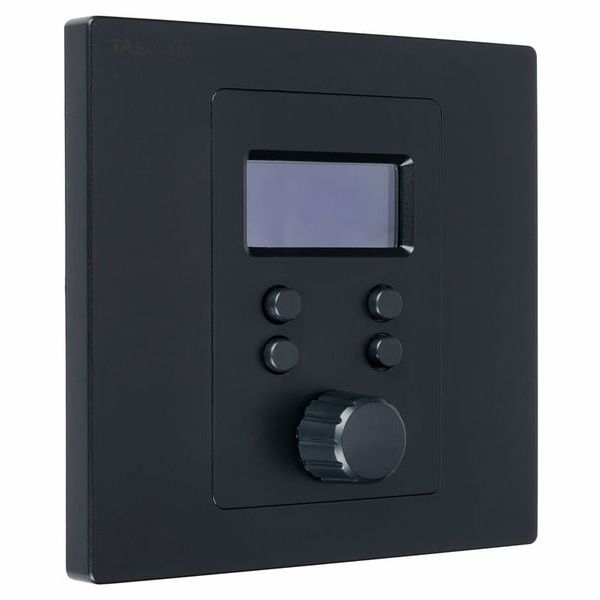

Tascam RC-W100-R86

Programmable Control Module For Wall Installation

• Suitable for switching between four or eight audio sources of a compatible, permanently installed audio system
• Four switch buttons and one rotary encoder with a push-button function
• Illuminated display (illumination switches off automatically)
• Up to eight control units can be used with one matrix mixer (Tascam MX-8A)
• Power supply via RS-485 from the mixer
• Power consumption: 0.24 W

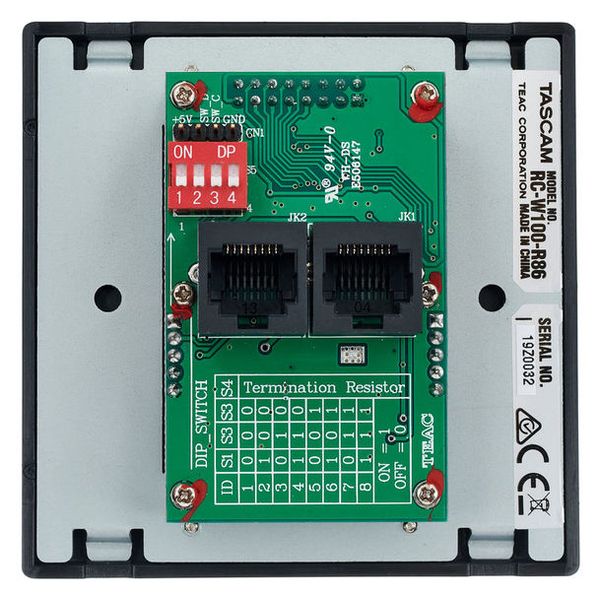

• Connections: 2 x RJ-45 sockets (RS-485)
• Dimensions (W x H x D): 87 × 87 × 54 mm
