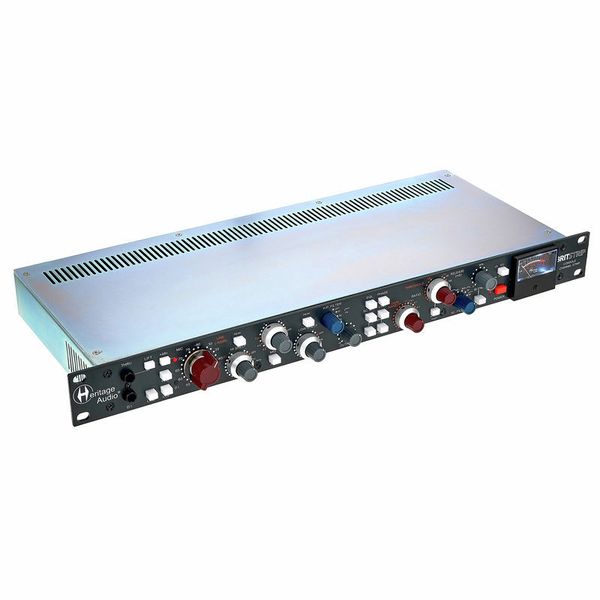

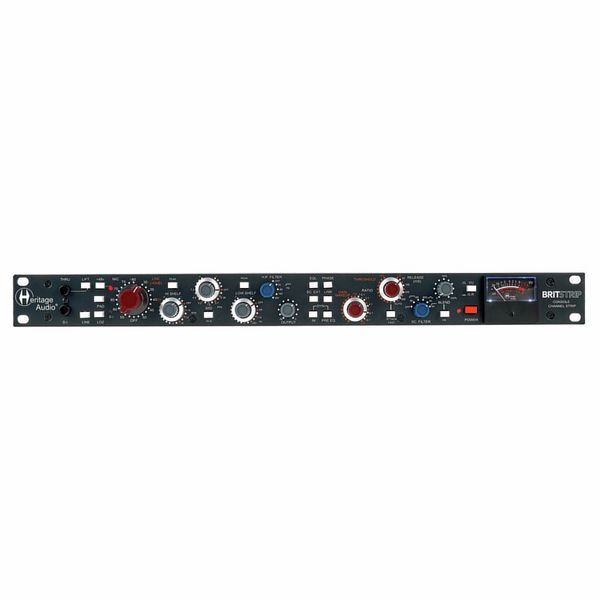

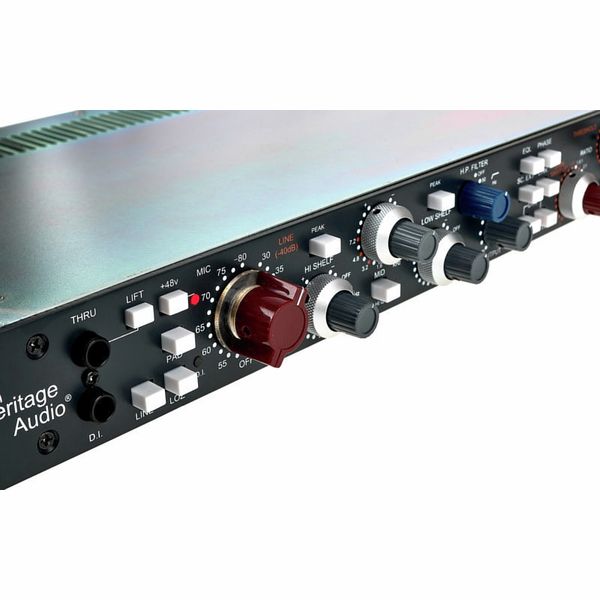

Heritage Audio BritStrip

1-Channel Channel Strip in 1073 Style with Diode Bridge Bus Compressor

• Preamplifier with Carnhill input and output transformers
• 3-Step discrete class A design
• Up to 80 dB gain
• 20 dB Pad
• Phase reversal
• Input impedance knob between 300 and 1200 Ohm
• DI Input with discrete class A JFET swich, as well as passive thru output to power a separate amplifier
• 73 EQ with bell modes for high and low shelving sections
• Successor compressor with blend control and sidechain filter with 5 frequency options
• Link option for stereo compression with two BritStrips
• Ratio: 1.5:1 to 10:1
• Attack time: Slow, fast
• Release time: 50 to 400 ms
• Auto program-dependent
• Routing of compression and equalizer

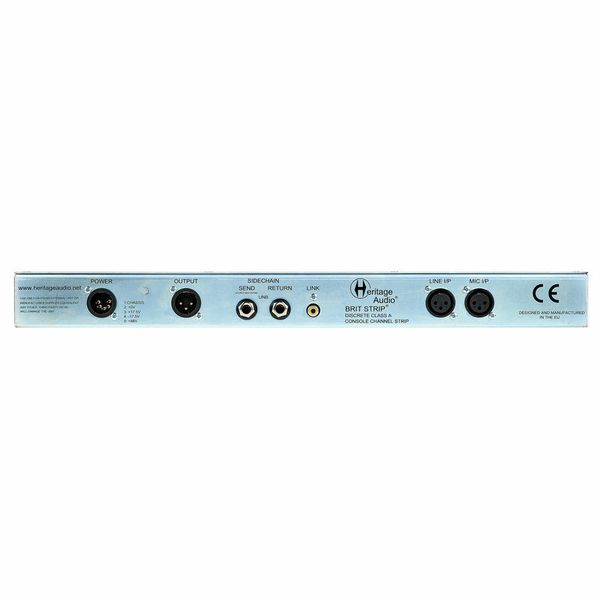

• 1 Microphone input: XLR
• 1 Line input: XLR
• 1 Line output: XLR
• DI input: 6.3 mm jack
• Thru output: 6.3 mm jack
• Sidechain send/return: 6.3 mm jack (unbalanced)
• Link connection: RCA

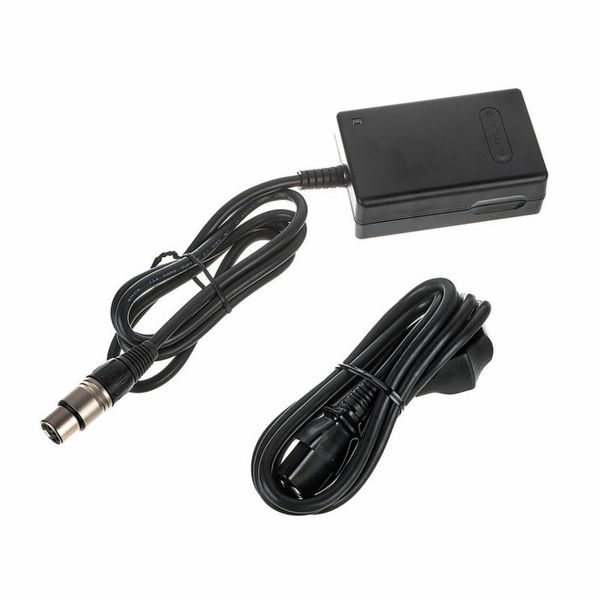

• Input for external power supply
• Format: 19" / 1 U
