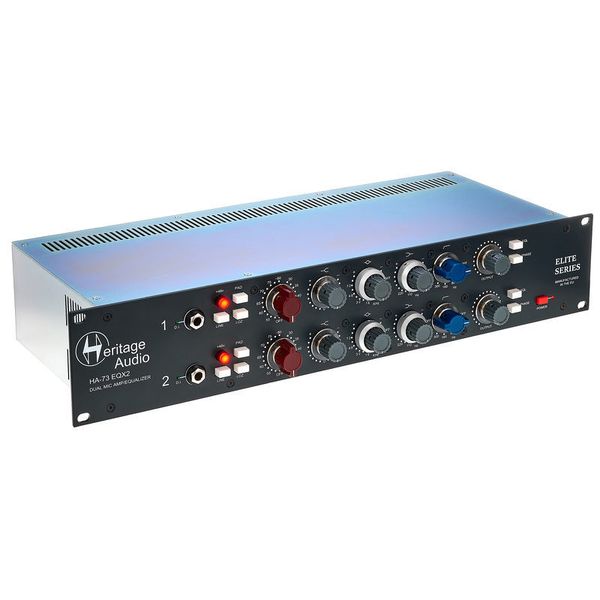

Heritage Audio HA73EQx2 Elite

Dual Channel Microphone Preamp with Equalizer

• Based on the 1073
• Hand-wound Carnhill transformers
• Completely discreet, three-stage microphone preamp
• Amplification: 80 dB microphone and 50 dB line
• -20 dB pad
• LO-Z for switching the input impedance from 1200 to 300 Ohm
• HP filter at 80 Hz
• Completely discreet 3-Band vintage EQ with induction coils
• Hi-Shelf filter at 12 kHz
• Mid-band, switchable between six operating frequencies and OFF
• Lo-shelf filter, switchable between four operating frequencies and OFF
• Coil-based high-pass filter, switchable between four operating frequencies and OFF

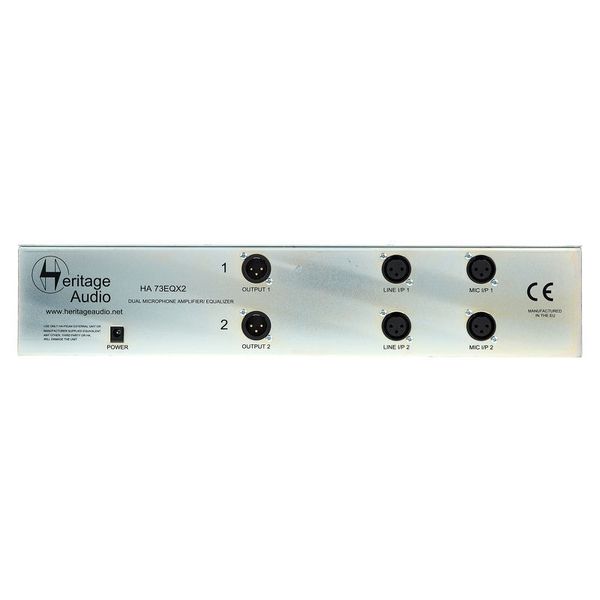

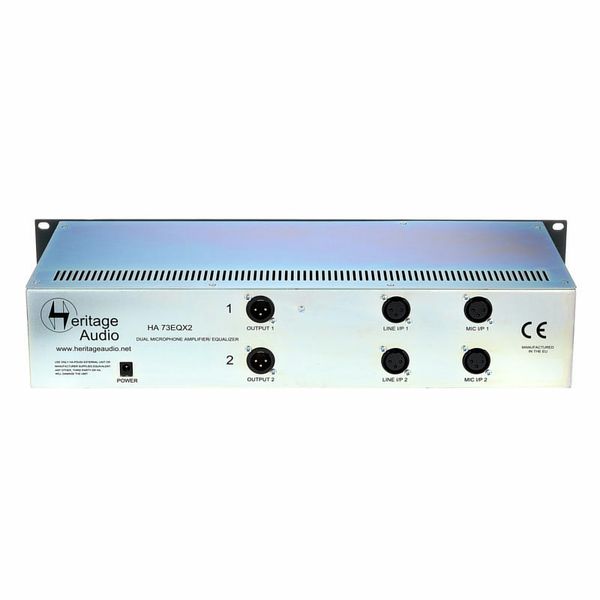

• XLR Microphone input
• XLR line input
• XLR line output
• Instrument input 6.3 mm jack
• Switchable 48V phantom power

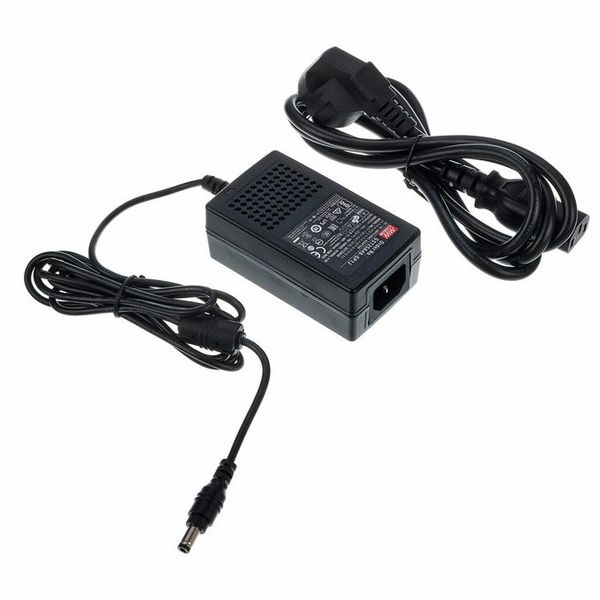

• Incl. external power supply
• Housing: 19" / 2 RU
