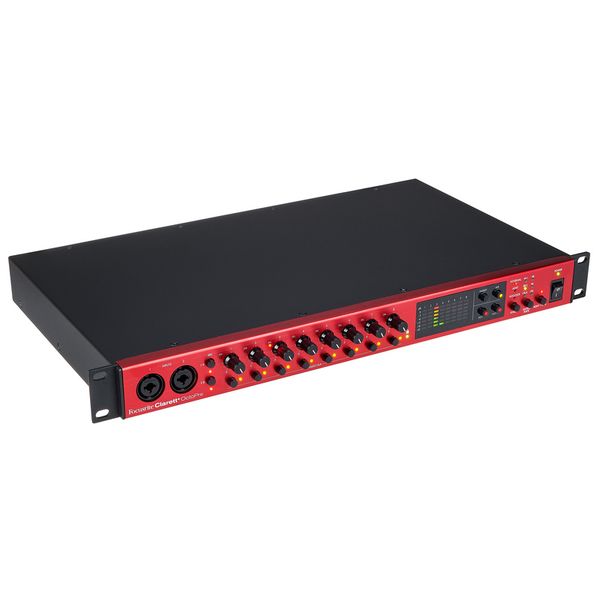

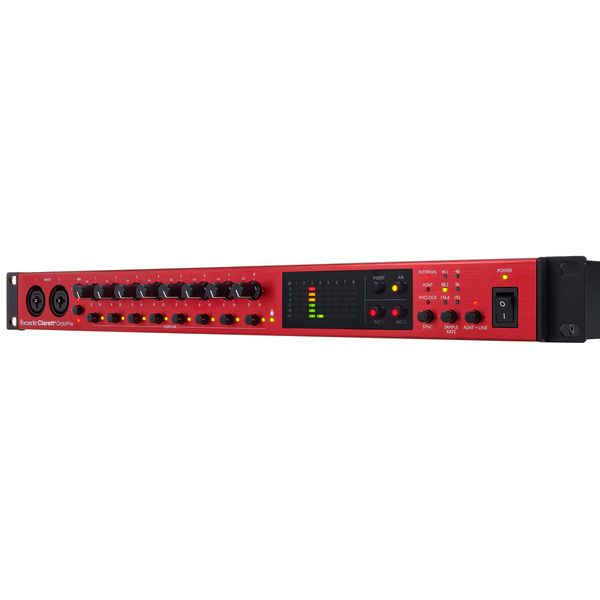

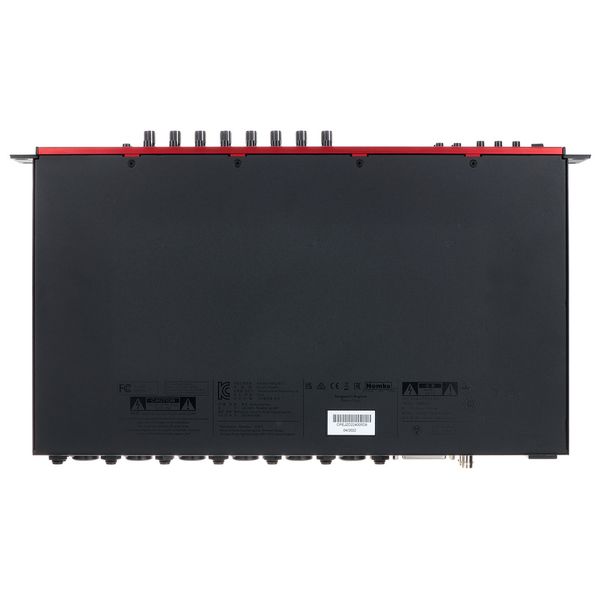

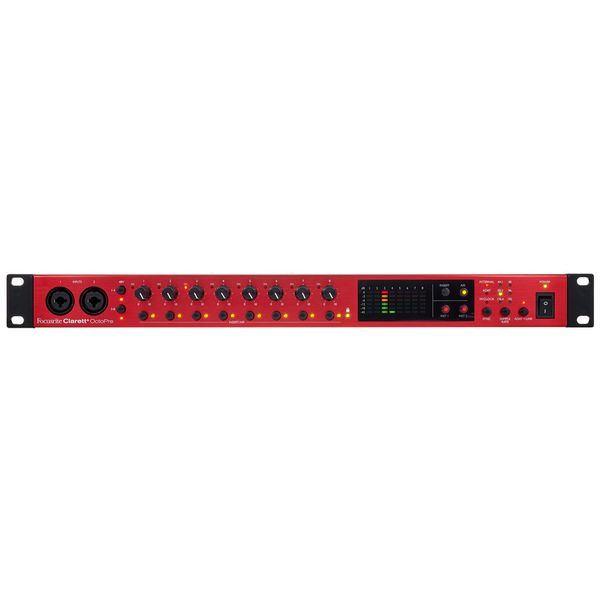

Focusrite Clarett+ OctoPre

8-Channel microphone preamplifier / line AD/DA converter

• With 2 JFET instrument inputs
• 24-bit A/D and D/A conversion with up to 192 kHz sample rate
• Fully analogue relay-controlled ‘Air�?circuitry in each preamp, replicating the classic Focusrite ISA 110
• Dynamic range of 118 dB and 129 dBu ON
• Fully balanced signal path
• Eight dedicated channel inserts
• +48V phantom power (switchable in groups 1-4 and 5-8)
• 8x LED level indicator and channel clip LEDs
• Design: 19" / 1U
• Dimensions (W x D x H): 482 x 286 x 44.5 mm
• Weight: 4.15 kg
• Includes Hitmaker Expansion Software Bundle (Ableton Live Lite) and Pro Tools Intro+

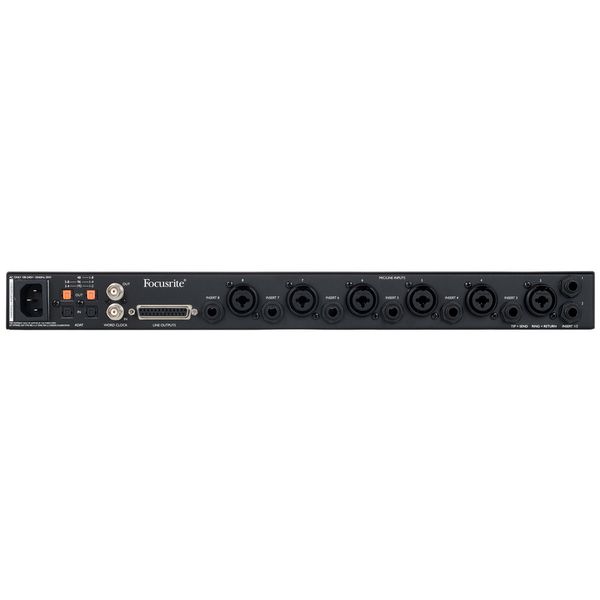

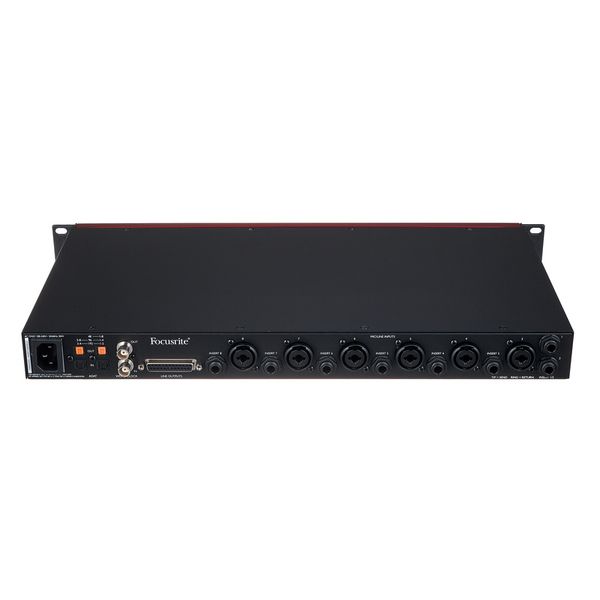

Connections:

• 2 Microphone / instrument inputs: Combo XLR/jack 6.3 mm
• 6 Microphone / line inputs: Combo XLR/jack 6.3 mm
• 8 Insert connections: 6.3 mm jack
• 1 Sub-D25 line output (8-channel)
• Word clock input and output: BNC
• 2 ADAT inputs and outputs

Hitmaker Expansion Plugins:

• Softube Marshall Silver Jubilee 2555 �?Amp Sim
• XLN Audio Addictive Keys - Virtual Keyboard Instruments
• XLN Audio Addictive Drums 2: Studio Rock �?Virtual Drum Library
• Antares Auto-Tune Access �?Vocal Tuning
• Brainworx Bx_console Focusrite SC �?Channelstrip
• Focusrite Red 2 & 3 Plug-in Suite �?EQ and Compressor
• Relab’s LX480 Essentials �?Reverb
