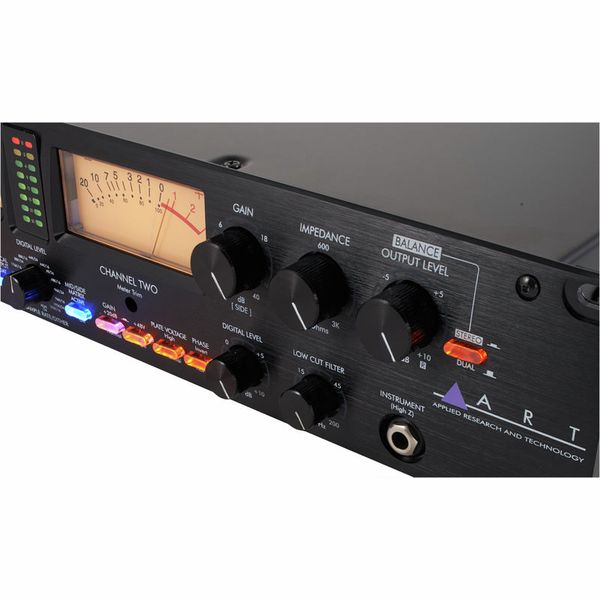

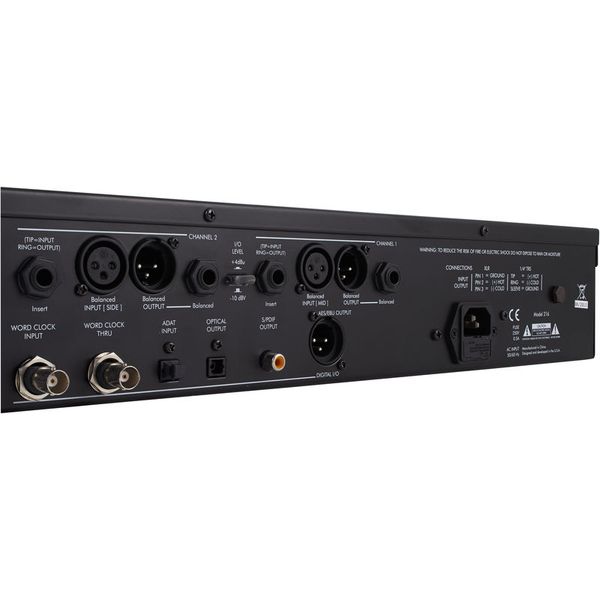

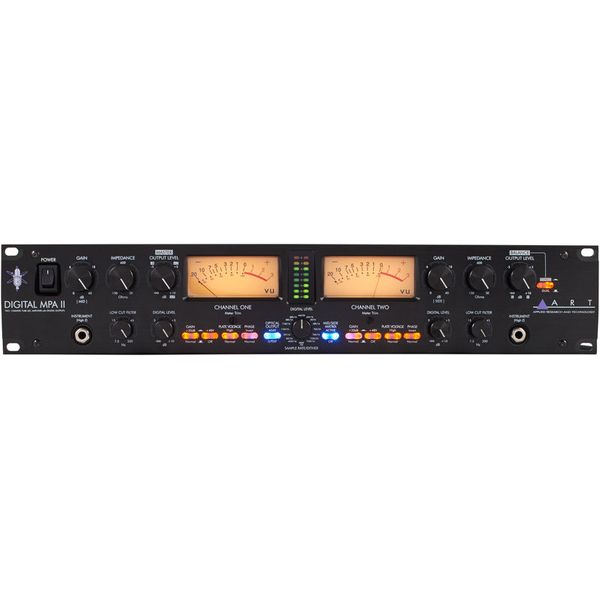

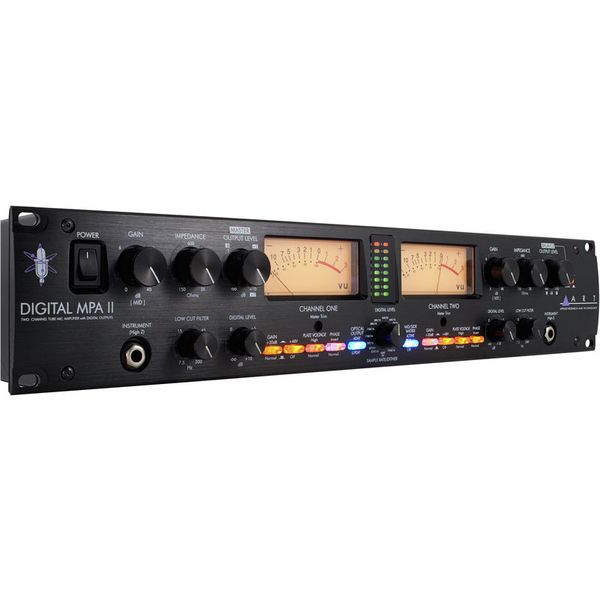

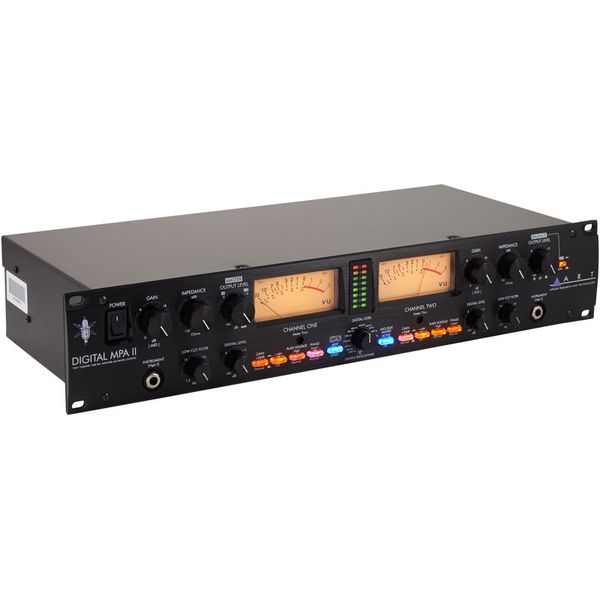

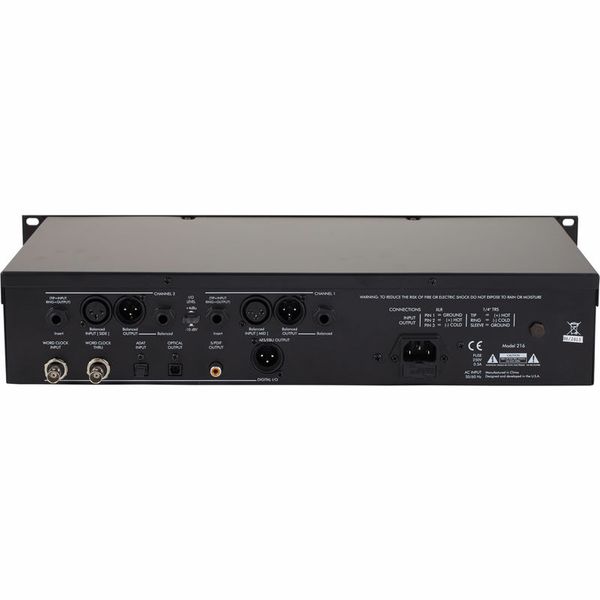

ART Digital MPA II

2-Channel Microphone Preamplifier

• With AD-converter
• ADAT Input and output
• S-PDIF- and AES/EBU outputs
• Word clock
• Internal sample rates 44.1 kHz - 192 kHz
• Dithering selectable between 16-24 Bit
• Dynamic range A/D converter> 112 dB (A)
• Discret class A
• Adjustable input impedance (150 - 2400 Ohm)
• Adjustable anode voltage
• 2x XLR Mic inputs
• 2x 6.3 mm jack instrument inputs
• Balanced XLR and jack outputs
• 48V Phantom power
• High-pass filter
• Large VU metre
• Backlit switches
• Supports M / S matrix miking
• Design: 19" / 2U
• Dimensions (H x W x D): 88 x 482 x 222 mm
• Weight: 4.7 kg
