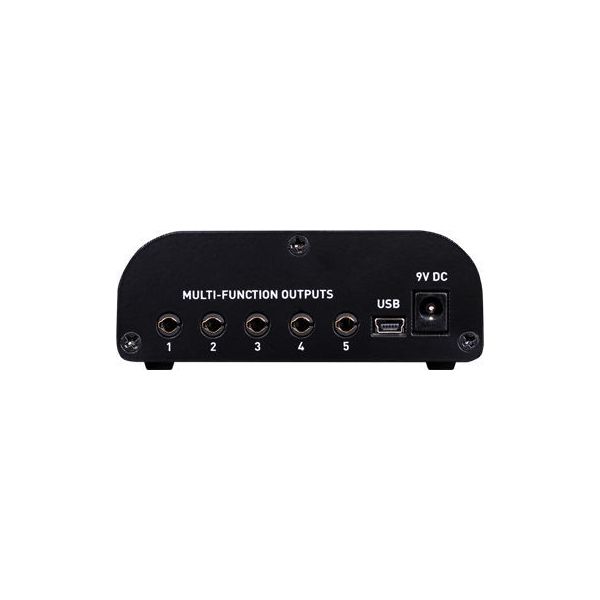

Source Audio Neuro Hub v1

MIDI Interface / Extension for Source Audio Products

• Manages up to 5 Source Audio One Series and Soundblox 2 pedals simultaneously
• 128 Multi-Pedal "Scenes" Presets can be stored
• Presets MIDI Program Change commands and via USB port via Mac, PC and iPad (with separately available Camera Kit) editable
• Compatible (except Scenes function) with Source Audio Soundblox 1 and Soundblox Pro Pedals
• Status LEDs
• Control buttons for Recall Last / Copy and Scan Devices / Save Scene
• Standard 5-pin MIDI IN and OUT / THRU
• Passive expression input and hot hand-held input
• 6.3 mm stereo
• 10k-50k ohms
• Linear Expression pedal input
• Mini USB port
• 5x 4-pin 3.5 mini-jack multi-function outputs
• 3.5 mm sensor input for hot hand
• Power supply with 9V DC power supply 2.1 mm x 5.5 mm Hollow plug, polarity (-) inside (included)
• Current consumption: 40 mA (up to 80 mA with Hot hand accessories)
• Dimensions (W x L x H): 96 x 53 x 35 mm
• Weight: 170 g
• System requirements: Windows Vista, 7, 8, 8.1 or 10; Mac 10.7, 10.8, 10.9, 10.10, or 10.11
