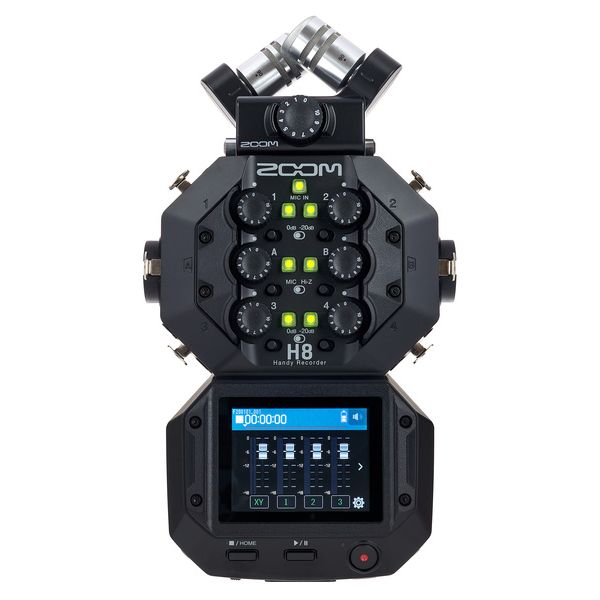

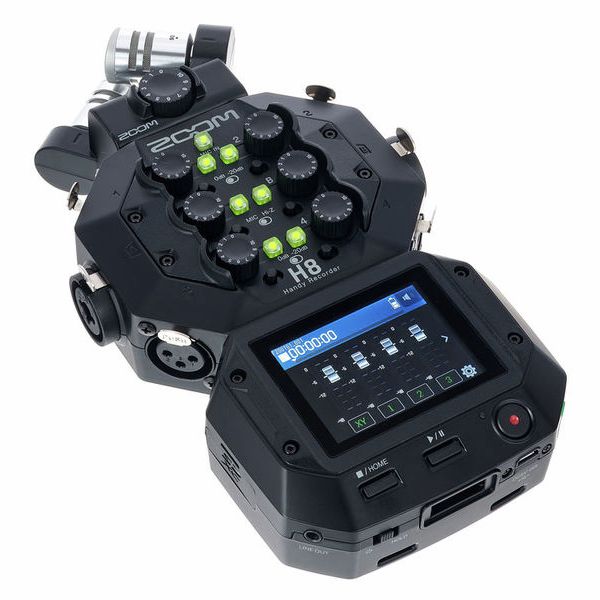

Zoom H8

Portable 12-Track Audio Recorder

• Maximum recording quality: 24 bit / 96 kHz

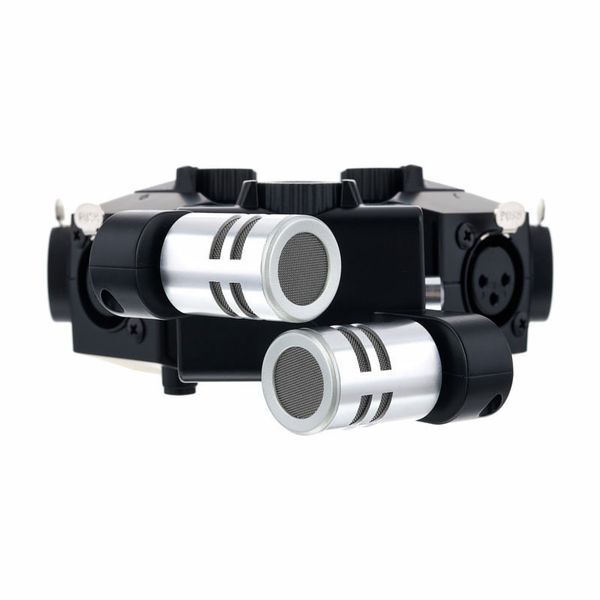

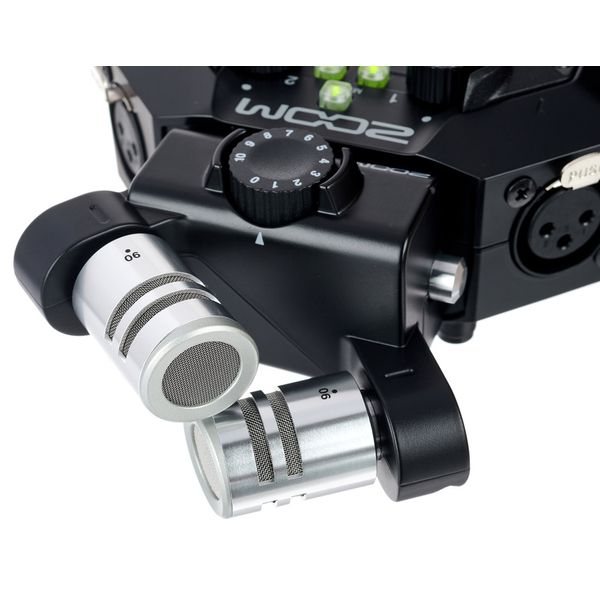

• X/Y-Microphone capsule XYH-6 (included)
• Exchangeable clip-on microphones
• Ambisonic capsule optionally available (not included)

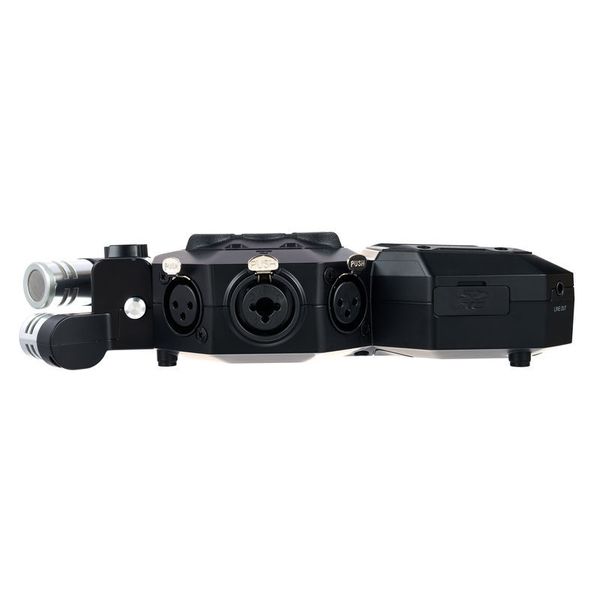

• 4 x Mic inputs: XLR

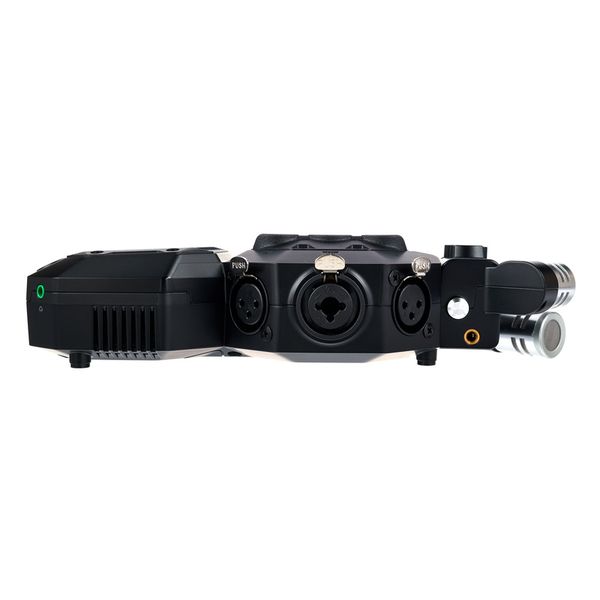

• 2 x Mic / Line / Instrument inputs: XLR / TRS combo socket
• Phantom power for the 6 internal XLR inputs: +12V/+24V/+48V

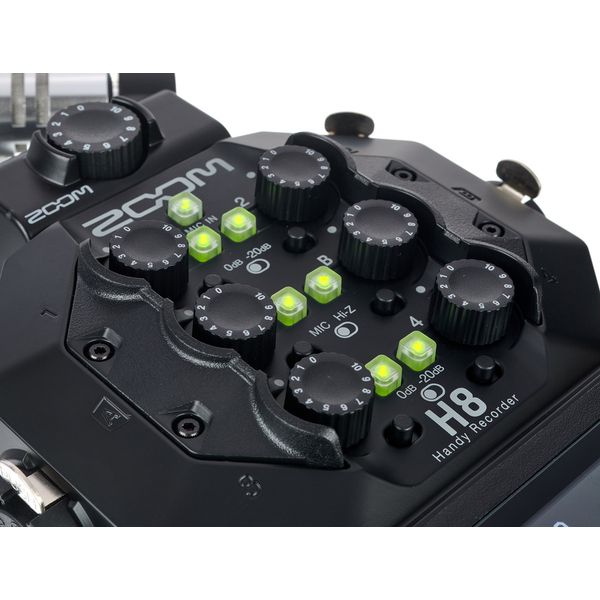

• Gain controls and -20 dB pads in each input
• Mic / line inputs expandable by module

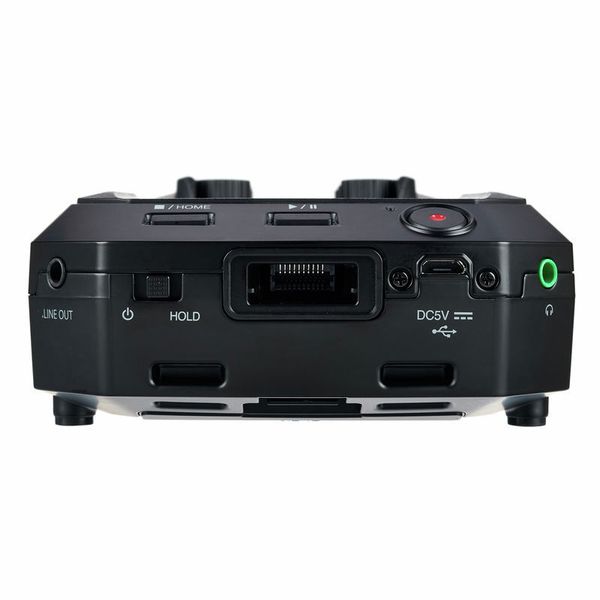

• USB port (Micro B) for use as a 12-channel and stereo audio interface for PC / Mac / iPad
• Recording formats WAV, BWF and MP3
• Supports SD / SDHC / SDXC cards up to 512 GB

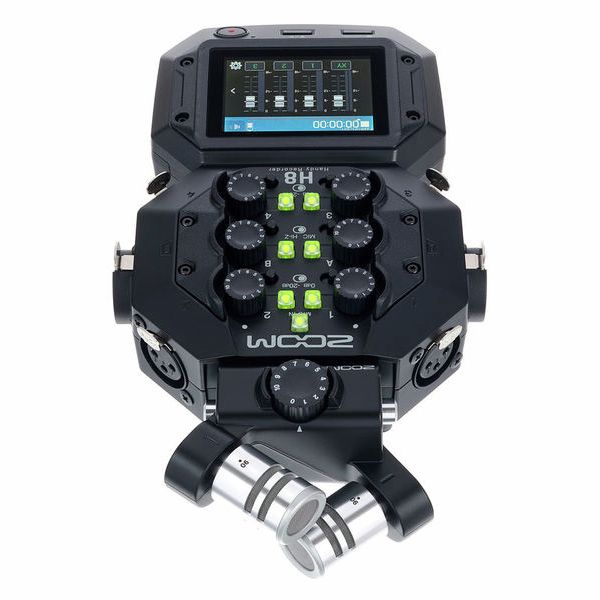

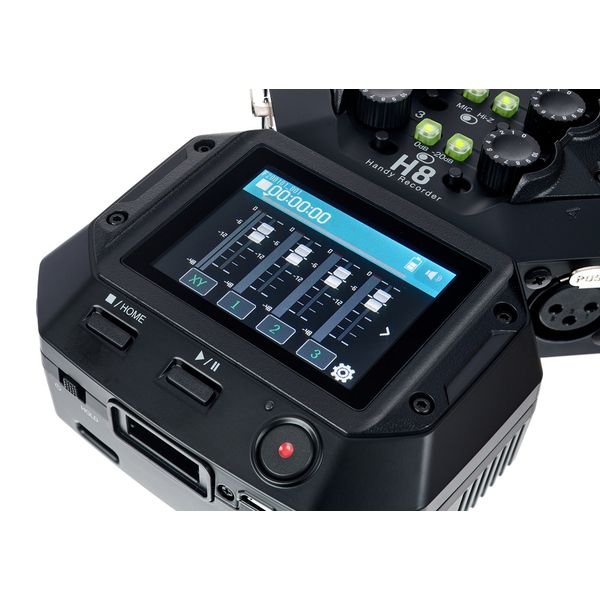

• Colour 2.4" LCD touchscreen (320x240) with optimizsed user interface for field recording, music recordings and podcasting
• Built-in speaker
• Built-in effects and chromatic tuner
• Stereo line output: 3.5 mm jack
• Stereo headphone output: 3.5 mm jack
• Power supply: 4x AA batteries (not included) or USB
• Dimensions of the H8 without microphone (W x D x H): 116.4 x 163.3 x 48.6 mm
• XYH-6 dimensions (W x D x H): 78.9 x 60.2 x 45.2 mm
• Weight of the H8 without microphone: 354 g
• Weight of the XYH-6: 130 g
• Includes XYH-6 microphone capsule and a quick guide
