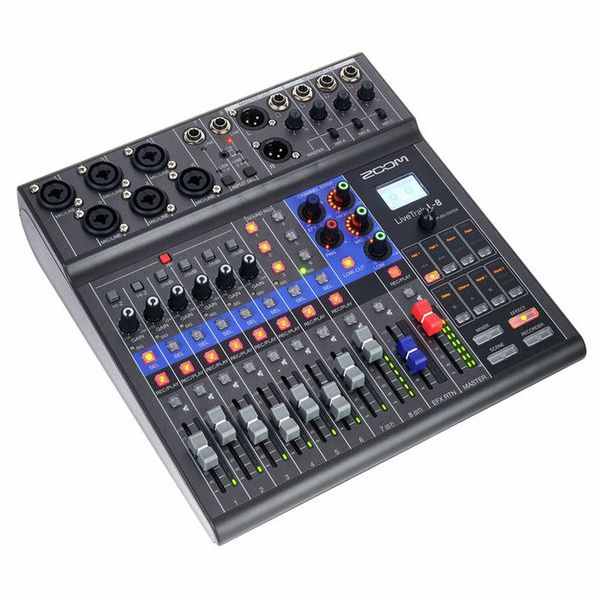

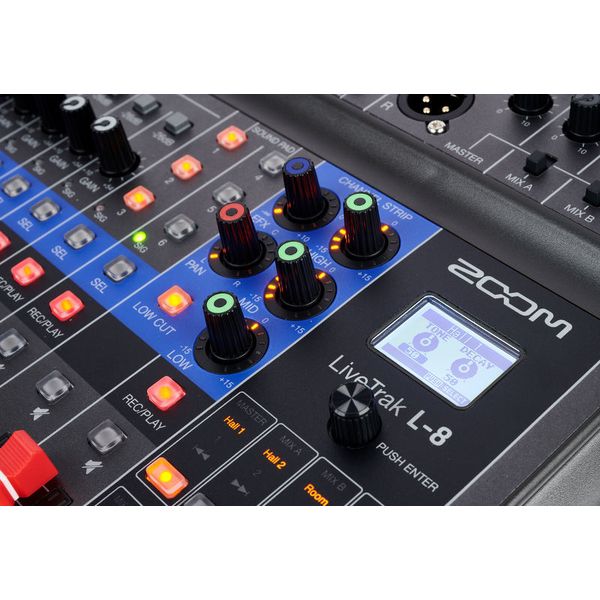

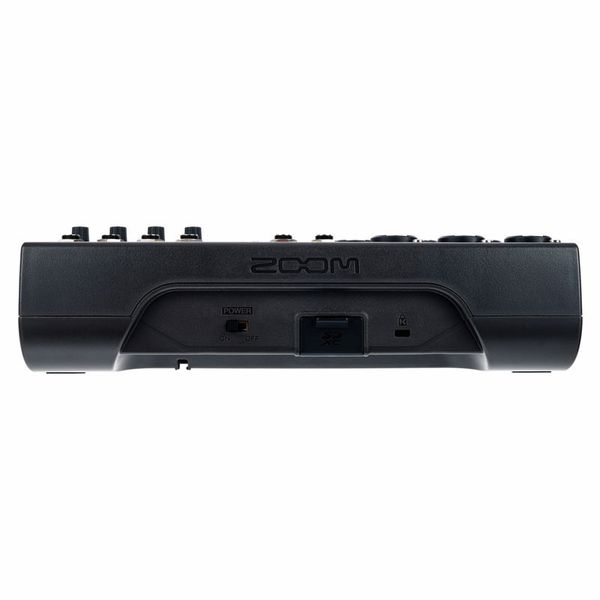

Zoom LiveTrak L-8

Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Compact Podcast Mixer, Audio Interface and Recorder

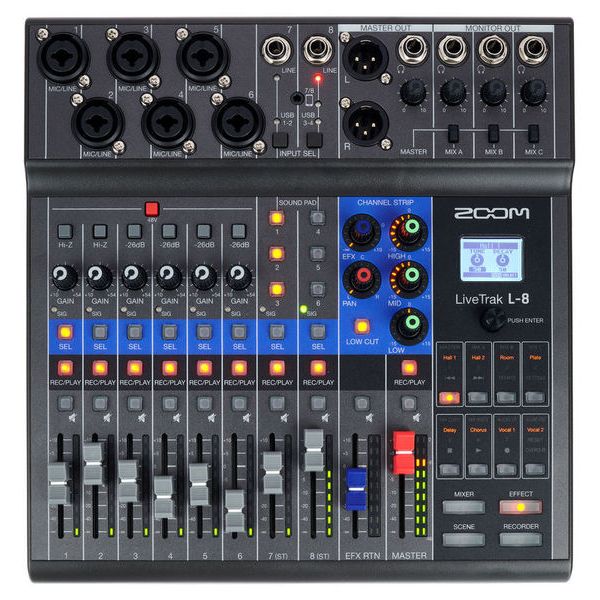

    • 8-Channel mixer

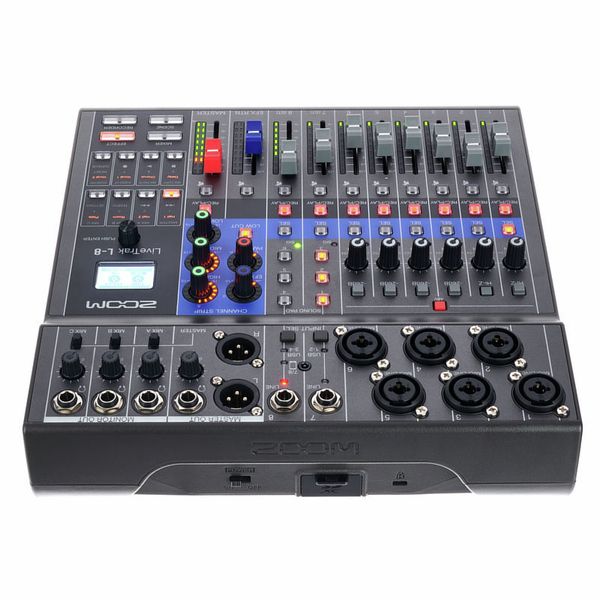

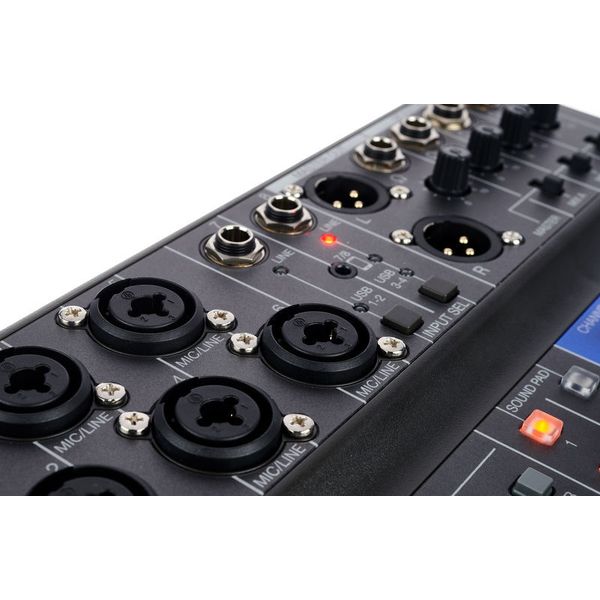

    • Channels 1-2 for microphone, line and instrument signals - XLR / TRS combo socket
    • Channels 3-6 for microphone and line signals - XLR / TRS combo socket
    • Channels 7-8 for line signals - 6.3 mm jack
    • USB stereo playback and telephone playback - 3.5 mm TRRS
    • Mix-minus function for preventing audio feedback from dial-in guests

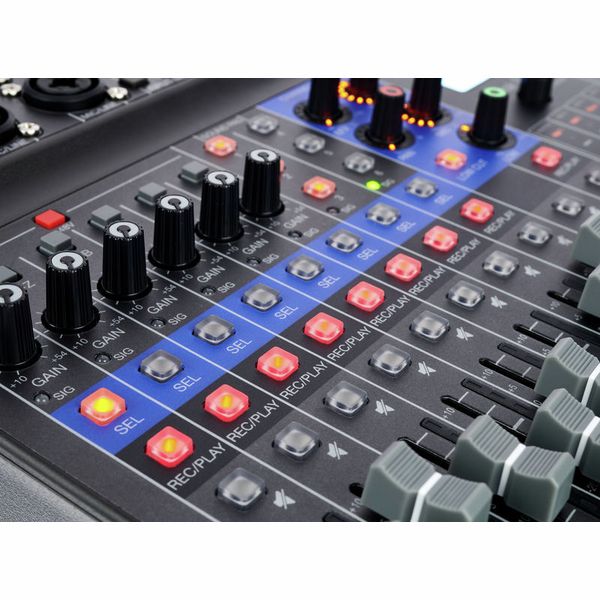

    • Per channel: 3-Band EQ, low-cut filter, panorama control, effects loop
    • 48 V Phantom power switchable
    • Effects section with 8 different programs
    • 6 Assignable sound pads for jingles, intros, outros and sound effects
    • 4 Headphone outputs (6.3 mm TRS) for main mix and 3 monitor mixes
    • Balanced stereo output (XLR)
    • 7 Scene memory slots for mixes

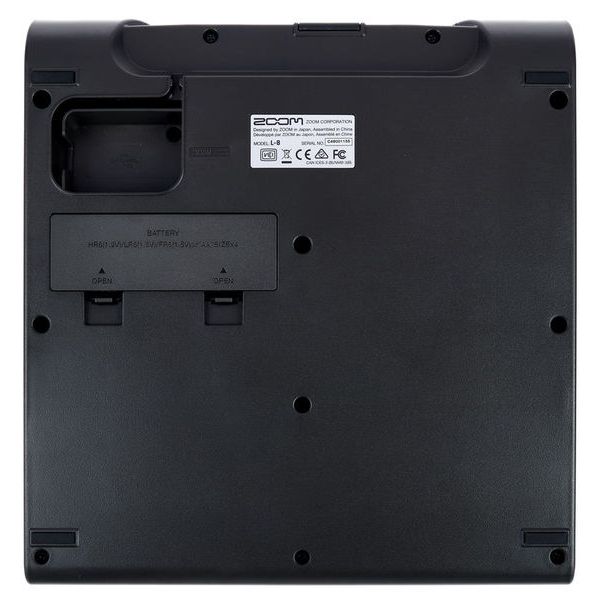

    • Battery operation possible (4x AA Mignon, not included in the delivery)
    • Record up to 12 tracks on SD card or computer (USB) with a maximum of 24-bit / 96 kHz
    • Simultaneously recording on SD card and computer is possible with a maximum of 24-bit / 48 kHz
    • Integrated USB audio interface with 12 inputs and 4 outputs
    • USB 2.0
    • System requirements: Windows 7 or later, macOS 10.12 or later
    • Dimensions (W x D x H): 282 x 268 x 74 mm
    • Weight: 1.56 kg

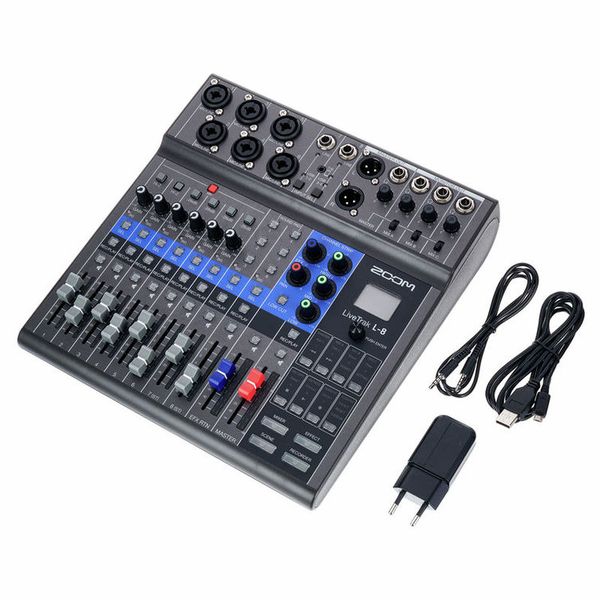

    • Includes 3.5 mm TRRS cable, USB cable and AD-17 power adapter
    • Suitable case: Art.502745 (not included in the delivery)
    • Suitable case: Art.498148 (not included in the delivery)
    • Available sinceDecember 2019
    • Item number477037
    • Sales Unit1 piece(s)
    • Number Of Tracks12
    • Simultaneous Recording: Amount Of Tracks12
    • EffectsYes
    • Storage MediumSD, USB
    • Phantom powerYes
    • XLR Connectors6
    • Jack Connectors8
    • RCA ConnectorsNo
    • MIDI InterfaceNone
    • USB connectionYes
    • Digital ConnectionsNone
    • Miscellaneous ConnectorsLineout
    • Headphone connectionYes
    • Recording / Playback Channels12x4
    • User InterfacePhysical
    • Number of Mic Inputs6

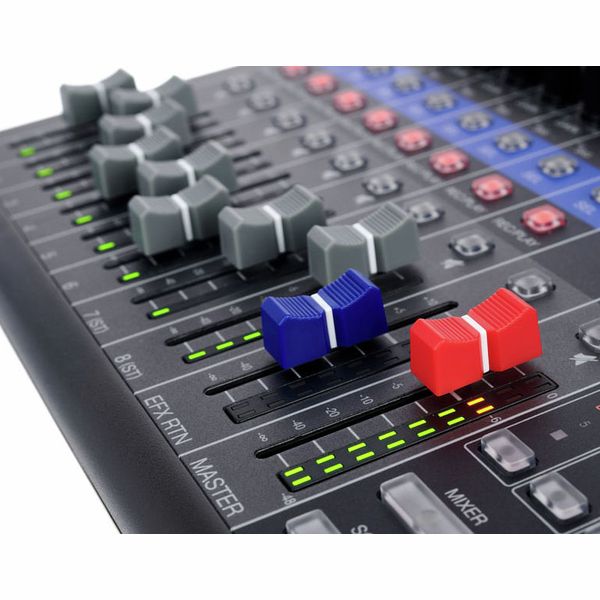

    • Number of faders10
    • DSP Input channels8
    • Number of Line Inputs8
    • DSP Output Channels4
    • Instrument Inputs2
    • Busses4
    • Number of Line Outs2
    • Mic Preamp6
    • Headphone Outs4
    • Mono-Line Input6
    • Stereo-Line Input2
    • Number of S/PDIF Connectors0
    • Number of ADAT Connectors0
    • Physical outputs6
    • Digital stagebox connectionNo
    • Numer of AES/EBU Connectors0
    • Ethernet0
    • Number of MADI Connectors0
    • Word ClockNo
    • HotspotNo
    • Multitrack RecordYes
    • Other ConnectorsNo
    • Soundcard interfaceMicro Usb Type B
    • Options6 Sound Pads
    • integratated Player/Rec via USB/SDMultitrack
    • Max. sample rate (kHz)96 kHz
    • Recorder FormatWAV
    • Max. resolution in bit24 bit
    • USB Bus-PoweredYes
    • RTANo
    • Incl. power supplyYes
    • FX Processor1
    • USB Version2.0
    • 31 Band EQ0
    • Width in mm282 mm
    • Matrix0
    • Depth in mm268 mm
    • Height in mm74 mm
    • DCA/VCA Groups0
    • Midi ConnectorNo
    • Sample rate48 kHz
    • Separate Personal Monitor systemNo
    • Expansion Card slots0
    • Digital ADATNo
    • Included in delivery3.5mm TRRS cable, USB cable, AD-17 Power Supply, Quick Start Manual
    • Digital SPDIFNo
    • Digital AES3/ASESEBNo
    • Digital MADINo
    • Zero latency monitoringYes
    • Connection FormatUSB port Micro B
    • Digital DanteNo
    • 110V capableYes
    • CaseNo
    • 19" RackmountNo
    • Height74 mm
    • Width282 mm
    • Depth268 mm
    • Weight1,5 kg
