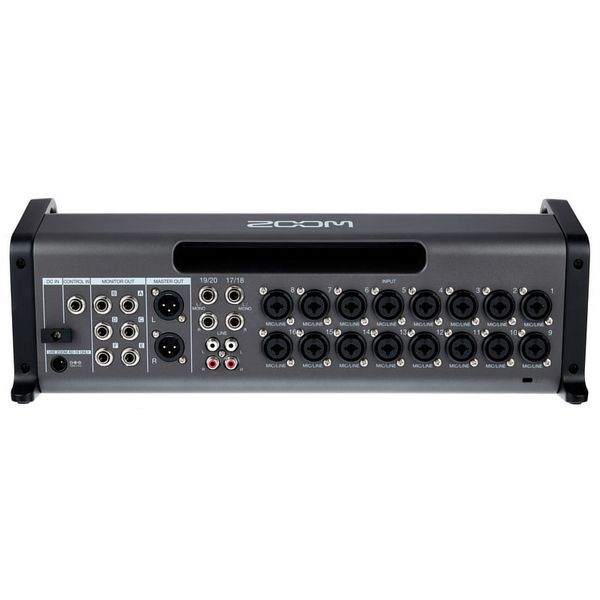

Zoom LiveTrak L-20R

Quantity
ADD TO CART
BUY IT NOW
  • Detail

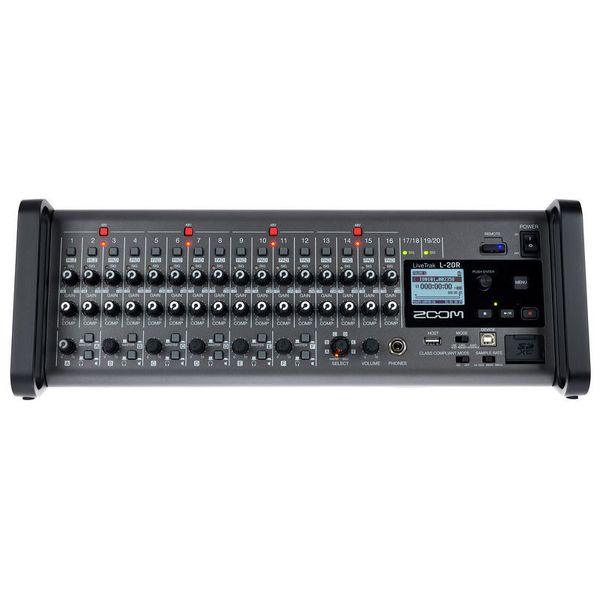

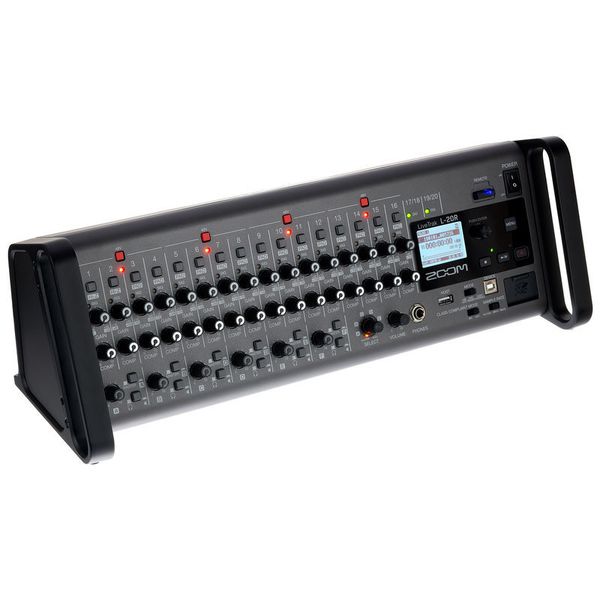

    Rack-Mountable Digital Mixer, Audio Interface and Recorder

    • 20 Input channels: 16 Mono- and 2 stereo channels

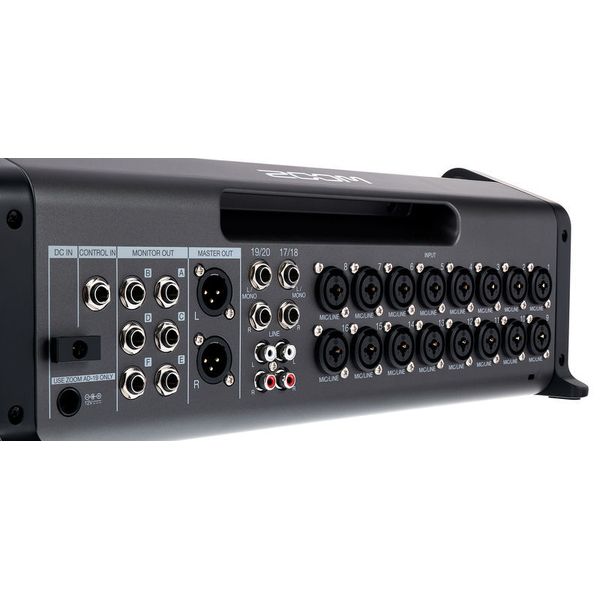

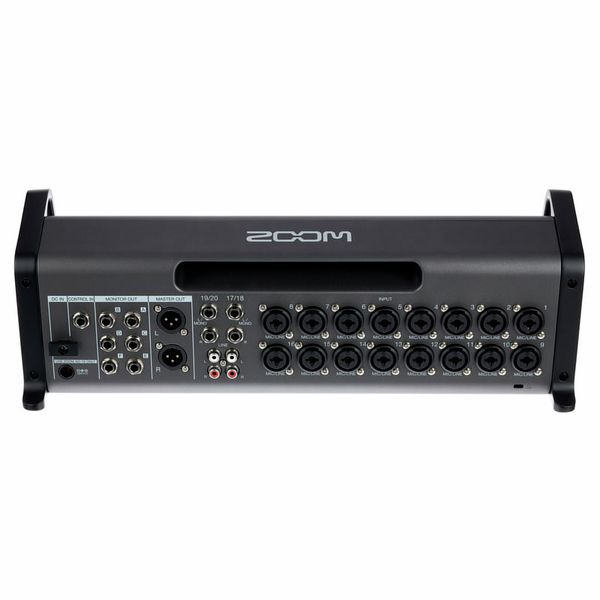

    • 16 XLR/TRS combo jacks
    • Stereo channels with 2x 6.3 mm TS phone/RCA pin

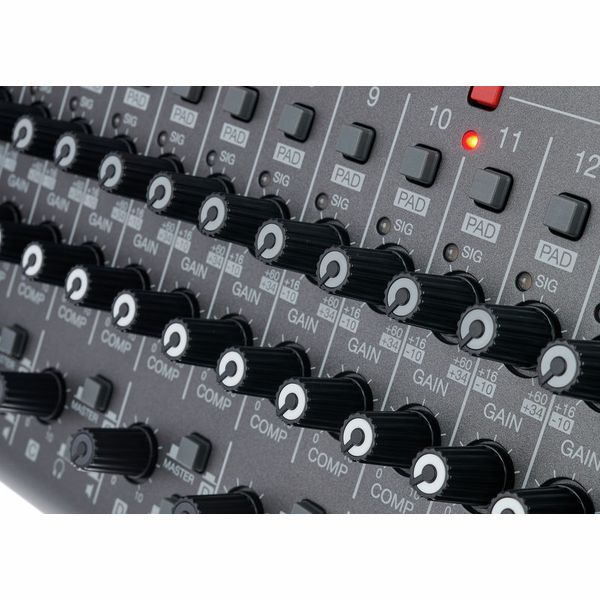

    • Per channel: Gain control, 3-band equalizer, panorama, compressor and 2 effects busses
    • Hi-Z connections for channels 1-2
    • Switchable 26 dB pad for channels 3 to 16
    • Low cut per channel, adjustable between 40 - 600 Hz
    • 6 Configurable monitor paths (6.3 mm jack)
    • Monitor outputs can be configured as a headphone output or a normal line level output
    • +48 V phantom power, switchable in 4 groups
    • 20 Built-in and editable chorus-, delay- and reverb effects
    • USB audio interface with 22 inputs and 4 outputs

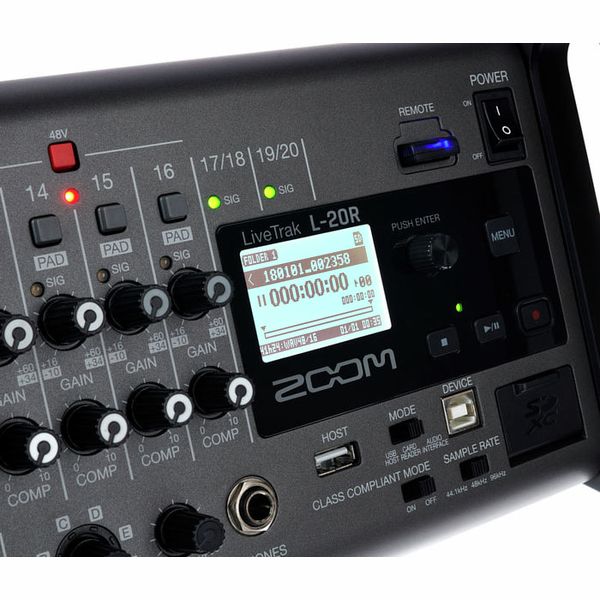

    • Audio recording with up to 24-bit/96 kHz to an SD card (max. 512 GB)
    • Memory function for up to 9 mixer scenes
    • Compatible with the Remote Mixer app for iPad
    • Dimensions (W x D x H): 438 x 158.2 x 151.7 mm
    • Weight: 2.49 kg

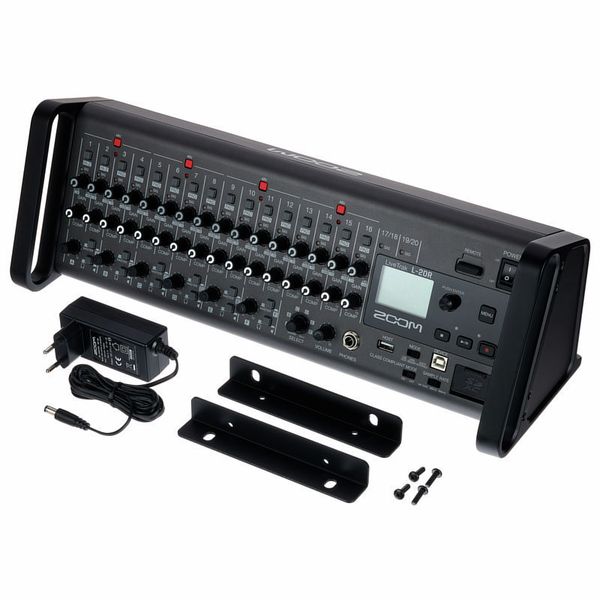

    • Includes an AD-19 power supply, BTA-1 Bluetooth adapter, rack ears, and a quick start guide
    • Suitable case available under Article Nr 174159 (not included)
    • Available sinceAugust 2019
    • Item number467749
    • Sales Unit1 piece(s)
    • Number Of Tracks22
    • Simultaneous Recording: Amount Of Tracks22
    • EffectsYes
    • Phantom powerYes
    • XLR Connectors16
    • Jack Connectors4
    • RCA ConnectorsYes
    • MIDI InterfaceNone
    • USB connectionYes
    • Digital ConnectionsUSB
    • Miscellaneous ConnectorsFoot Switch
    • Headphone connectionYes
    • Recording / Playback Channels22x4
    • User Interfaceremote
    • Number of faders0
    • Number of Mic Inputs16
    • DSP Input channels20
    • Number of Line Inputs20
    • DSP Output Channels8
    • Instrument Inputs2
    • Number of Line Outs8
    • Busses6
    • Mic Preamp16
    • Headphone Outs7
    • Mono-Line Input16
    • Stereo-Line Input2
    • Number of S/PDIF Connectors0
    • Physical outputs8
    • Number of ADAT Connectors0
    • Numer of AES/EBU Connectors0
    • Digital stagebox connectionNo
    • Ethernet0
    • Number of MADI Connectors0
    • Word Clock0
    • HotspotBluetooth
    • Multitrack RecordYes
    • Other ConnectorsUSB
    • Soundcard interfaceUSB-B
    • OptionsNone
    • integratated Player/Rec via USB/SDMultitrack
    • Max. sample rate (kHz)96 kHz
    • Recorder FormatWAV
    • Max. resolution in bit24 bit
    • RTANo
    • Incl. power supplyYes
    • FX Processor2
    • 31 Band EQ0
    • USB Version2.0
    • Width in mm438 mm
    • Matrix0
    • Depth in mm158,2 mm
    • Height in mm151,7 mm
    • DCA/VCA Groups0
    • Midi ConnectorNo
    • Sample rate96 kHz
    • Separate Personal Monitor systemNo
    • Expansion Card slots0
    • Digital ADATNo
    • Included in deliveryPower adapter (AD-19), BTA-1 Bluetooth adapter, rack bracket, quick start guide
    • Digital SPDIFNo
    • Digital AES3/ASESEBNo
    • Digital MADINo
    • Zero latency monitoringYes
    • Connection FormatUSB port Type B, Type A
    • Digital DanteNo
    • 110V capableYes
    • CaseNo
    • 19" RackmountYes
    • Height152 mm
    • Width438 mm
    • Depth158 mm
    • Weight2,5 kg
