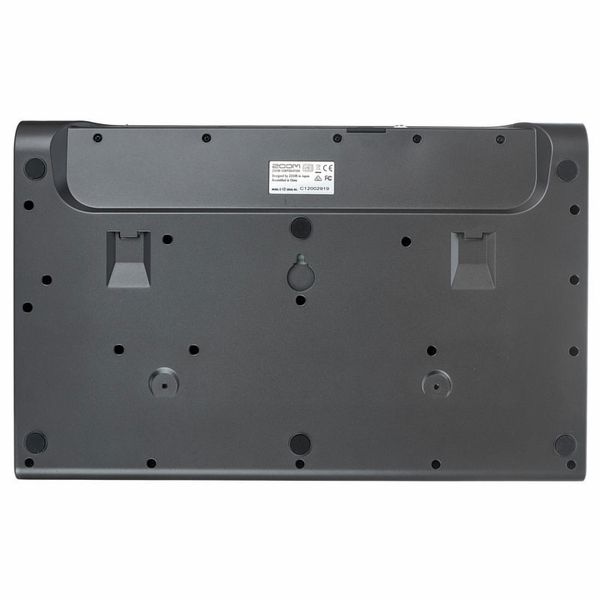

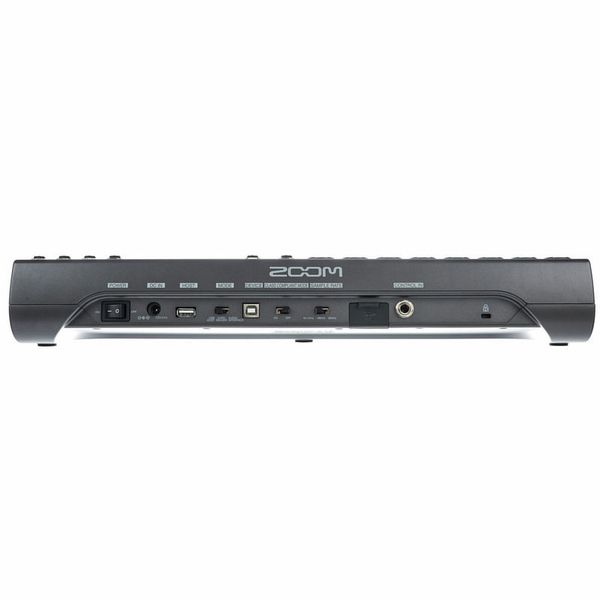

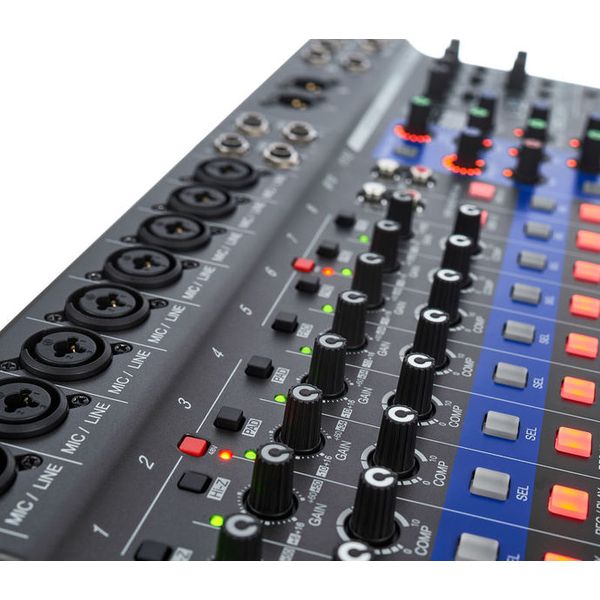

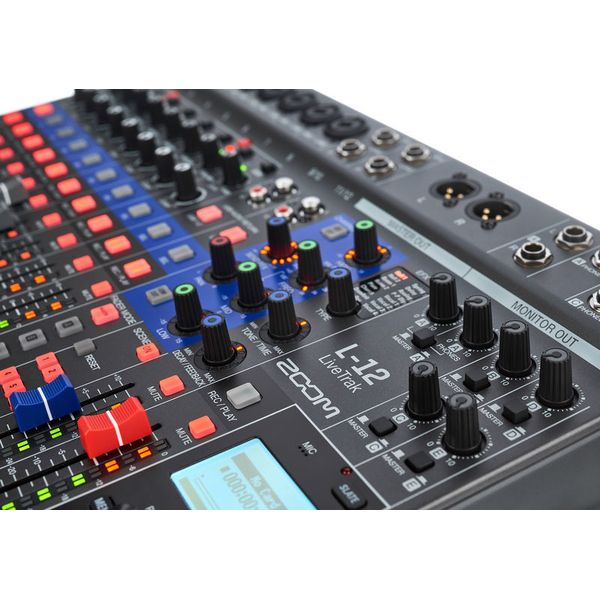

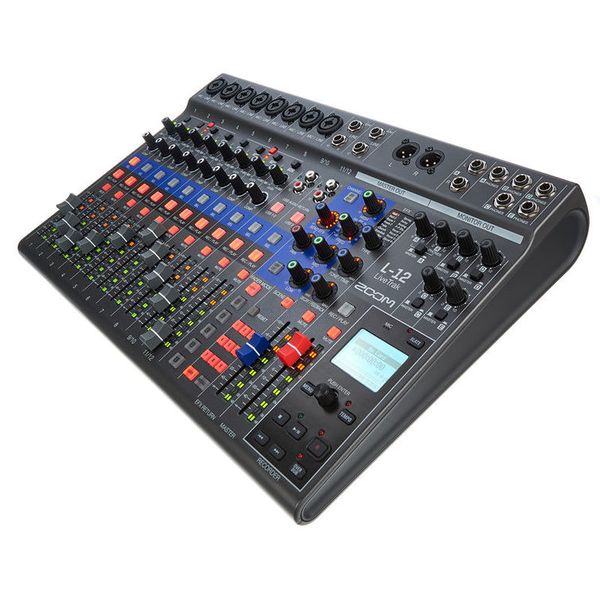

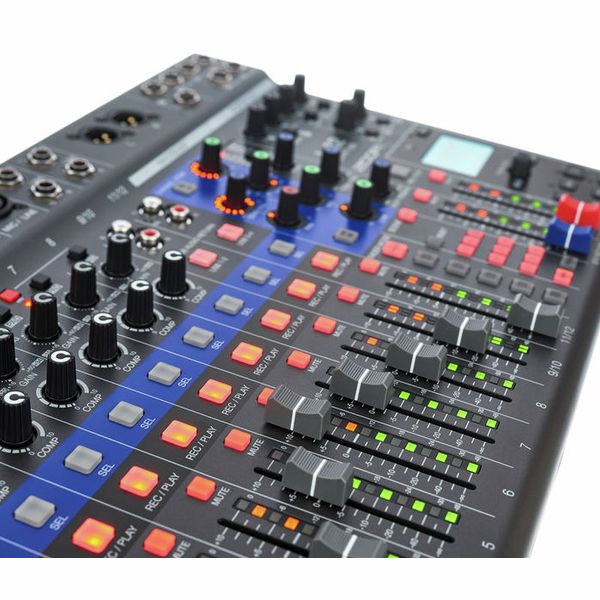

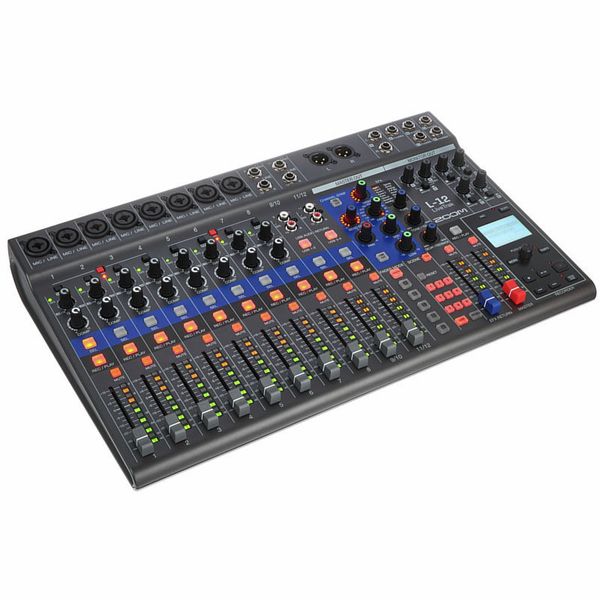

Zoom LiveTrak L-12

Combined Mixer, Audio Interface and Recorder

• 12 Discrete channels (8 mono plus 2 stereo) with XLR and 6.3 mm jack
• Simultaneous recording of 14 tracks
• Playback of 12 tracks
• USB audio interface with 24 inputs and 4 outputs
• Sampling frequency: 44.1 / 48/96 kHz
• Five powerful headphone outputs with individually adjustable monitor mixes
• Expand your live stream and recording with backing and click tracks from the computer
• Line inputs in RCA and TS jack format
• 48 V phantom power: channels 1 to 4 and 5 to 8
• Hi-Z Connectors (channels 1-2)
• 26 dB Pad (channels 3 to 8)
• Integrated compressor controller: channels 1 to 8
• Master mute button
• High-pass regulator
• Adjustable stereo panorama
• Master and monitor outputs A-E
• Memory function for up to nine mixer scenes
• 16 Internal, editable chorus, delay and reverb effects
• Built-in talkback microphone
• Class-compliant operation (for iOS compatibility)
• SD-card slot
• Built-in metronome
• Ability to automatically start and stop recording
• Project protection function
• Import and export of projects via the USB 2.0 interface
• Latency compensation for A-D conversion
• Compatible functions for the ZOOM FS01 footswitch

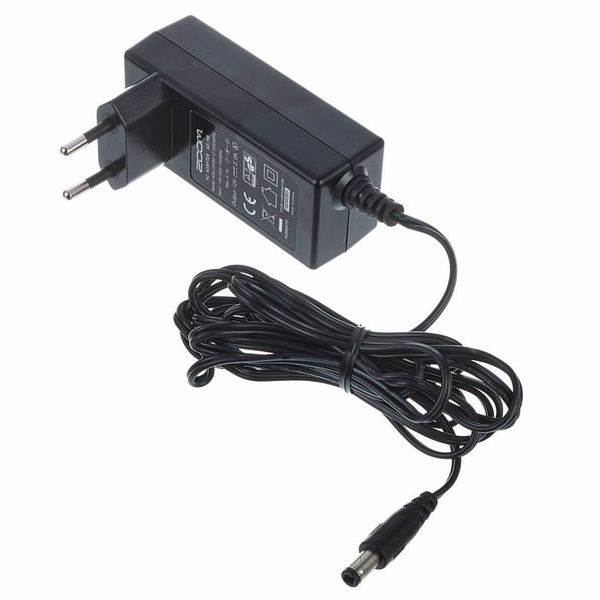

• Includes power supply (AD-19), USB 2.0 cable and quick start guide
• Dimensions (W x D x H): 445 x 282 x 70.5 mm
• Weight. 2.53 kg
• Optional case 492951 (not included)
