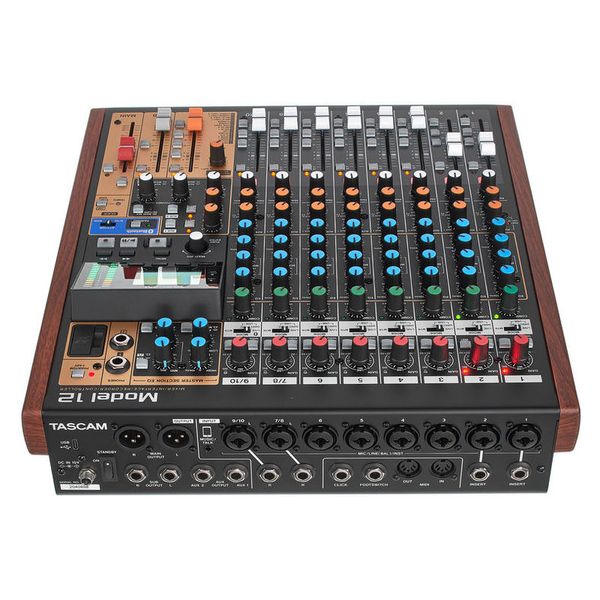

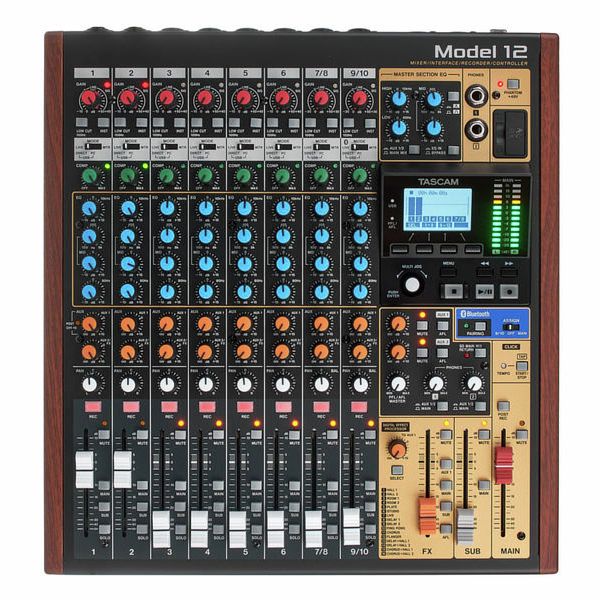

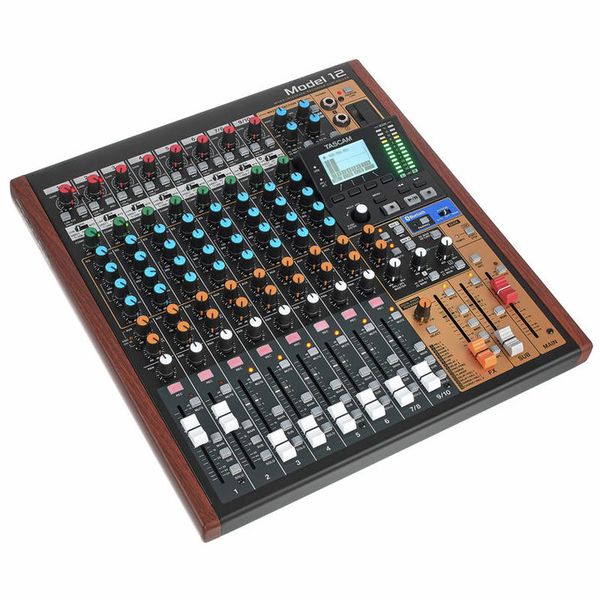

Tascam Model 12

Mixer

• Ten-channel mixer
• With multitrack recorder, audio interface and DAW control functions
• 12-track recording in WAV/BWF format on SD/SDHC/SDXC cards up to 512 GB possible
• 44.1 - 48 kHz
• 16/24-bit
• One-button compressor for all input channels
• Switchable low-cut
• 3-band EQ with adjustable mids for all mono channels
• Master EQ
• Overdub recording
• Punch-in/-out
• Built-in audio interface for 12 channels (ten inputs plus stereo sum)
• LC display
• 12-segment LED level meter
• Built-in effects processor
• Switchable phantom power +48 V

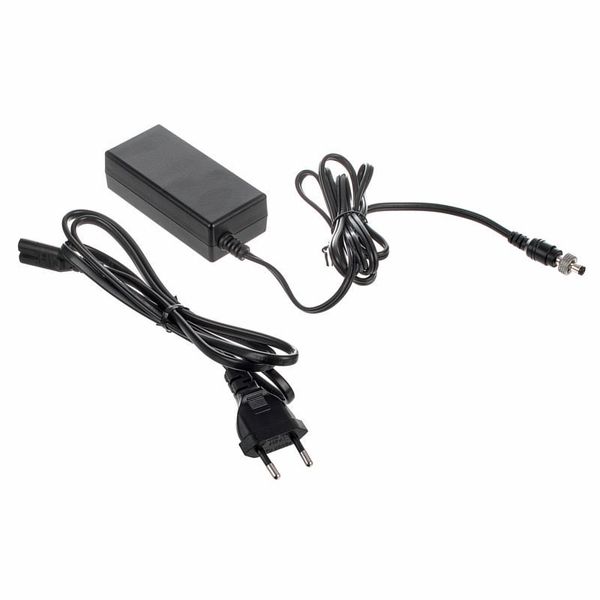

• Includes power supply
• Dimensions (W x H x D): 343 x 99 x 360 mm
• Weight: 4.3 kg
• Suitable protective cover: Art. 497194 (not included)
• Suitable case: Art. 504823 (not included)

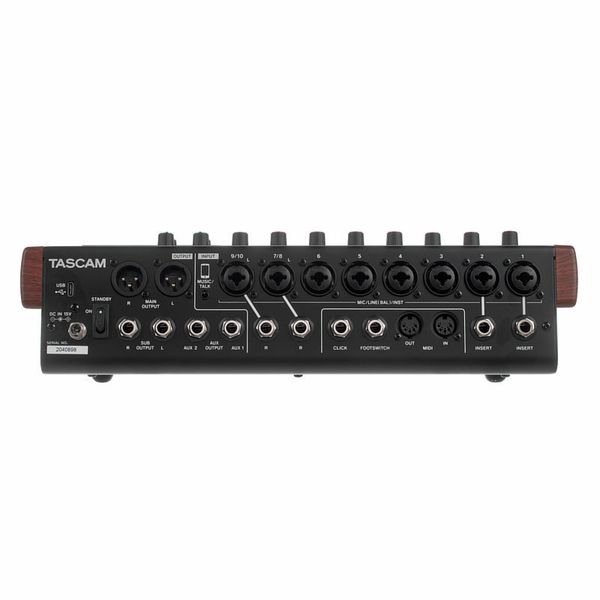

Connectors:

• Eight microphone/line input combo XLR/6.3 mm jack (channels 1-6, 7, 9 can be used as instrument inputs)
• Two line outputs: XLR
• Two sub outputs: 6.3 mm jack
• Two AUX outputs: 6.3 mm jack
• Two inserts: 6.3 mm jack (channels 1+2)
• Footswitch input: 6.3 mm jack
• 6.3 mm jack click output with tap tempo function
• Two stereo headphone outputs: 6.3 mm jack
• MIDI input and output
• USB
