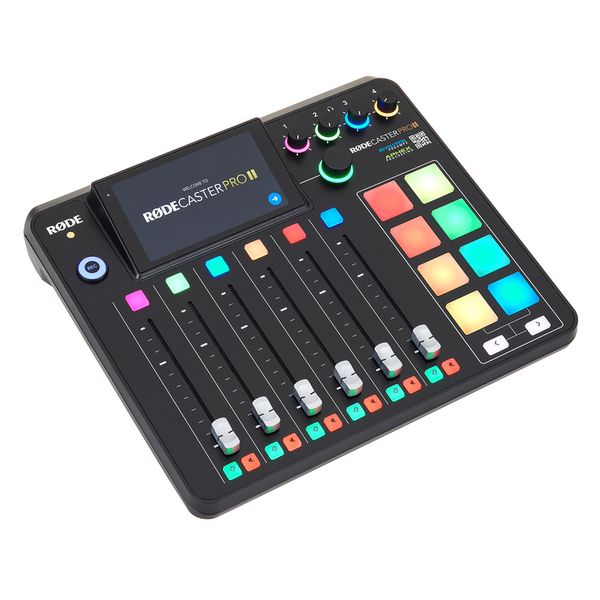

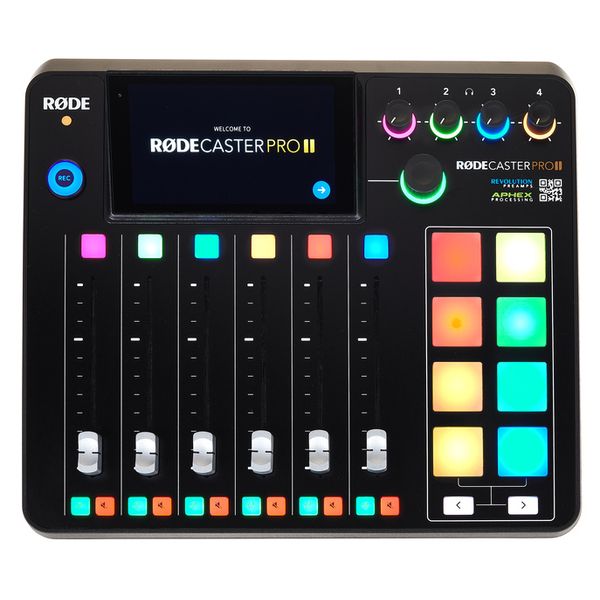

Designed specifically for podcasters, streamers, musicians and content creators

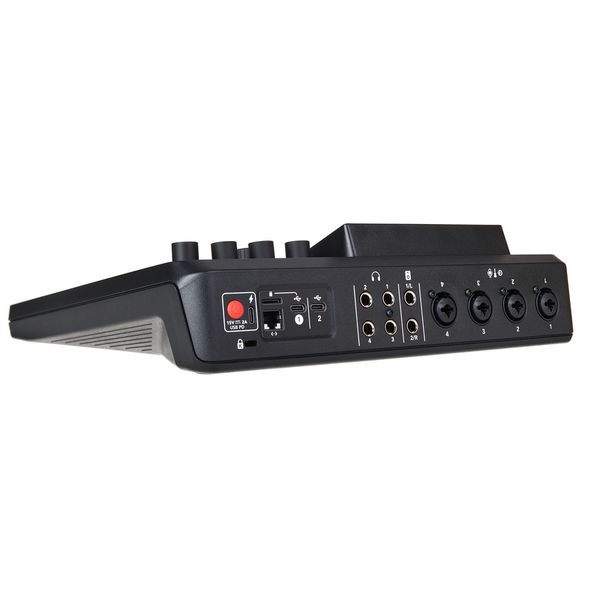

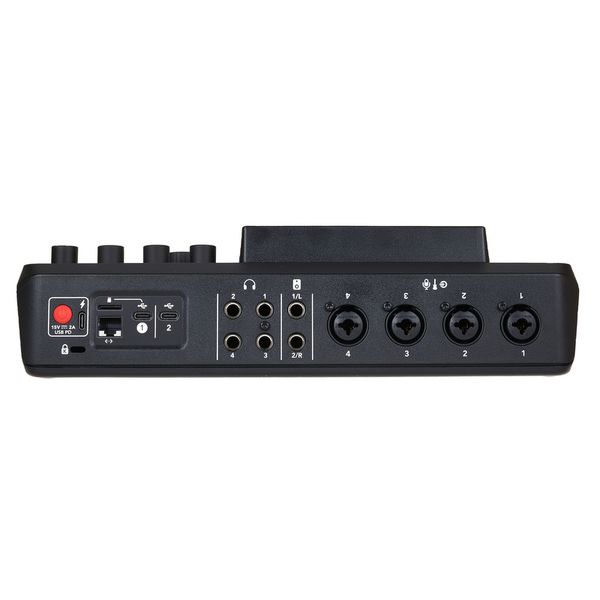

Four XLR / 6.35 mm jack combo inputs for microphones, guitars, bass and keyboards
48 V phantom power

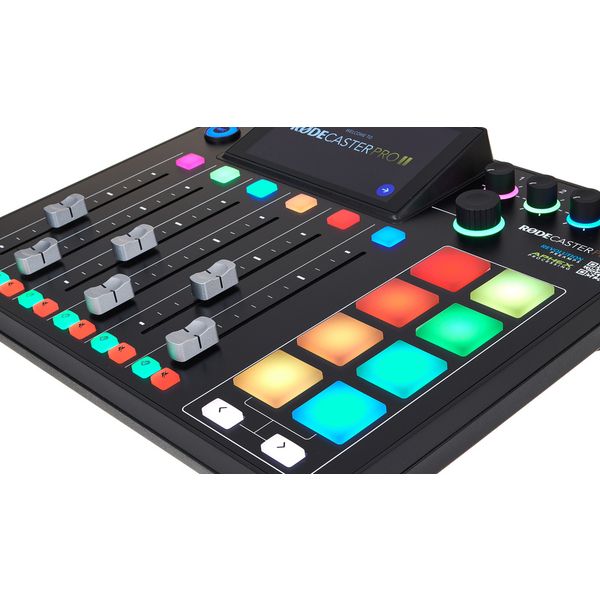

Eight programmable SMART pads with eight banks and two bank change buttons (for 64 actions) for triggering audio, effects, MIDI commands, mixer actions and vision switching
Low-noise Revolution high-gain preamps: +76 dB
Dual USB audio interface for simultaneous connection of two computers or mobile devices
Wideband Bluetooth for first-class voice quality and wireless monitoring
Nine freely assignable channels for individual configuration of mixer

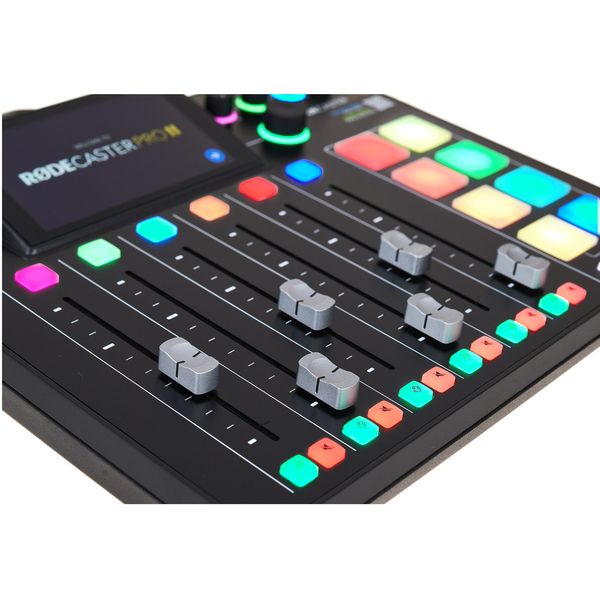

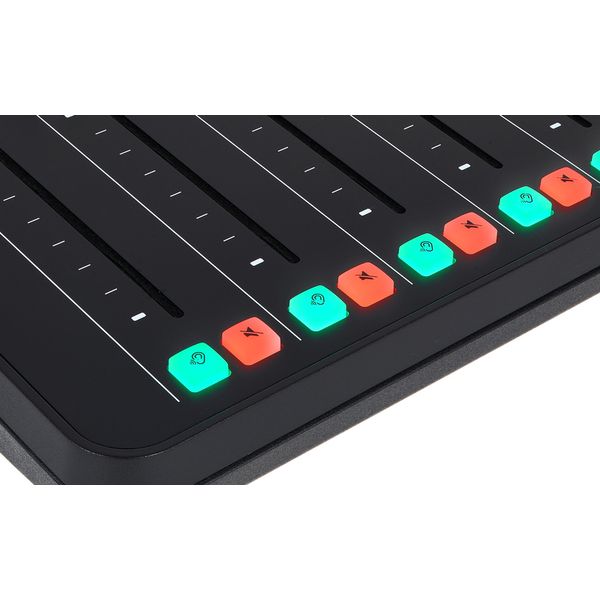

Six faders
Three virtual faders
Assignable signal sources: 4x XLR/6.35 mm, Bluetooth, USB 1, USB 2, SMART Pad Audio
4 GB internal memory for SMART Pad Audio

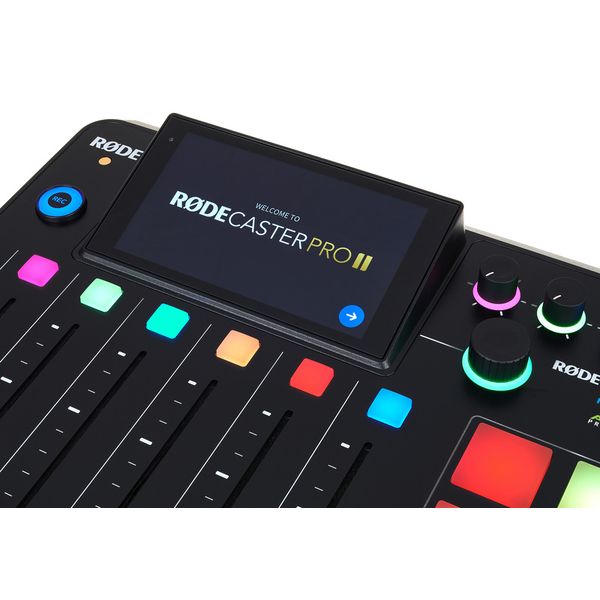

5.5" HD touchscreen with haptic feedback
Encoder with touch function for navigation and parameter settings
Programmed channel presets and VOXLab Quick Editor
APHEX signal processing: Aural Exciter, Big Bottom, Compellor
Studio effects: EQ, Compressor, Reverb, Delay, Pitch Shift, Robot Voice, Mix-Minus and Ducking
Stereo and multitrack recording to microSDHC or microSDXC card (memory card not included), USB storage medium (exFAT, at least 100 MB/s) or computer
Four headphone outputs: 6.35 mm TRS jack ( 250 mW @ 32 Ohm)
Two balanced line outputs: 6.35 mm jack
Wi-Fi (802.11g/n/ac 2.4 GHz) and Ethernet connection (100/1000)
System requirements for mobile devices: Android 9.0
Dimensions: 305 x 270 x 60 mm
Weight: 1.95 kg

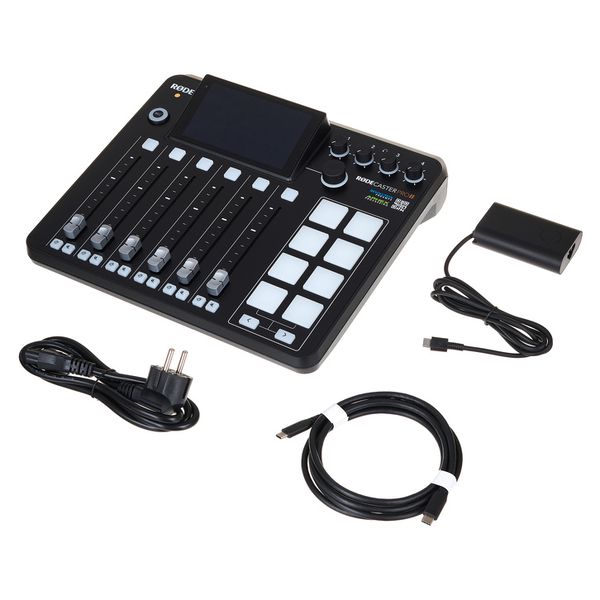

Includes power supply and 2 m USB-C to USB-C cable
Available sinceJune 2022
Item number544389
Sales Unit1 piece(s)
Number Of Tracks16
Simultaneous Recording: Amount Of Tracks2
EffectsYes
Storage MediummicroSD/SDHC/SDXC
Phantom powerYes
XLR Connectors4
Jack Connectors4
RCA ConnectorsNo
MIDI InterfaceNone
USB connectionYes
Digital ConnectionsUSB
Miscellaneous ConnectorsNone
Headphone connectionYes
Recording / Playback Channels2x16
Number of Mic Inputs4
Number of Line Inputs4
Instrument Inputs4
Number of Line Outs2
Headphone Outs4
Number of S/PDIF Connectors0
Number of ADAT Connectors0
Numer of AES/EBU Connectors0
Number of MADI Connectors0
Word Clock0
Ethernet1
Other ConnectorsUSB-C
MIDI interfaceYes
OptionsBluetooth
Max. sample rate (kHz)48 kHz
Max. resolution in bit24 bit
Incl. power supplyYes
USB Version3.0
Width in mm305 mm
Depth in mm270 mm
Height in mm60 mm
Included in deliveryPower Supply and USB-C cable (3 m)
