High-End DA Converter & Headphone Amplifier with ESS chip (from June 2021)
Sample rates: 44.1 kHz up to 768 kHz
High-resolution playback of PCM, DXD and DSD at up to 768 kHz
SteadyClock FS

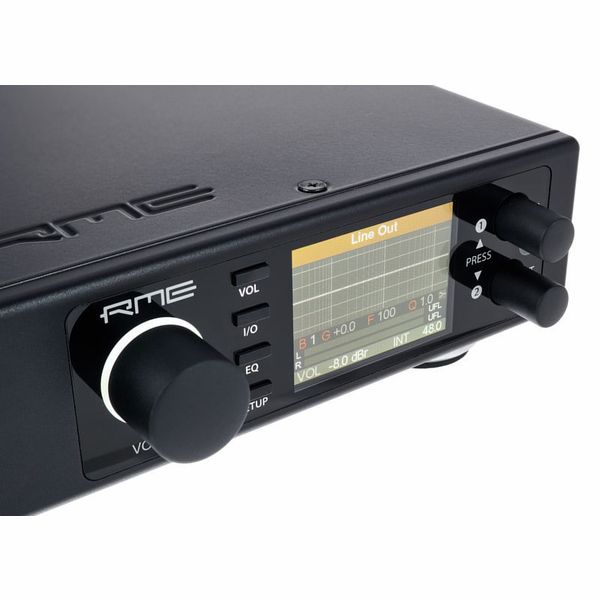

LCD
AutoDark function for lighting
Signal-to-noise ratio (SNR) @ +7/+13/+19 dBu: 120 dB RMS
Unweighted, 123 dBA
IEM output with -120 dBu
Class compliant mode

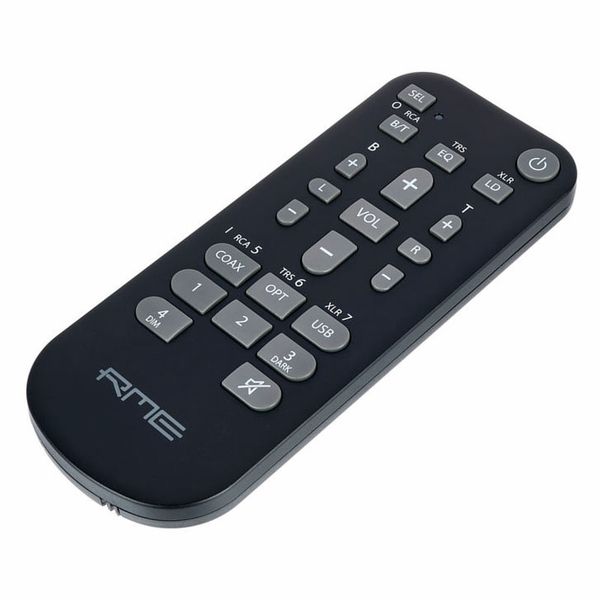

Extended Remote Control (buttons for Standby On/Off, adjustment of volume, balance, bass and treble, input selection (optical, coaxial, USB), mute, on/off switching of loudness, bass/treble and EQ)
SPDIF input signal can be recorded via USB
4-Stage hardware output level adjustment
Desktop case
Dimensions: 215 x 52 x 150 mm
Weight: 1.0 kg

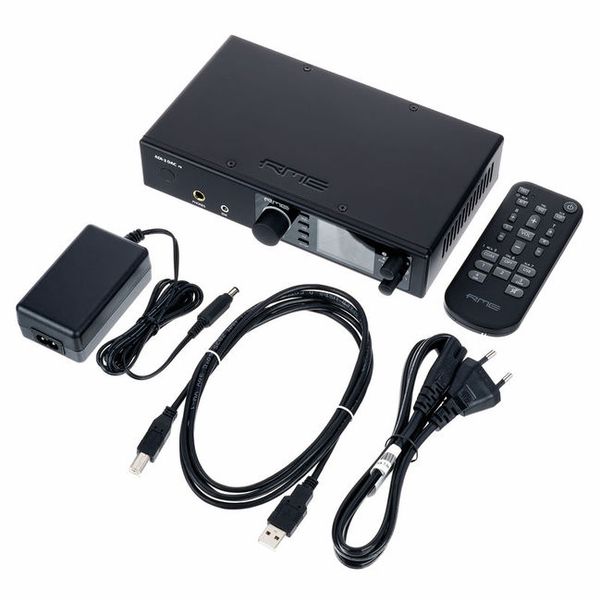

Incl. MRC remote control, USB cable and power supply unit

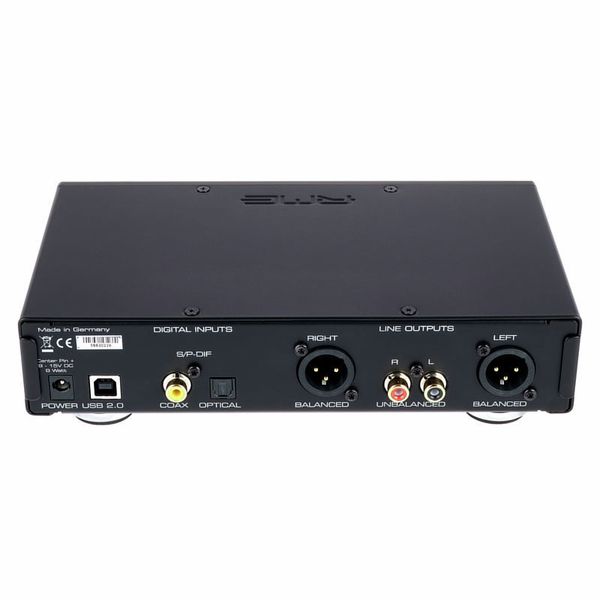

Connections:
1x S/PDIF input coaxial
1x ADAT or S/PDIF input optical
2x Line output RCA unbalanced (stereo L/R)
2x Line output XLR balanced (stereo L/R)
Extreme power stereo headphone output 6.3 mm Jack
Super Low Noise IEM output 3.5 mm mini jack
USB 2.0 port (USB 3.0 compatible)
Available sinceNovember 2019
Item number478603
Sales Unit1 piece(s)
Amount Of Channels2
AD ConversionNo
DA ConversionYes
Max. Resolution32 bit
Max. sampling rate768 kHz
S/PDIF ConnecorYes
AES/EBU ConnectorNo
ADATYes
Word clockNo
Number of analog inputs0
Number of Analog Outputs4
Headphone connectionYes
Number of stereo channels1
Output Level Adjustment Per ChannelYes
Amount Of Inputs2
Special FeaturesConversion from DSD and Direct DSD, SteadyClock FS, LCD-Display, incl. Remote
