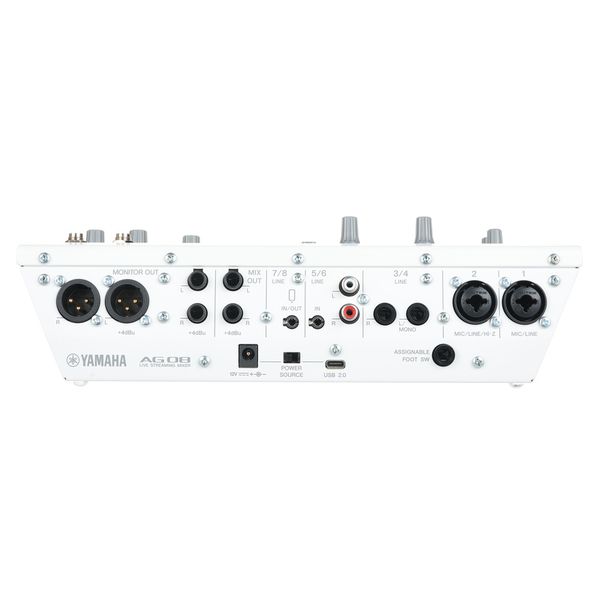

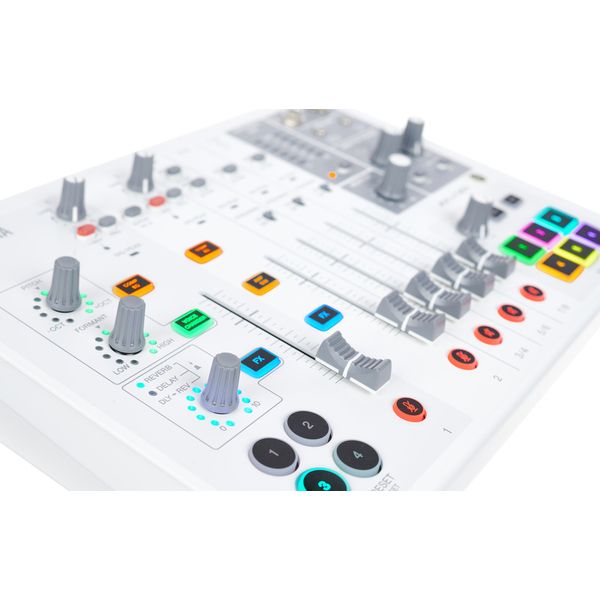

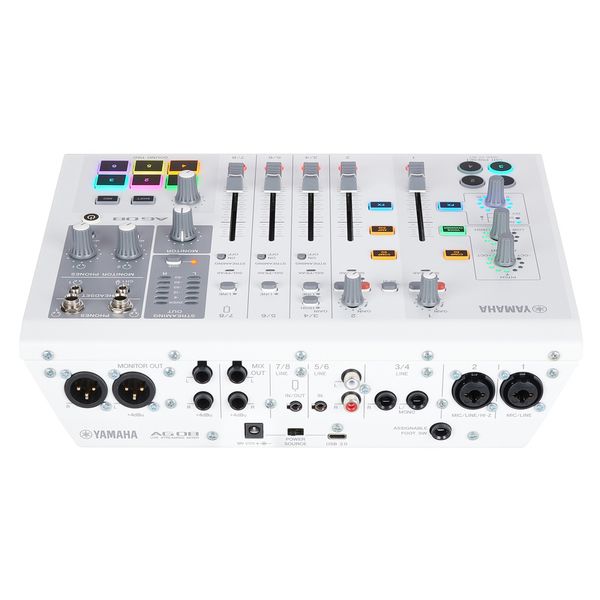

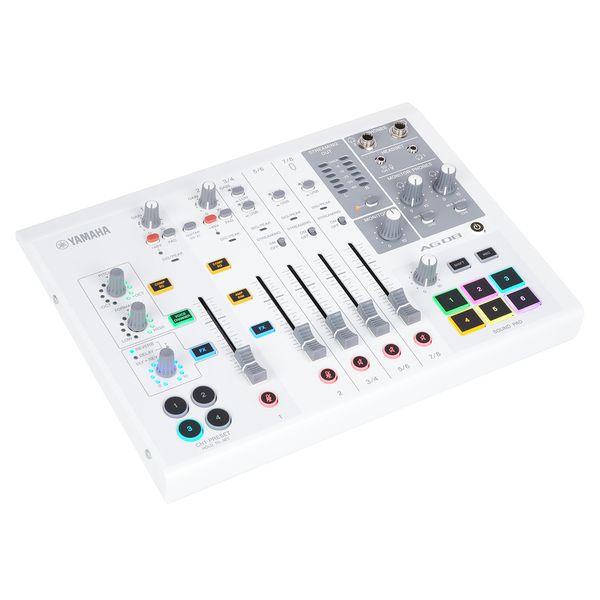

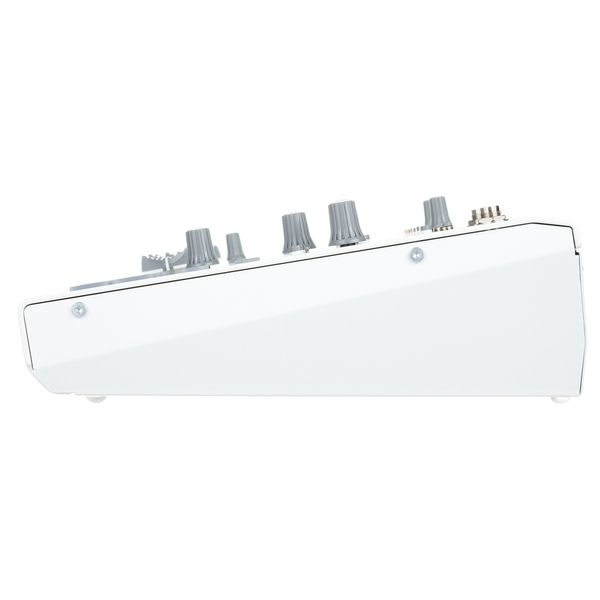

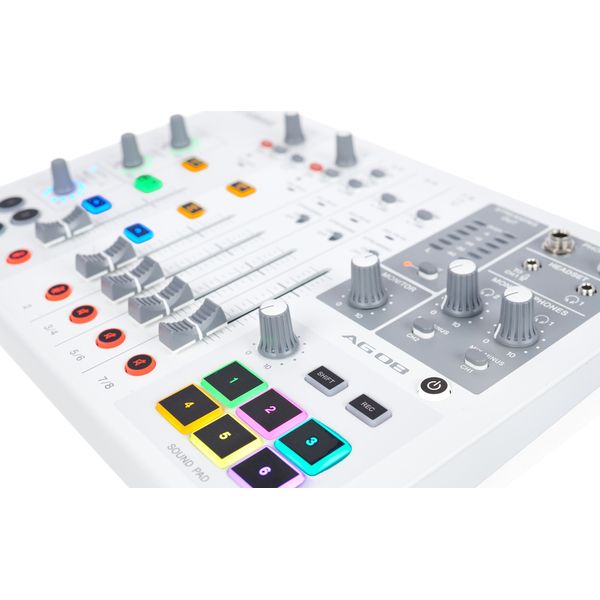

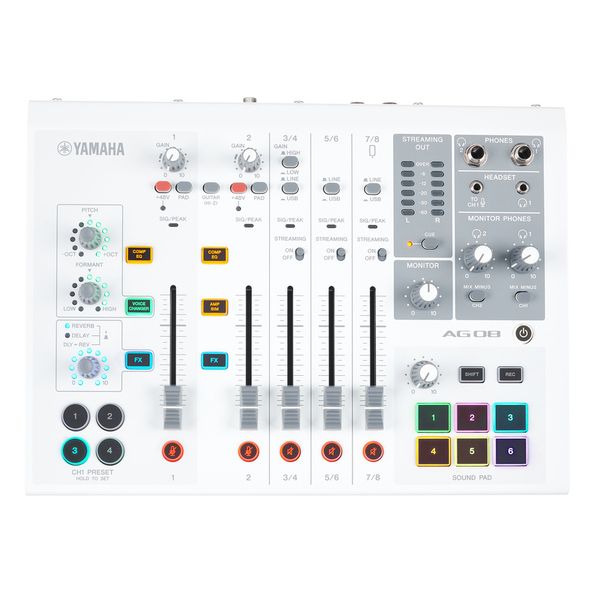

Yamaha AG08 WH

8-Channel Live Streaming Mixer / USB Audio Interface

• 24-bit/48 kHz converter
• 5 DSP effects
• 6 Buttons for playing samples
• 4 Effect buttons for channel 1 and 2
• +48V phantom power for channel 1 and 2
• 5 Faders 60 mm each
• Mute buttons for each input
• LED meter
• 2 Line/mic combo inputs: XLR/jack 6.3 mm (input 2 additionally usable as Hi-Z for guitar)
• 2 Line inputs: 6.3 mm jack
• 2 Line inputs: cinch / 3.5 mm mini jack
• 2 Monitor outputs: XLR and jack 6.3 mm
• 2 Mix outputs: 6.3 mm jack
• Line input and output: 3.5 mm mini jack
• Foot switch connection: 6.3 mm jack
• 2 Stereo headphone outputs: 6.3 mm jack
• 1 Headset connection (microphone input/headphone output): 3.5 mm mini jack
• USB-C connection
• Power supply via external power supply unit or USB 2.0
• Dimensions (W x H x D): 290 x 88 222 mm
• Weight: 2.2 kg
• Colour: White

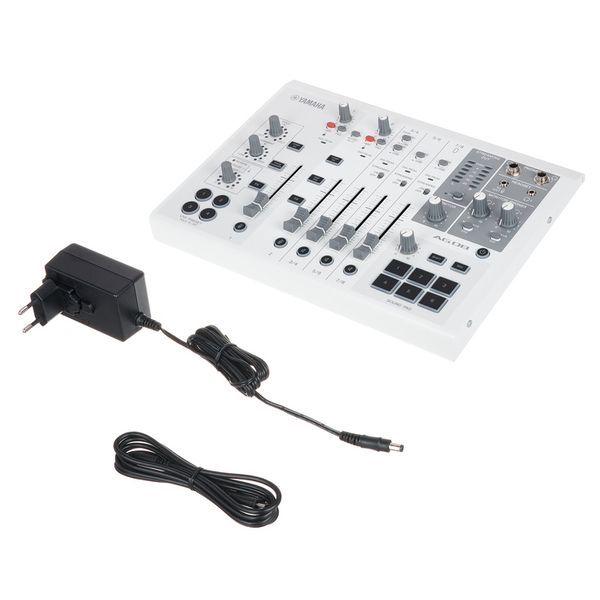

• Incl. Cubase Al, WaveLab Cast, Cubasis LE (download versions), power supply PA-150B and USB 2.0 cable 1.5 m
