Bundle offer comprising

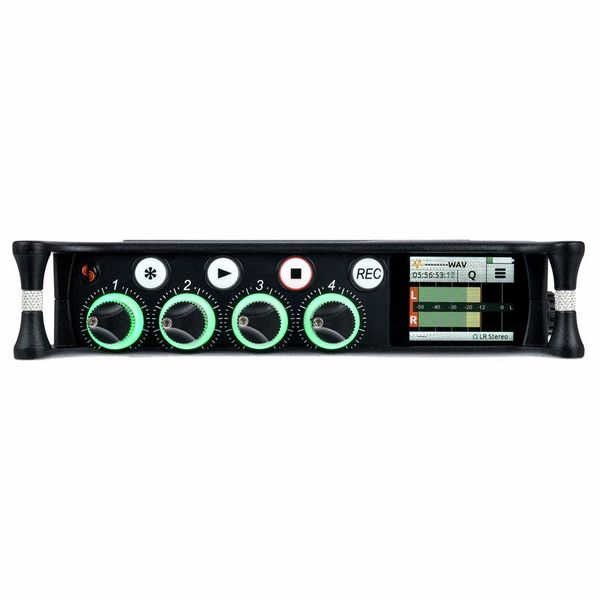

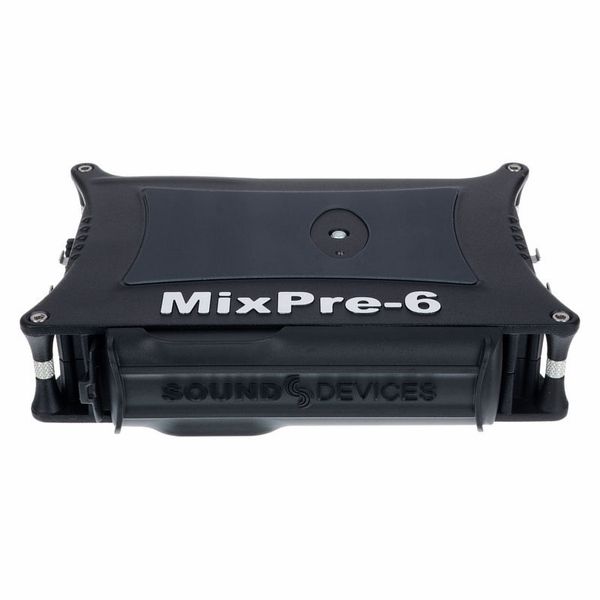

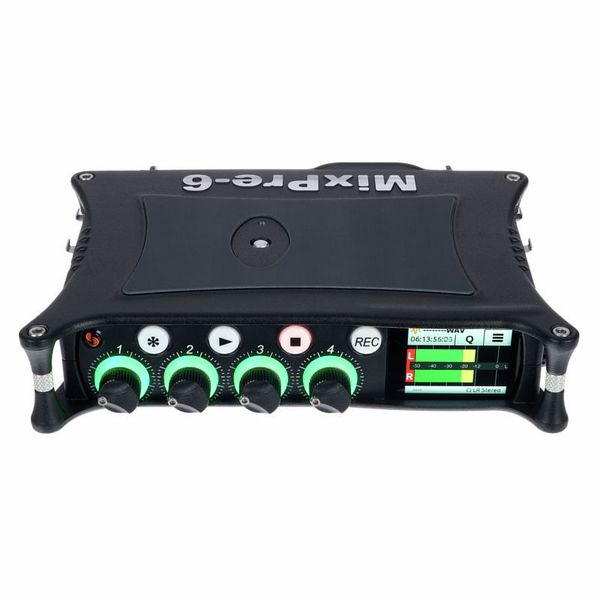

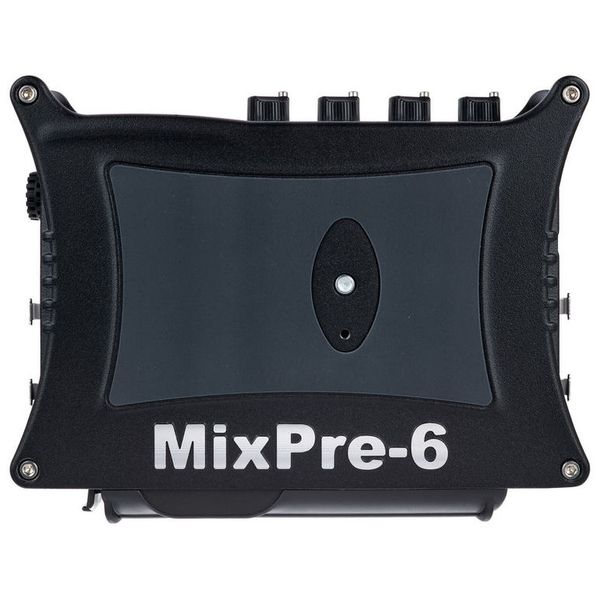

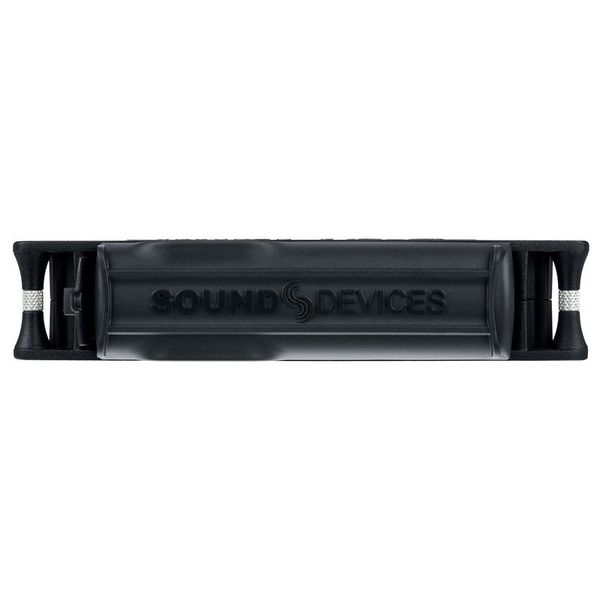

Sound Devices MixPre-6 II
Portable audio recorder with USB audio interface
- 8 Tracks: Stereo mix + 6 single inputs
- Recordings with maximum 32-bit float / 192 kHz
- Dynamic range: 142 dB (A weighted, gain = 10 dB, fader = 0 dB)
- Built-in timecode generator
- Kashmir microphone preamplifier with 76 dB gain
- Noise of unit: -128 dBu maximum (A-weighting, gain=76 dB, 150 Ohm source impedance)
- Limiter per channel
- Low Cut Filter 40 Hz to 160 Hz adjustable with 18 dB/octave
- 8-in/4-out Audio Interface (USB-C)
- SD, SDXC or SDHC card recording up to 512 GB
- Timecode input

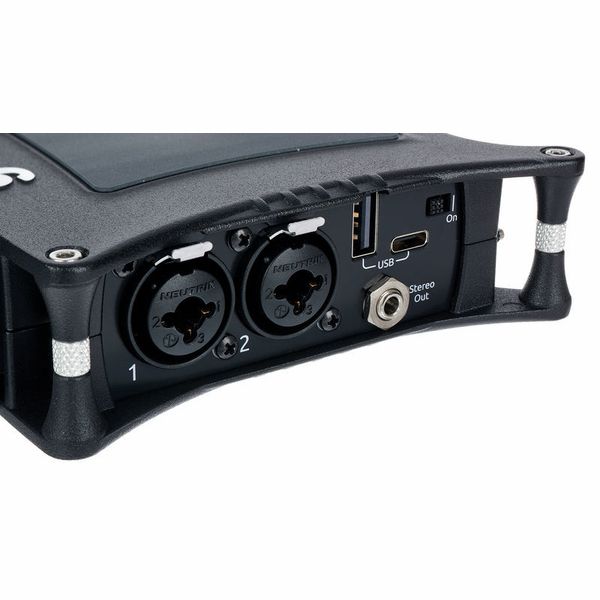

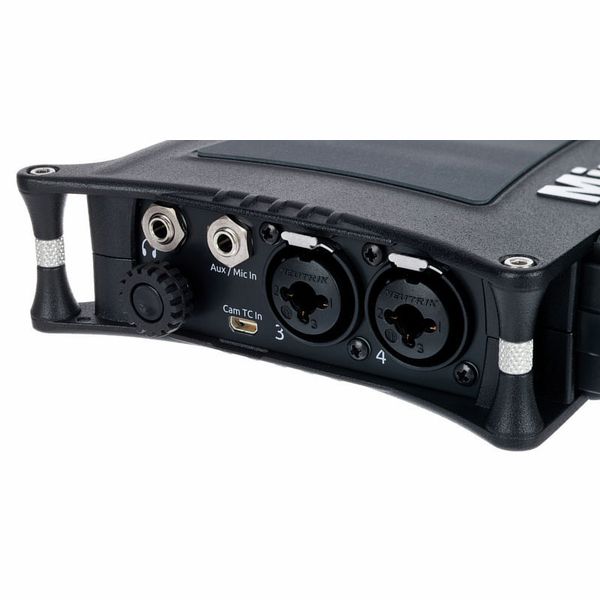

- 4 Mic/line combo Inputs
- Stereo aux/mic input with 3.5 mm jack
- 48 V Phantom power
- 3.5 mm Stereo output
- Headphone output
- Powered by 4 x AA batteries, bus-powered via USB-C or power supply adapter
- Free Wingman app for remote control of the MixPre II series

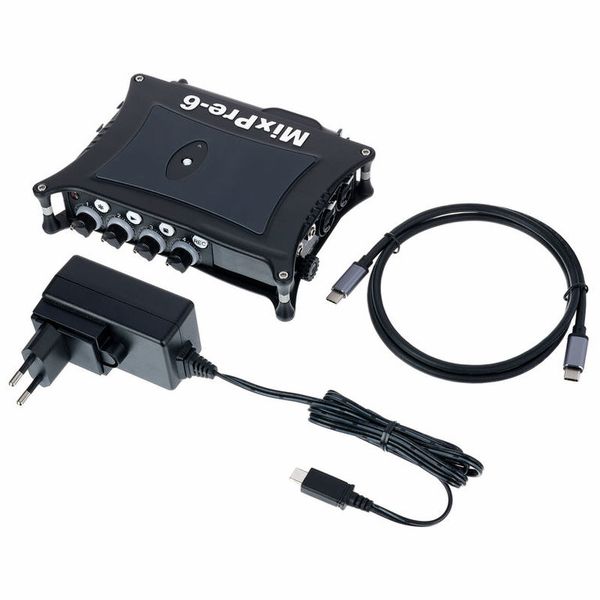

- Scope of delivery: MX-4AA battery case and MX-PSU power supply unit
- Dimensions (H x W x D): 36 x 166 x 118 mm
- Weight: 0,56 kg (without batteries)
- Suitable optional bags: Art.484629, Art.484632, Art.485319 (not included)

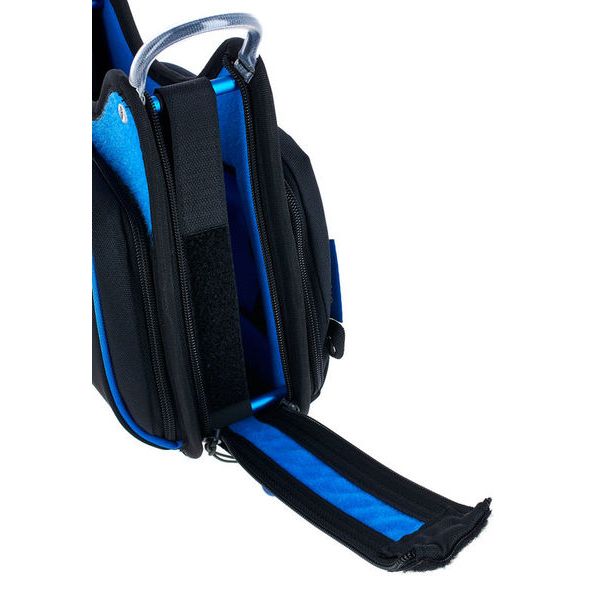

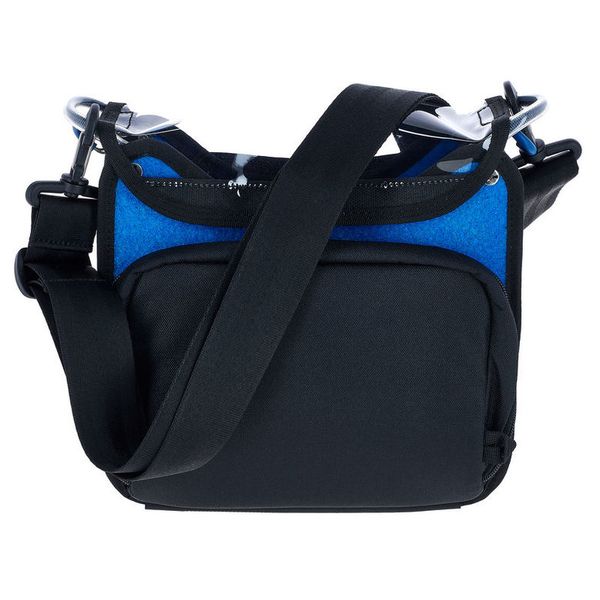

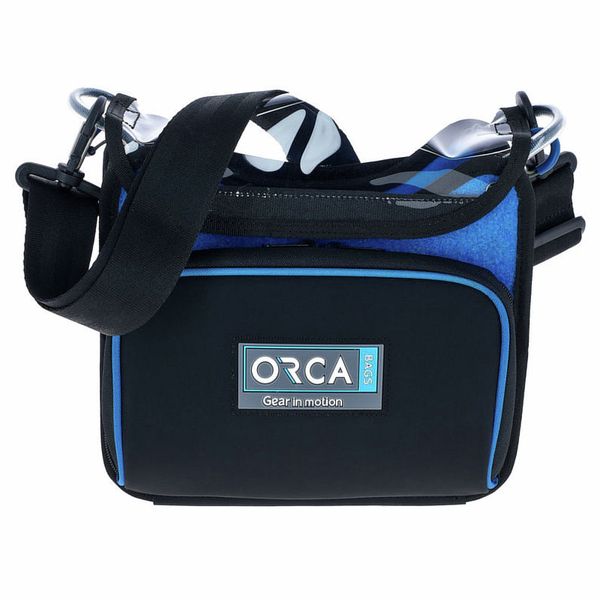

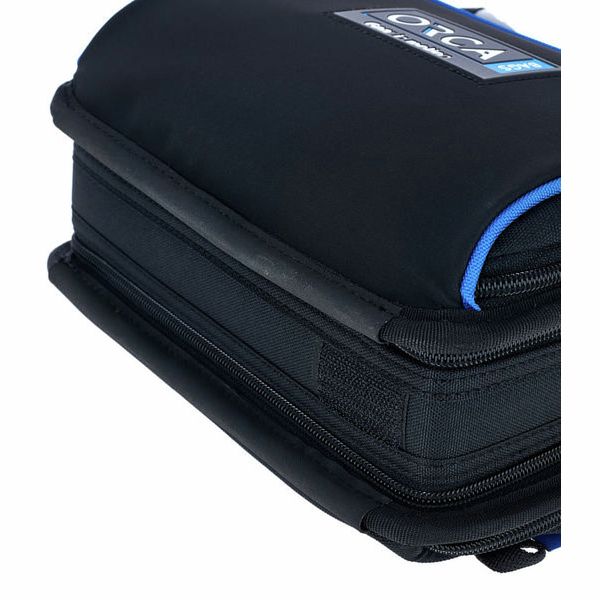

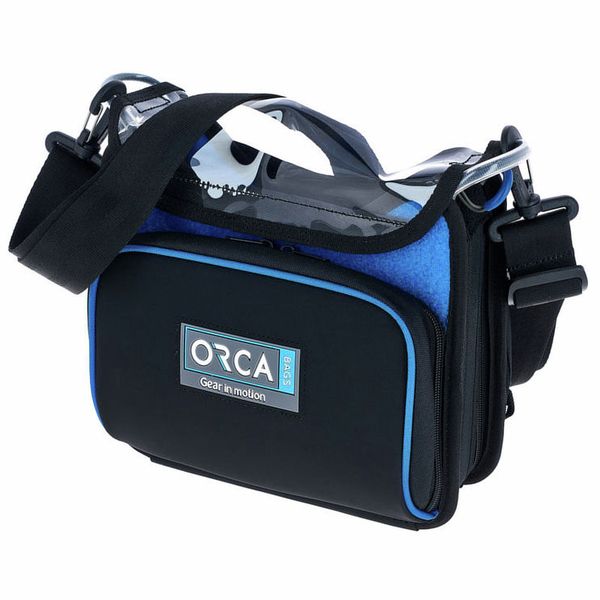

Orca OR-270
Mixer Bag
- Ideal for Sound Devices MixPre 3 and MixPre 6 recorders with MX-L battery compartment

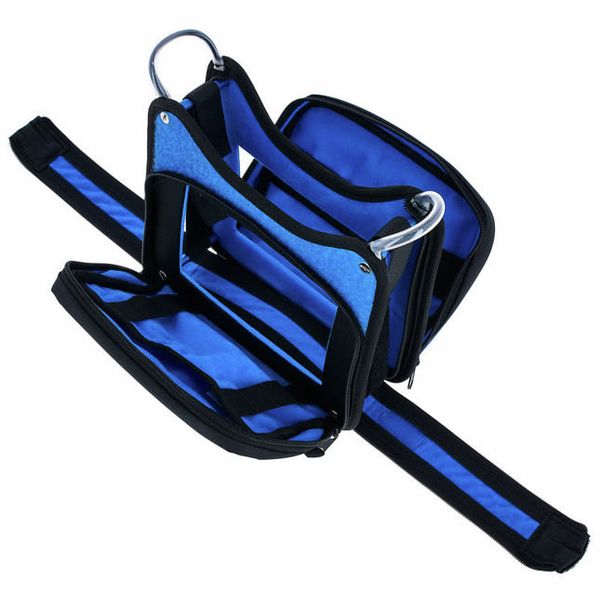

- Access to controls, battery and connectors from all sides
- Front and rear pockets for wireless systems and batteries

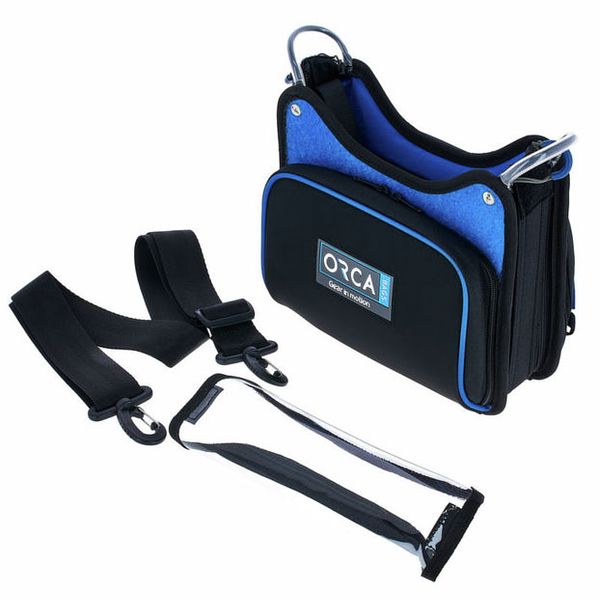

- Shoulder strap

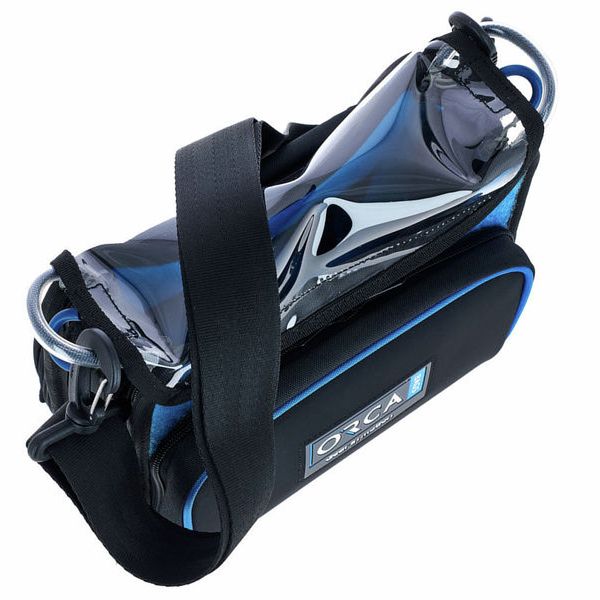

- Transparent cover
- Internal dimensions (L x W x H): 240 x 55 x 170 mm
- Weight: 620 g
- Suitable accessories: Art.485703, Art.485704 (not included)
Note: No equipment and other accessories included in the scope of delivery
Available sinceMarch 2020
Item number490258
Sales Unit1 piece(s)
Recording / Playback Channels8x4
Number of Mic Inputs4
Number of Line Inputs6
Instrument Inputs0
Number of Line Outs4
Headphone Outs1
Phantom powerYes
Number of S/PDIF Connectors0
Number of ADAT Connectors0
Numer of AES/EBU Connectors0
Number of MADI Connectors0
Ethernet0
Other ConnectorsNo
MIDI interfaceNo
Word ClockNo
Max. sample rate (kHz)96 kHz
Max. resolution in bit24 bit
USB Bus-PoweredYes
Incl. power supplyNo
USB Version2.0
Width in mm166 mm
Depth in mm118 mm
Height in mm36 mm
Connection FormatUSB port Type C, Type A
Recording Tracks6
Microphone Inputs4
48 V Phantom powerYes
Line Inputs4
Storage MediumSD/SDHC/SDXC
Max. Memory512
Headphone connectionYes
Resolution max.32 bit
Max. Sample Rate192 kHz
LimiterYes
Recording FormatWAV
Power FeedPower Supply, Batterie, Bus-powered
Dimensions36 x 166 x 118 mm
Weight560 g
Included In DeliveryMX-4AA Battery Box; Power Supply, Bag
Included in deliveryX-4AA Battery Case, Power Supply, Bag
Zero latency monitoringYes
