Prism Sound Lyra 2

Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Stereo Audio Interface 24-Bit/192 kHz

    • USB 2.0 + Ethernet
    • 20 dB Pad
    • Switchable phantom power 48 V
    • Stereo Headphone output 6.3 mm
    • Low-Latency software mixer
    • Internal power adapter
    • For Windows/Mac
    • ASIO/Core audio driver
    • Standby button
    • Dimensions: 288 x 240 x 50 mm (W x D x H)
    • Weight: 2.1 kg

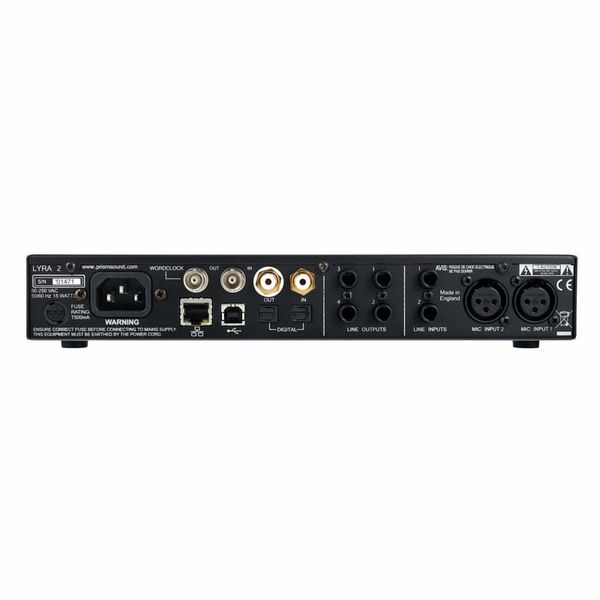

    Connections:

    • 2 XLR Mic inputs
    • 2 Front side instrument inputs 6.3 mm jack
    • 2 Line inputs 6.3 mm jack
    • 4 Line outputs 6.3 mm jack
    • S / PDIF I / O optical and coaxial
    • USB 2.0 port
    • Ethernet port
    • Word clock I/O
    • Available sinceMay 2013
    • Item number312285
    • Sales Unit1 piece(s)
    • Recording / Playback Channels12x14
    • Number of Mic Inputs2
    • Number of Line Inputs2
    • Instrument Inputs2
    • Number of Line Outs4
    • Headphone Outs1
    • Phantom powerYes
    • Number of S/PDIF Connectors1
    • Number of ADAT Connectors1
    • Numer of AES/EBU Connectors0
    • Number of MADI Connectors0
    • Ethernet1
    • Other ConnectorsNo
    • MIDI interfaceNo
    • Word Clock1xIn, 1xOut
    • Max. sample rate (kHz)192 kHz
    • Max. resolution in bit24 bit
    • USB Bus-PoweredNo
    • Incl. power supplyYes
    • USB Version2.0
    • Width in mm288 mm
    • Depth in mm240 mm
    • Height in mm50 mm
    • Connection FormatUSB port Type B
    • Included in deliveryUSB Kabel, Power Cable
    • Zero latency monitoringYes
