Consisting of Quantum ES 2 USB-C audio interface, Eris 3.5 2nd Gen active studio monitors, HD9 studio headphones, M9 large-diaphragm condenser microphone
Including 12 months Studio One+ with access to Studio One Professional Edition, add-ons and more, as well as a perpetual licence for Studio One Professional

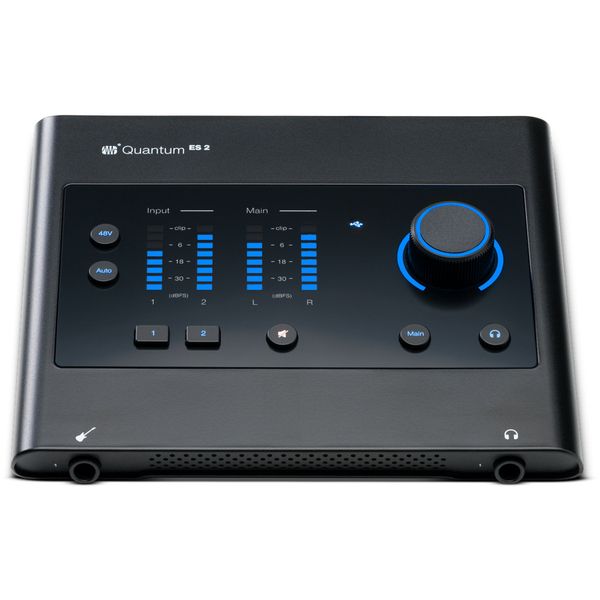

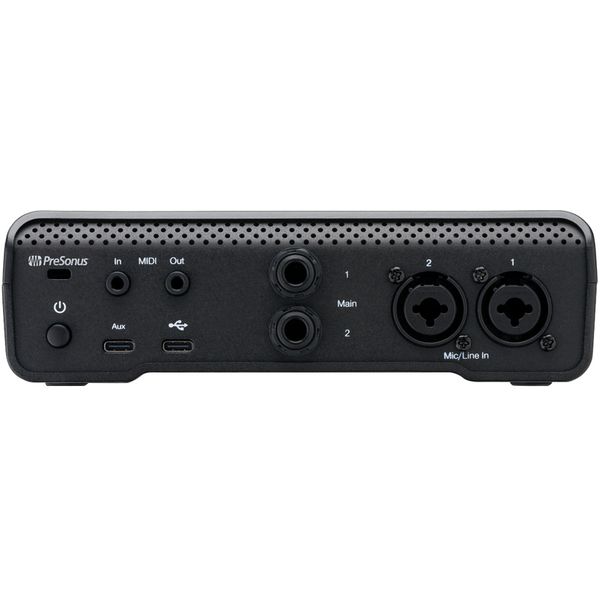

Quantum ES2:
2x2 USB 2.0 audio interface with USB-C connection
Conversion with up to 24-bit/192 kHz
2 Combo inputs: mic / line: XLR / jack
1 Instrument input on the front
48 V Phantom power
2 MAX-HD preamps with 75 dB gain each
Auto Gain function
Control functions such as pre-amplification and phantom power directly from Studio One or the Universal Control app
LED level indicator for monitoring the input and output levels
Loopback function
2 Balanced TRS jack outputs
Stereo headphone output
MIDI In and Out
Latency-free monitoring
Bus powered
System requirements interface: Windows 10 or later, Mac OSX 10.14 or later

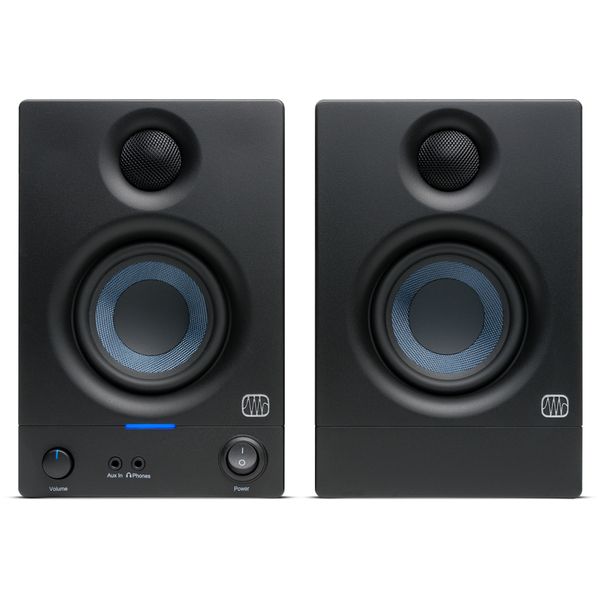

Eris 3.5 2nd Generation:
3.5" Woofer and 1" silk dome tweeter
Frequency range: 80 Hz - 20 kHz
Max. sound pressure level: 97 dB (@ 1 metre)
Auto standby switchable
TRS jack input: L/R, balanced
RCA pair L/R
Treble control and bass control: -6 to +6 dB each
Front aux input for smartphone etc. 3.5 mm stereo mini jack
Front headphone jack: 3.5 mm stereo mini jack
Front volume control with on/off switch and operation LED

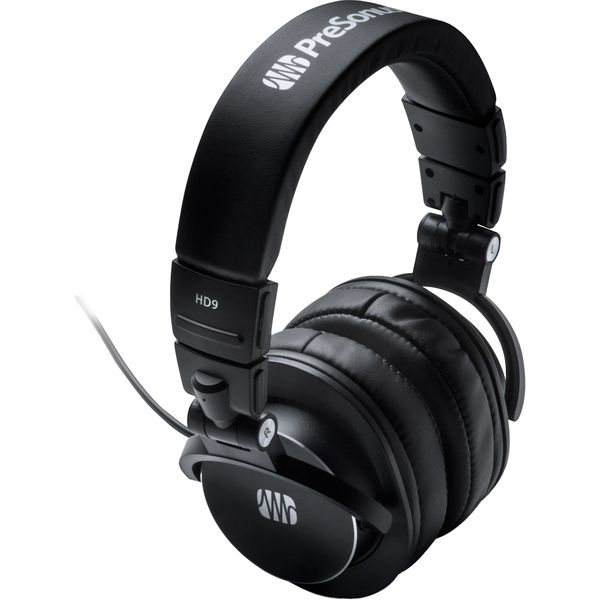

HD9 Studio Headphones:
Precision-tuned
Closed-back design
Circumaural design
Earcups move over 2 axes and 180°
Precise low bass reproduction
Dynamic 45 mm neodymium driver
Frequency range: 10 Hz - 26,000 Hz

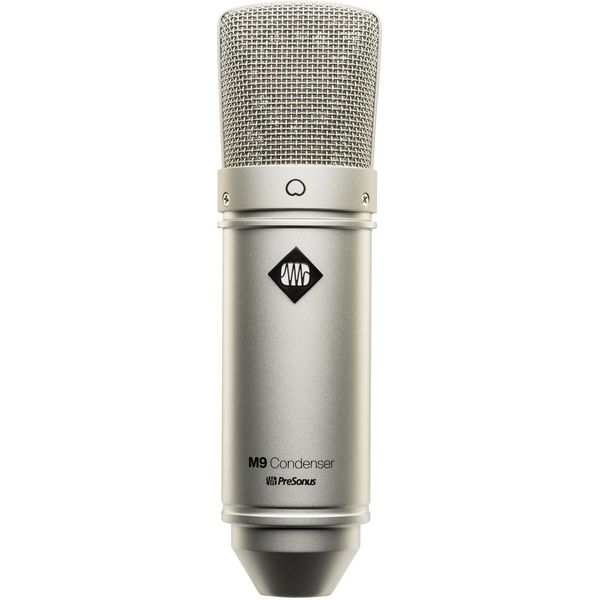

M9:
Large diaphragm condenser microphone
Polar pattern: Cardioid
Frequency response: 20 - 20,000 Hz
Includes Shock Mount
Available sinceOctober 2024
Item number600175
Sales Unit1 piece(s)
Recording / Playback Channels2x2
Number of Mic Inputs2
Number of Line Inputs2
Instrument Inputs1
Number of Line Outs2
Headphone Outs1
Phantom powerYes
Number of S/PDIF Connectors0
Number of ADAT Connectors0
Numer of AES/EBU Connectors0
Number of MADI Connectors0
Ethernet0
Other ConnectorsNo
MIDI interfaceYes
Word ClockNo
Max. sample rate (kHz)192 kHz
Max. resolution in bit24 bit
USB Bus-PoweredYes
Incl. power supplyNo
USB Version2.0
Width in mm175 mm
Depth in mm157 mm
Height in mm48 mm
Connection FormatUSB port Type C
Included in delivery1.5m USB-C to USB-C cable, as well as 6 months Studio One+ with access to Studio One Professional Edition, add-ons and more
