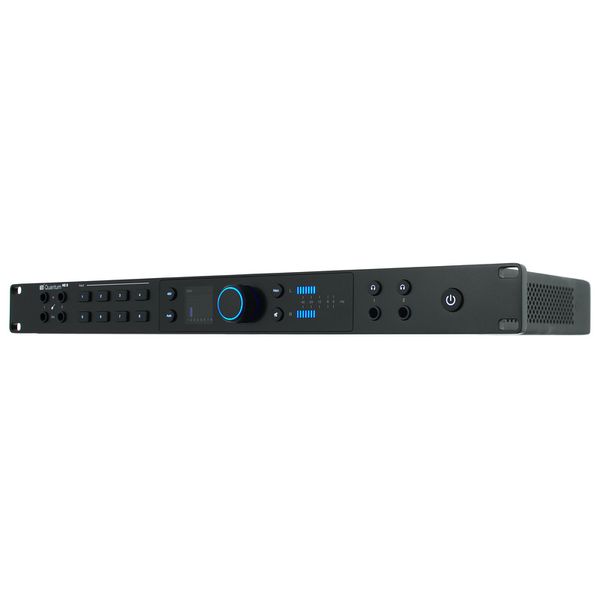

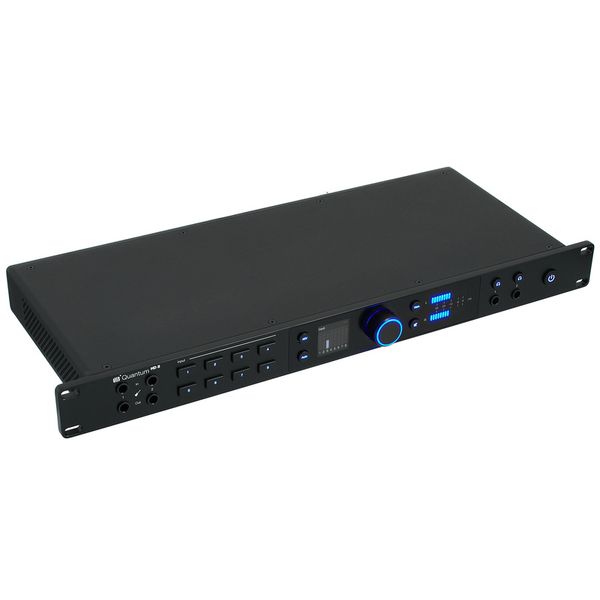

26 x 30 USB 2.0 Audio Interface with USB-C Connection
Conversion with up to 32-bit/192 kHz
Eight combo inputs mic/line: XLR/jack
Two instrument inputs on the front
48 V phantom power
Eight MAX-HD preamps with 75 dB gain each
Auto Gain function
Two Re-Amp outputs
Control functions such as pre-amplification and phantom power directly from Studio One or the Universal Control app

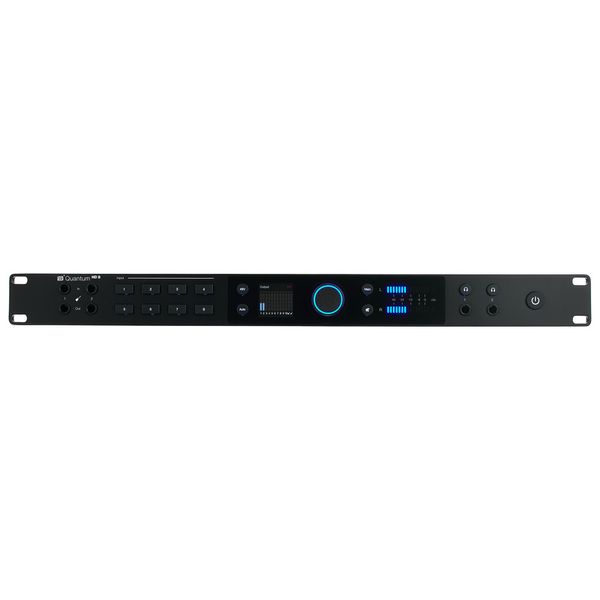

High-resolution full-colour screen for monitoring the input and output levels
Loopback function
Two ADAT inputs and outputs and stereo S/PDIF input and output

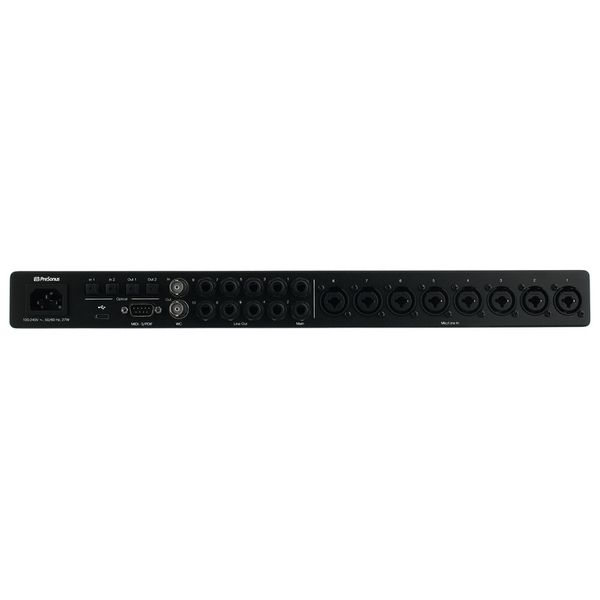

Two balanced TRS main outputs and eight TRS jack line outputs
Built-in speaker switching for the use of multiple speaker pairs
Two stereo headphone outputs
MIDI In and Out
Latency-free monitoring
System requirements Interface: Windows 10 or later, Mac OSX 10.14 or later
Dimensions (W x D x H): 483 x 219 x 44 mm
Weight: 2.86 kg

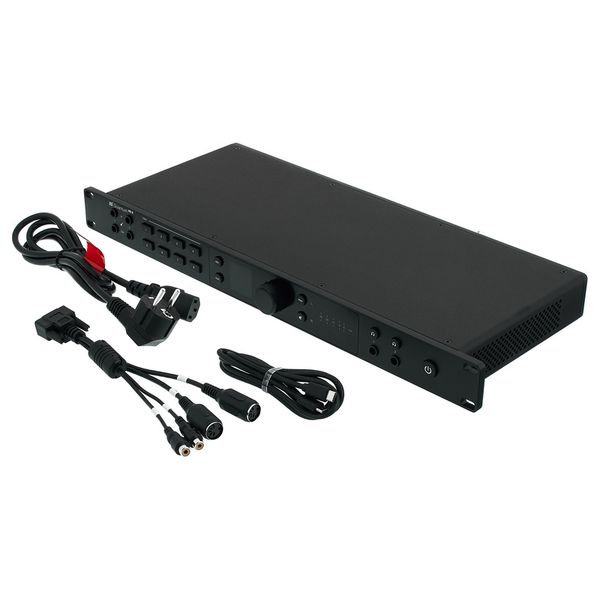

Includes 1.5 m USB-C to USB-C cable, breakout cable for MIDI and S/PDIF, and Presonus Studio One Pro (download)
Available sinceMay 2024
Item number588793
Sales Unit1 piece(s)
Recording / Playback Channels26x32
Number of Mic Inputs8
Number of Line Inputs8
Instrument Inputs2
Number of Line Outs10
Headphone Outs2
Phantom powerYes
Number of S/PDIF Connectors1
Number of ADAT Connectors2
Numer of AES/EBU Connectors0
Number of MADI Connectors0
Ethernet0
Other ConnectorsNo
MIDI interfaceYes
Word Clock1xIn, 1xOut
Max. sample rate (kHz)192 kHz
Max. resolution in bit32 bit
USB Bus-PoweredNo
Incl. power supplyYes
USB Version2.0
Width in mm483 mm
Depth in mm219 mm
Height in mm44 mm
Connection FormatUSB port Type C
Included in delivery1.5m USB-C to USB-C cable, breakout cable for MIDI and S/PDIF, 12 months Studio One+ with access to Studio One Professional Edition, add-ons and more, plus a perpetual licence for Studio One Professional
