USB Audio Interface For Streaming And Content Creation

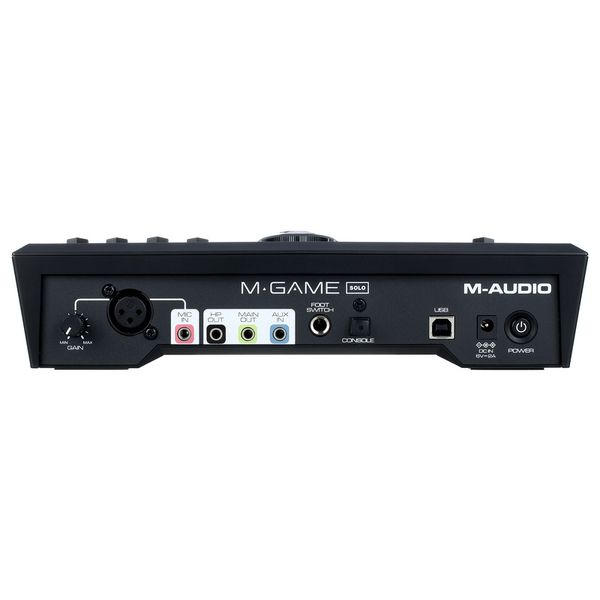

USB-B connections for streaming PC and digital game console input (Toslink) to prevent noise interference

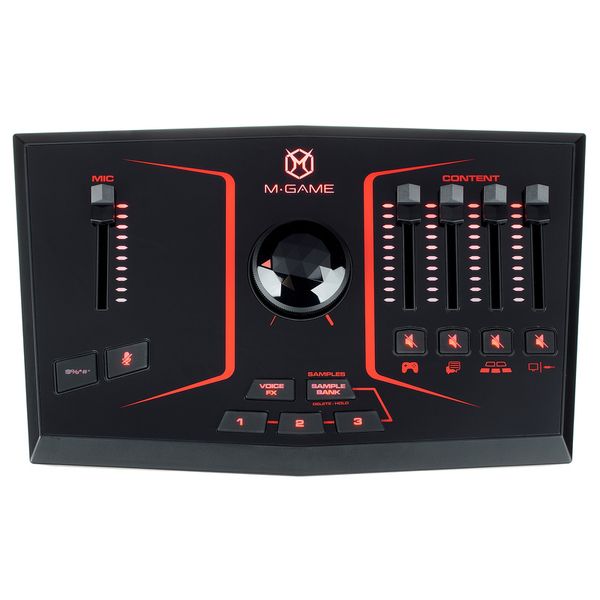

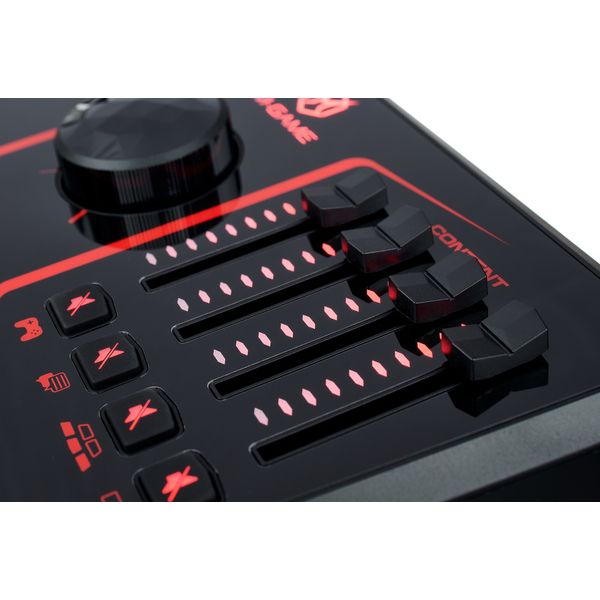

Content mixer with 4 channels

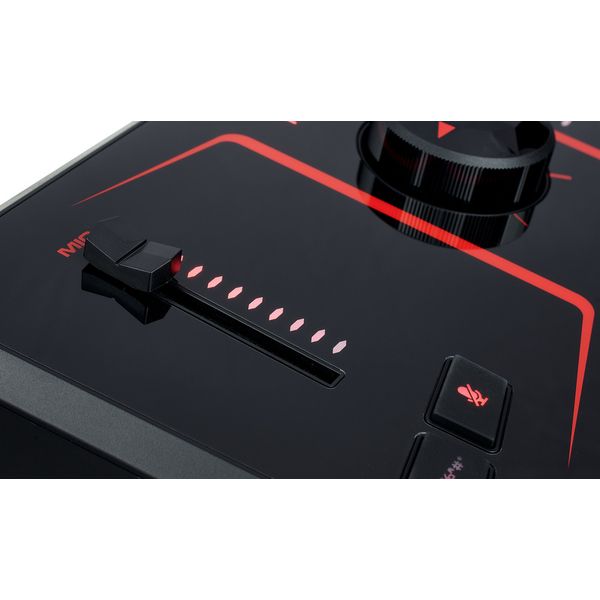

Microphone input: XLR and 3.5mm jack with switchable +48V phantom power, as well as EQ, compressor, noise gate, de-esser, high-pass filter and an adjustable boost for low-level microphones
Mute and censor button for the microphone channel
Button for triggering voice effects
Three programmable buttons for triggering samples

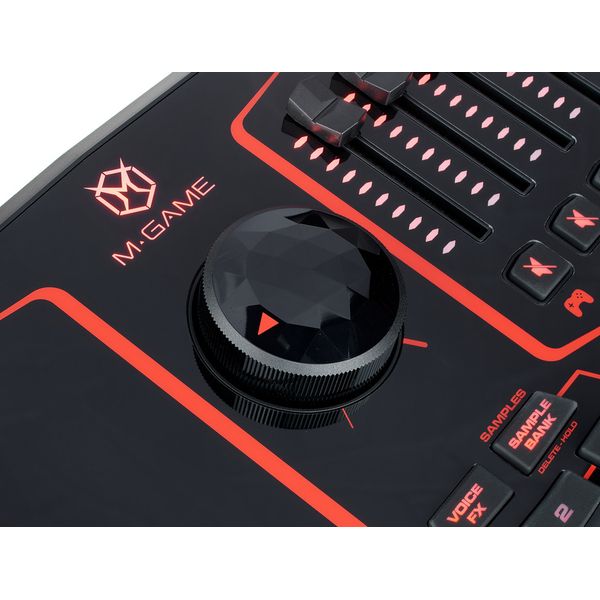

Volume knob for headphone and line output

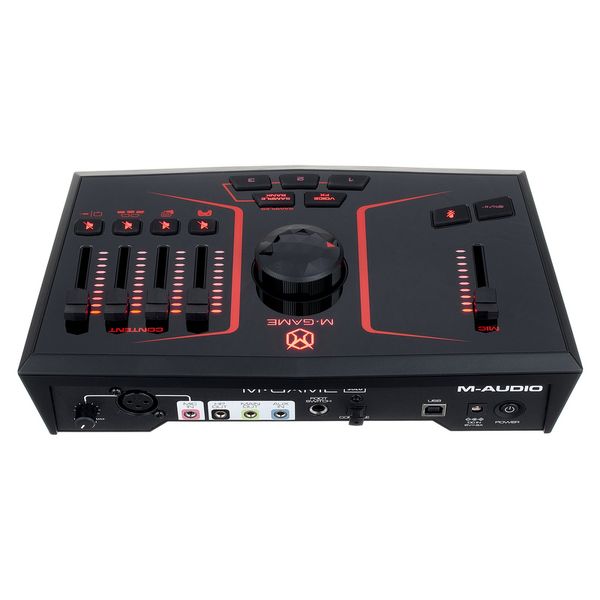

Stereo line output: 3.5 mm jack
Stereo headphones output: 3.5 mm jack
Stereo aux input: 3.5 mm jack
Foot switch input: 6.3 mm jack
Dimensions (W x D x H): 273 x 168 x 67 mm
Weight: 0.7 kg

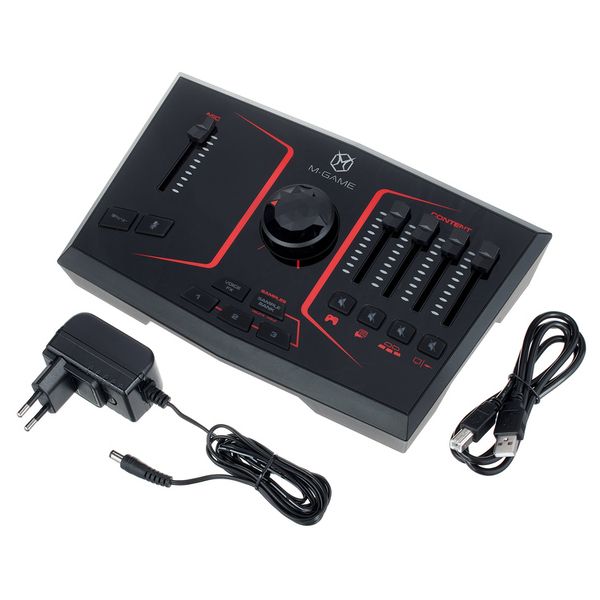

Incl. M-Game software (download), external power supply (6V DC, 2A) and USB cable
Available sinceSeptember 2022
Item number551323
Sales Unit1 piece(s)
Recording / Playback Channels5x4
Number of Mic Inputs1
Number of Line Inputs2
Instrument Inputs0
Number of Line Outs2
Headphone Outs1
Phantom powerYes
Number of S/PDIF Connectors1
Number of ADAT Connectors0
Numer of AES/EBU Connectors0
Number of MADI Connectors0
Ethernet0
Other ConnectorsUSB
MIDI interfaceNo
Word ClockNo
Max. sample rate (kHz)48 kHz
Max. resolution in bit24 bit
USB Bus-PoweredNo
Incl. power supplyYes
USB Version2.0
Width in mm273 mm
Depth in mm168 mm
Height in mm67 mm
Connection FormatUSB port Type B
Included in deliveryPower Supply (6V DC, 2A), USB cable
