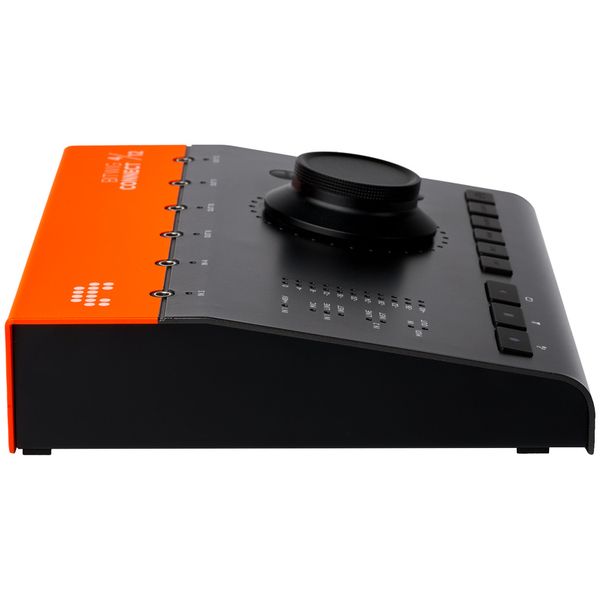

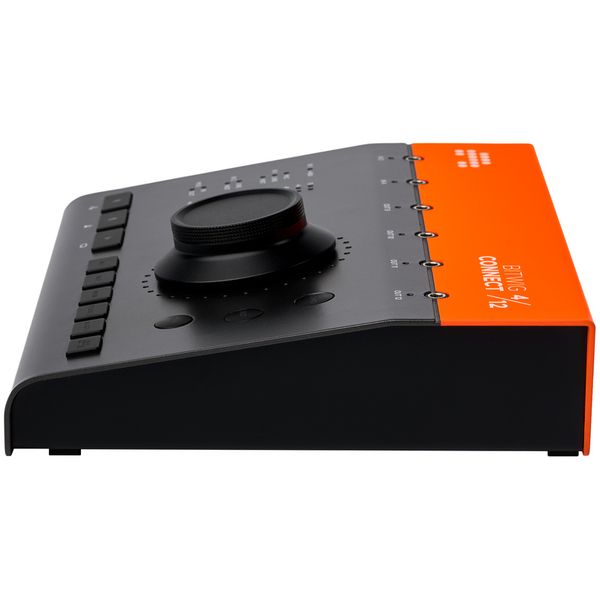

Bitwig Connect 4/12

Quantity
ADD TO CART
BUY IT NOW
  • Detail

    USB Audio Interface

    • With CV and Bitwig integration
    • 24 Bit / 192 kHz
    • Bitwig integration for transport functions, precise parameter customisation and writing automations
    • In Bitwig mode, the main dial can be used to control all parameters over which the mouse pointer is currently positioned, including parameter lock
    • Monitor controller function
    • Powered via USB
    • Class compliant, compatible with PC, Mac and Linux
    • Dimensions (W x H x D): 205 x 52 x 163 mm
    • Weight: 1.48 kg
    • Includes USB-C cable, USB-A adapter, 2x 3.5 mm mini-jack cable, 2x mini-jack to MIDI cable, Bitwig Studio Essentials and Bitwig Circle membership

    Connections:

    • Microphone/line/instrument input with 48 V phantom power: XLR / 6.3 mm TRS combo jack
    • Line/instrument input: 6.3 mm TRS jack
    • Line inputs: 2 x 6.3 mm TRS jack
    • CV inputs: 2 x 3.5 mm TRS mini jack
    • Line outputs: 6 x 6.3 mm jack
    • CV outputs: 4 x 3.5 mm TRS mini jack
    • Headphone output: 6.3 mm TRS jack
    • MIDI input and output: 3.5 mm TRS mini jack
    • USB-C port
    • Available sinceMay 2025
    • Item number609877
    • Sales Unit1 piece(s)
    • Recording / Playback Channels4/12
    • Number of Mic Inputs1
    • Number of Line Inputs4
    • Instrument Inputs2
    • Number of Line Outs6
    • Headphone Outs1
    • Phantom powerYes
    • Number of S/PDIF Connectors0
    • Number of ADAT Connectors0
    • Numer of AES/EBU Connectors0
    • Number of MADI Connectors0
    • Ethernet0
    • Other ConnectorsCV in / out
    • MIDI interfaceYes
    • Word ClockNo
    • Max. sample rate (kHz)192 kHz
    • Max. resolution in bit24 bit
    • USB Bus-PoweredYes
    • Incl. power supplyNo
    • USB Version2.0
    • Width in mm205 mm
    • Depth in mm163 mm
    • Height in mm52 mm
    • Connection FormatUSB port Type C
    • Included in deliveryUSB-C Cable, USB-A Adaptor, 2 x 3.5mm mini-jack cables, 2 x mini-jack to MIDI cables
    • Zero latency monitoringYes
