Sonarworks SoundID Ref Spk & HP w Mic

Reference for speakers and headphones with measurement microphone (box)

• Speaker and headphone calibration software and measurement microphone in a bundle
• Precise adjustment of the frequency response to get flat and neutral sounding monitor speakers or headphones
• Enables a more precise evaluation of recordings and mixes

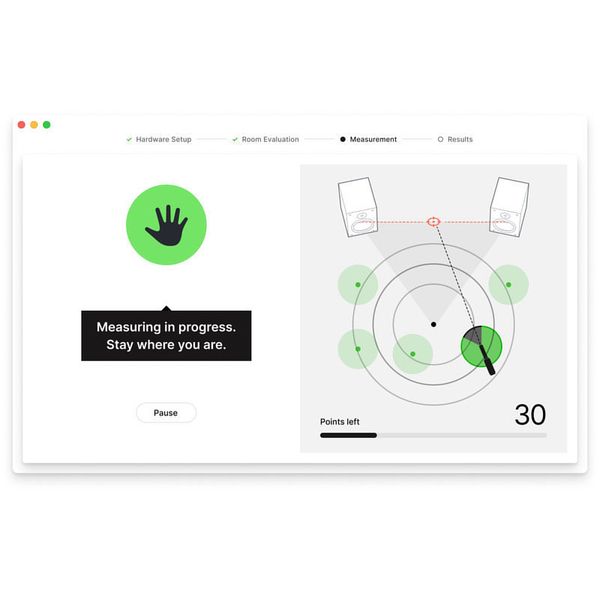

• Room analysis and automated calculation of the room size based on several measurements
• Audio calibration engine allows for accurate processing
• Save an unlimited number of calibration profiles for monitor speakers
• Comes with headphone calibration profiles for more than 280 supported models

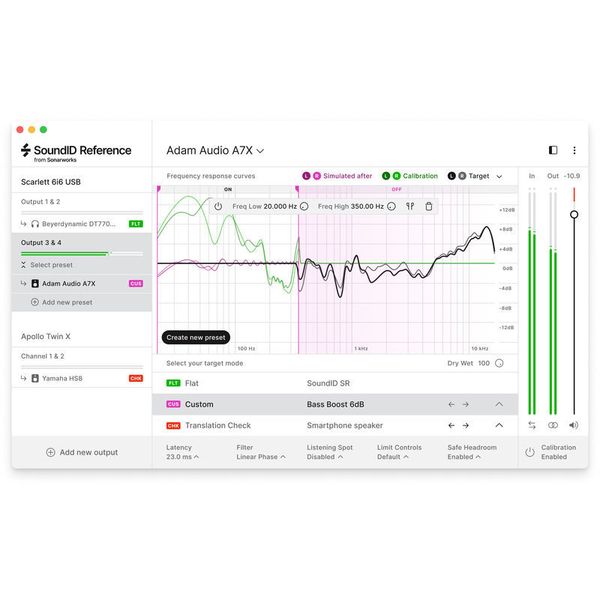

• Target curve custom adjustments in real time
• Translation check simulates over 20 different devices and device types for accurate mix translation results
• 3 filter modes to choose from: Zero Latency, Mixed and Linear Phase allow to optimize filter quality and latency according to the monitoring situation
• Additional processing controls for Mono, Dry/Wet and Safe Headroom
• App only: MIDI mapping for various controls and user presets for predefined output device/channel pair combinations

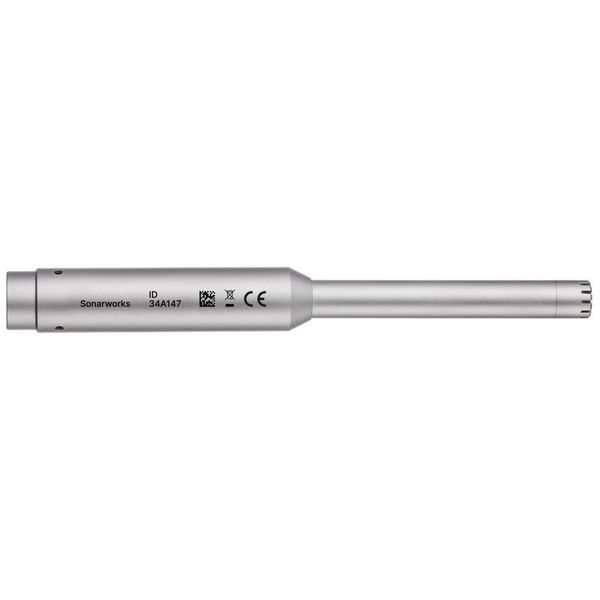

• Measurement microphone with a pre-polarized electret-condenser capsule
• Frequency response: 20 - 20.000 Hz with calibration curve
• Omnidirectional polar pattern
• Sensitivity: 14 mV/Pa
• Self noise: 24 dB
• Signal to noise ratio: 70 dB
• Dynamic range: 106dB
• Maximum sound pressure level: 132 dB SPL
• Requires 48 V phantom power
• Connector: 3 pin XLR
• Microphone calibration file for 30° off-axis measurements in Sonarworks software native format to be used with SoundID Reference
• Microphone calibration file for 0° on-axis measurements in .txt format
