B&C 12PE32

Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Speaker

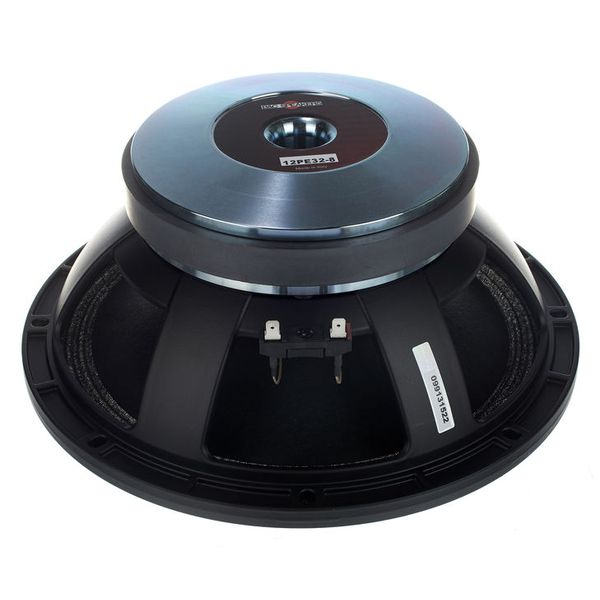

    320 mm Midrange-woofer-speaker with a very strong drive and flat frequency range up to 2.5 kHz.

    Particularly suited for use in horns

    • Size: ? 12"
    • Rated power: 250/500 W
    • Resonance frequency FS: 51 Hz
    • Frequency range: 50 up to 4000 Hz
    • Nominal impedance: 8 Ohm
    • Good Qts = 0.18 (Qes=0.19 Qms=7.6)
    • Equivalent volume Vas: 101 litres
    • DC resistance RE: 5.8 Ohm
    • Diaphragm surface SD: 522 cm2
    • SPL: 101.5 dB (1W; 1m)
    • Max. declension Xmax: +/- 2.8 mm
    • Dimensions: round speaker with ? 316 mm
    • Bolt circle diameter: ? 296 mm
    • Baffle cutout diameter: 282 mm
    • Depth of speaker: 134 mm
    • Weight: 7.6 kg
    • Available sinceMarch 2002
    • Item number131403
    • Sales Unit1 piece(s)
    • Impedance8 Ohms
    • Load Capacity250 W
