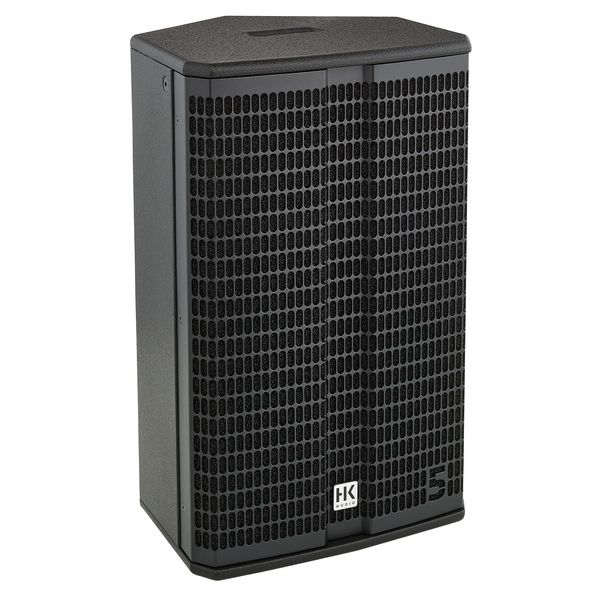

HK Audio Linear 5 MKII 112 XA

Quantity
ADD TO CART
BUY IT NOW
  • Detail

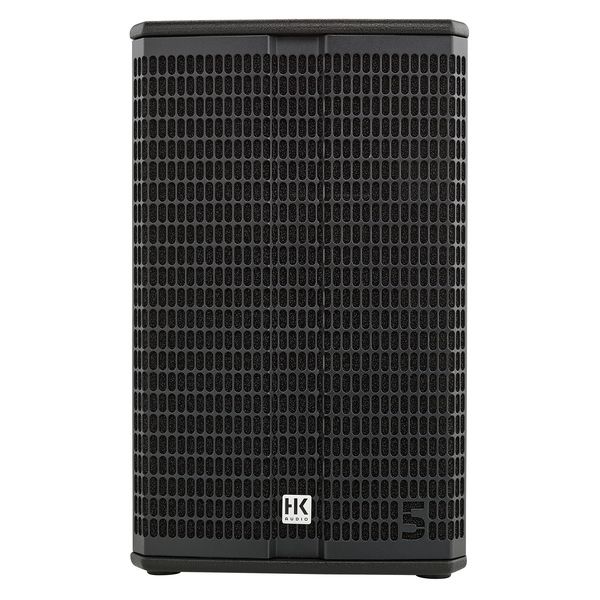

    Active Multifunctional Loudspeaker

    • With integrated 1200 Watt Class D power amplifier
    • Speaker configuration: 1x 12" LF + 1" HF with 1.75" voice coil
    • Frequency range: 67 - 19000 Hz (+/- 10 dB)
    • Maximum level: 136 dB
    • FIR crossover with 72 db/oct
    • Remote controllable via internal DSP and network capability
    • DSP functions: Fully parametric 10-band EQ with variable filter characteristics, high-pass filter, low-pass filter, polarity, level, delay, limiter, mute

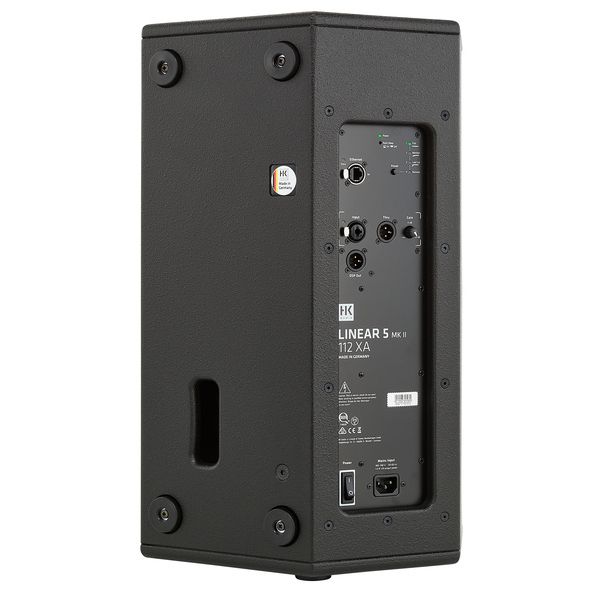

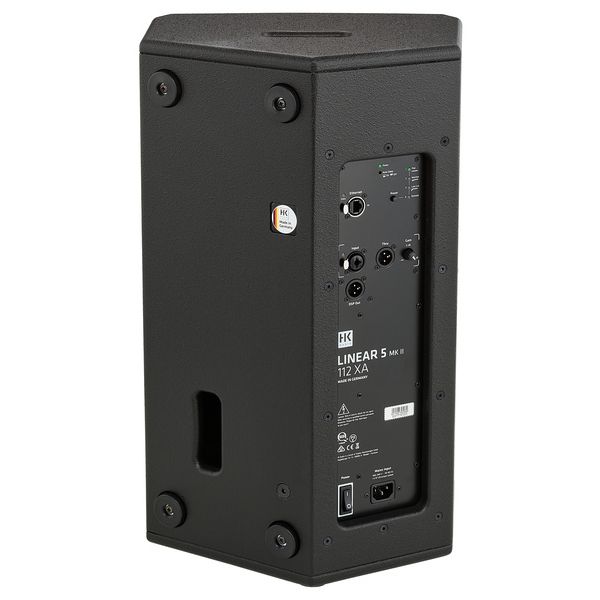

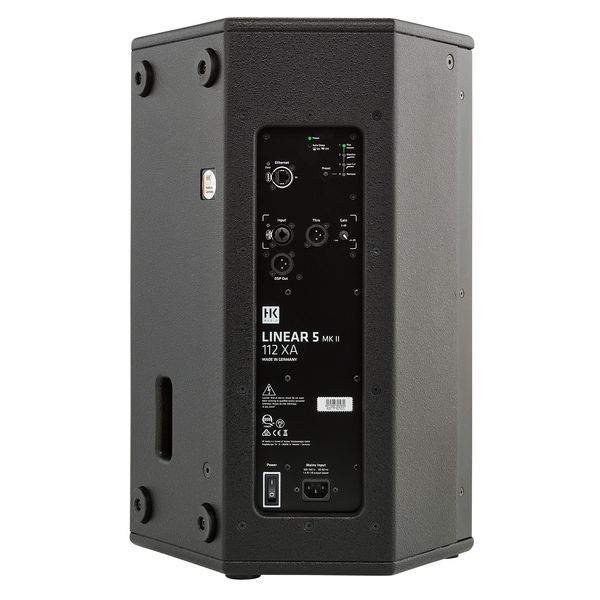

    • Connector panel with 1x XLR/6.3 mm jack combo input, 1x Ethernet In, 1x XLR Thru, 1x XLR DSP Out
    • Switchable EQ (Flat, Monitor, Low Cut, Remote)
    • Dispersion angle: 80° x 60° (H x V, rotatable)
    • Housing material: birch plywood/MDF
    • Rigging points: 3x M8
    • DuoTilt stand flange

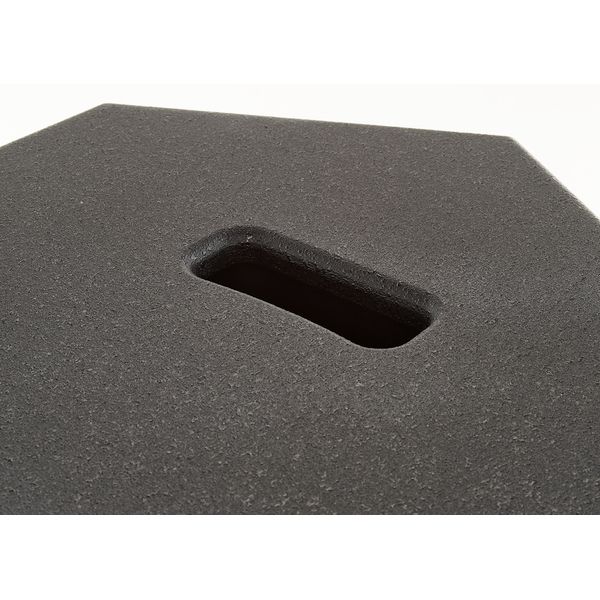

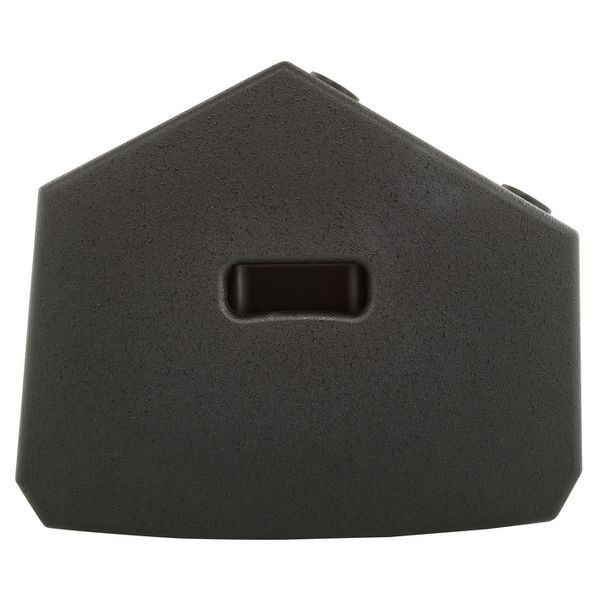

    • 2 Handles
    • Dimensions (W x H x D): 360 x 590 x 305 mm
    • Weight: 17.6 kg
    • Colour: Black
    • Matching cover: Art.559350 (not included in delivery)
    • Available sinceFebruary 2023
    • Item number559340
    • Sales Unit1 piece(s)
    • Power (Manufacturers Specs)1200 W
    • Bass Speaker in Inch12"
    • Ways2-Way
    • ColourBlack
    • Weight17,6 kg
    • Housing MaterialWood
    • Analog Inputs2
    • Microphone Input1
    • Line OutXLR
    • Media PlayerWifi Play
    • Remote ControlRJ45
    • EffectsNo
    • Low CutYes

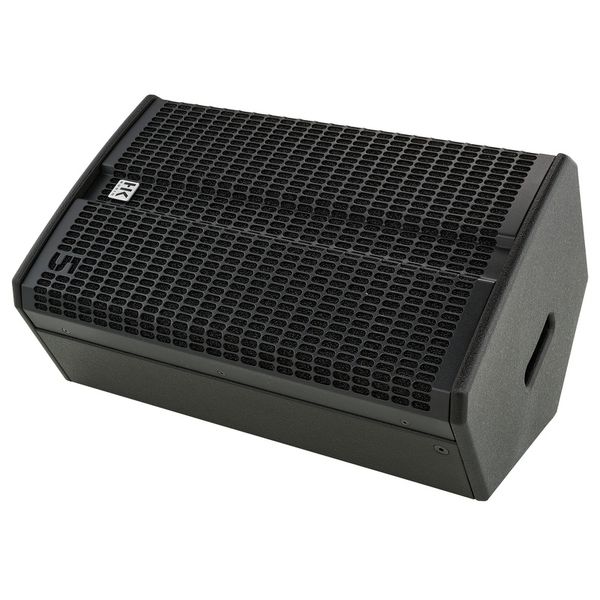

    • Monitor AngleYes
    • Width360 mm
    • Depth305 mm
    • Height590 mm
    • Sound Pressure in dB136 dB
    • Number of HT Speakers1
    • Number of HT Speaker1
    • HT Speaker in Inch1
    • Number of Midrange Speaker0
    • Midrange Speaker in Inchwithout
    • Number of Bass Speaker1
    • Number of Bass Speakers1
    • AccuNo
    • Stand Flange35 mm
    • ConstructionStandard
    • FlyableM8
    • Mounting PointM8
    • Line InputYes
    • Horizontal Beam Angle60 °
    • Vertical Beam Angle70 °
    • Handheld / HeadsetNo
    • Frequency Range (-10dB) from67 Hz
    • Frequency Range (-10dB) to19000 Hz
    • Frequency Range (-3dB) from73 Hz
    • Frequency Range (-3dB) to12000 Hz
    • Active CoolerYes
