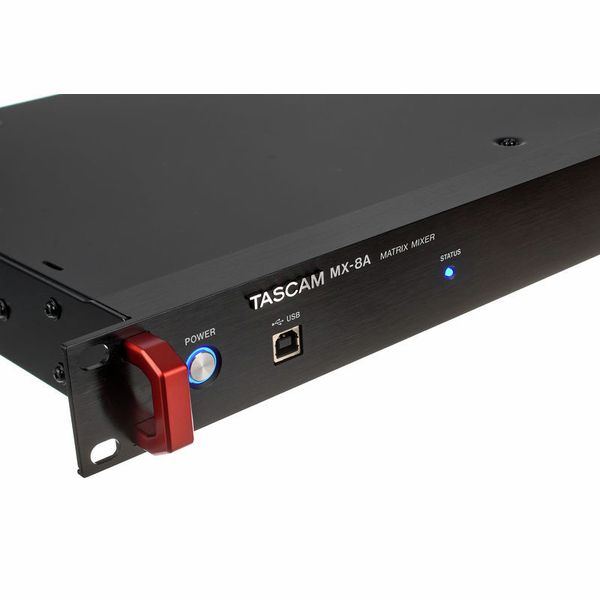

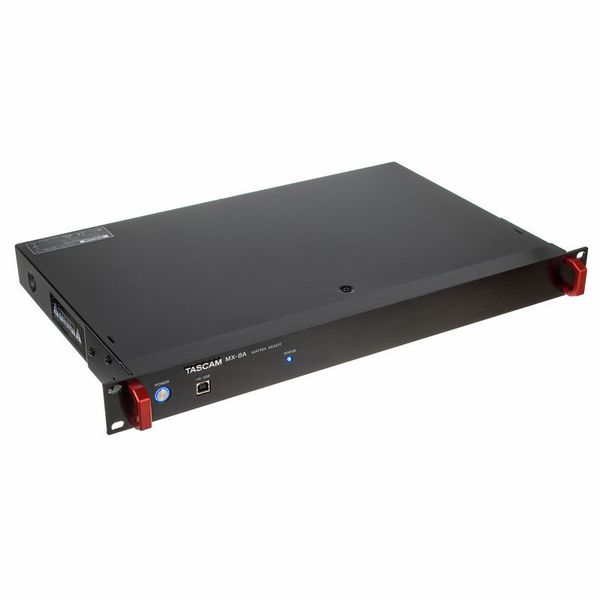

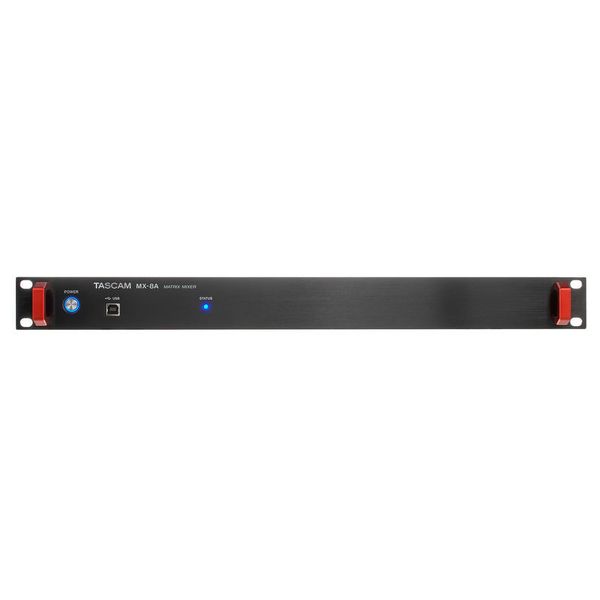

Tascam MX-8A

Quantity
ADD TO CART
BUY IT NOW
  • Detail

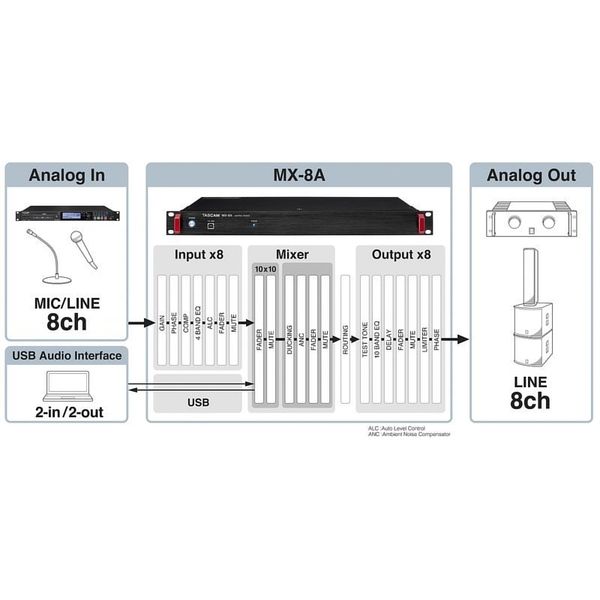

    8-Channel Matrix Mixer and USB Audio Interface with DSP Processor

    • 16/24 Bit / 44.1/48 kHz
    • Controllable via Ethernet, RS-485 and RS-232C
    • Controllable functions for input section: Phantom power on/off, polarity, sensitivity, input level, automatic level adjustment, 4-band EQ, mute, fader
    • Controllable functions for mixer: Matrix mixer, ducking, noise compensation (ANC), routing
    • Controllable functions for output section: 10-Band EQ, delay, mute, fader, limiter, polarity
    • Up to 50 presets can be saved
    • 8 Analogue microphone / line inputs
    • 8 Analogue line outputs

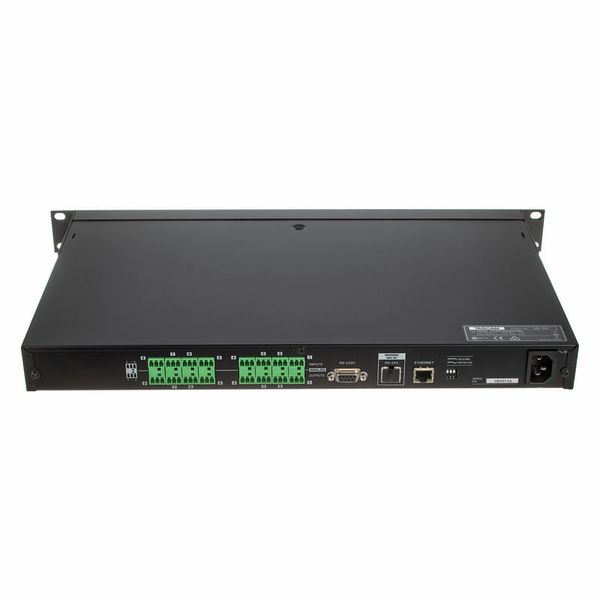

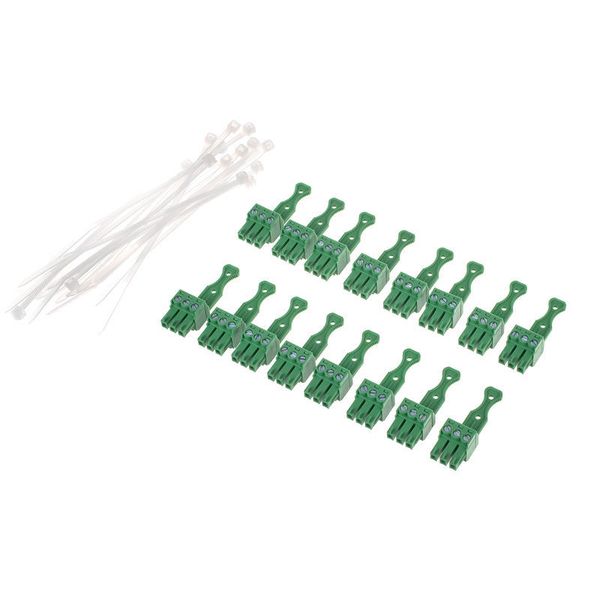

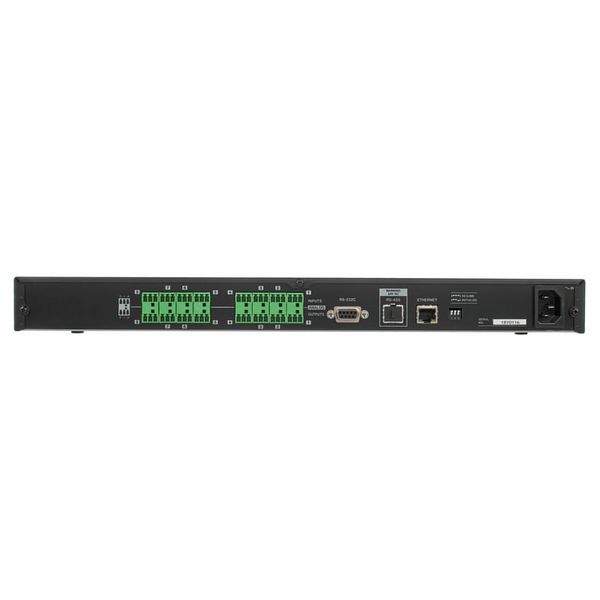

    • Inputs and outputs via balanced Euroblock connectors with 3.81 mm spacing
    • USB 2.0
    • Pitch: 3.81 mm
    • Build: 19" / 1 U
    • Dimensions (W x H x D): 483 x 45 x 304 mm
    • Weight: 3 kg
    • Available sinceNovember 2020
    • Item number463750
    • Sales Unit1 piece(s)
    • simultaneously used channels8
    • Mic-In8
    • Stereo-In0
    • Master OutPhönix Clamp
    • Pre Aux max.0
    • PC-InterfaceUSB-B
    • Multitrack-RecordingYes
    • USB/SD Direct RecordNo
    • Effect ProcessorYes
    • USB PlayNo
    • Bluetooth PlayNo

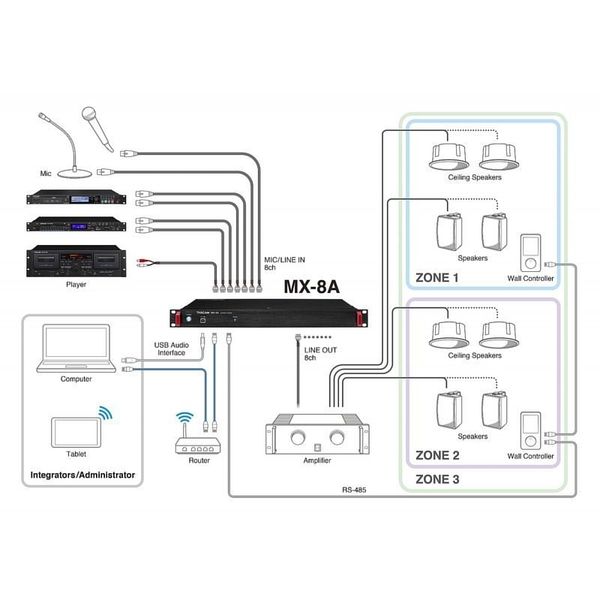

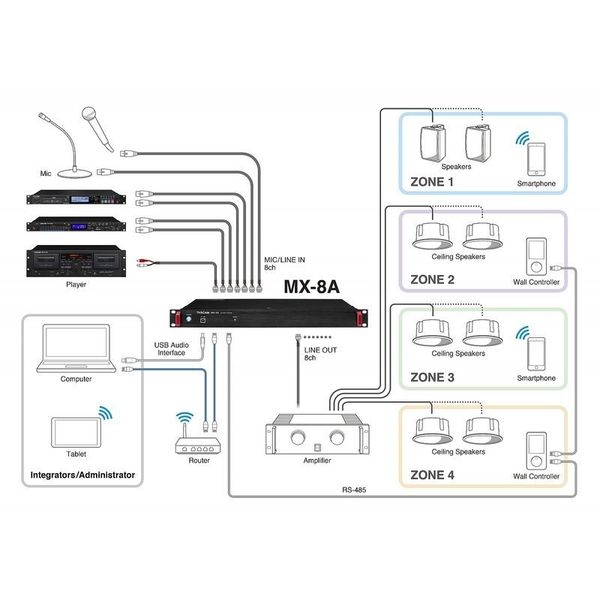

    • Zones8
    • Width483 mm
    • Recording / Playback Channels8x8
    • Height45 mm
    • 19" Rack CompatibleYes
    • Depth304 mm
    • Mono Input Channels8
    • Number of Mic Inputs8
    • altezza45 mm
    • Number of Line Inputs8
    • Stereo Input Channels0
    • Weight3 kg
    • Instrument Inputs0
    • Number of Outputs8
    • Simultaneous channels8
    • Number of Line Outs8
    • Headphone Outs0
    • Mono Line-in8
    • Phantom powerYes
    • Number of S/PDIF Connectors0
    • Hi-Z Input0
    • Number of ADAT Connectors0
    • Phantom Power48V
    • Numer of AES/EBU Connectors0
    • Number of MADI Connectors0
    • Aux Ways0
    • Word Clock0
    • Ethernet1
    • Other ConnectorsEuroblock
    • max. Pre Aux Channels0
    • PC InterfaceUSB-B
    • Audio Interface Input8
    • Interface Input2
    • Max. sample rate (kHz)48 kHz
    • Audio Interface Output8
    • Interface Output2
    • Max. resolution in bit24 bit
    • USB/SD Direct RecordingNo
    • Incl. power supplyYes
    • Low CutYes
    • USB Version2.0
    • Width in mm483 mm
    • ParametricYes
    • Depth in mm304 mm
    • CompressorYes
    • Height in mm45 mm
    • PanoramaYes
    • PFLYes
    • FX Processor0
    • Racklight ConnectorNo
    • Lamp connectionNo
    • FootswitchNo
    • Included in deliveryPowercord
    • Foot switchNo
    • Bag245858
    • Matrix MixerYes
    • MatrixmixerYes
    • Zero latency monitoringYes
    • 19" RackmountYes
    • Connection FormatUSB port Type B
    • RackmountYes
    • Case ThomannNo
    • Case Thon103456
