the t.bone freeU Twin PT 823 Em-D Bundle

Quantity
ADD TO CART
BUY IT NOW
  • Detail

    Bundle offer comprising

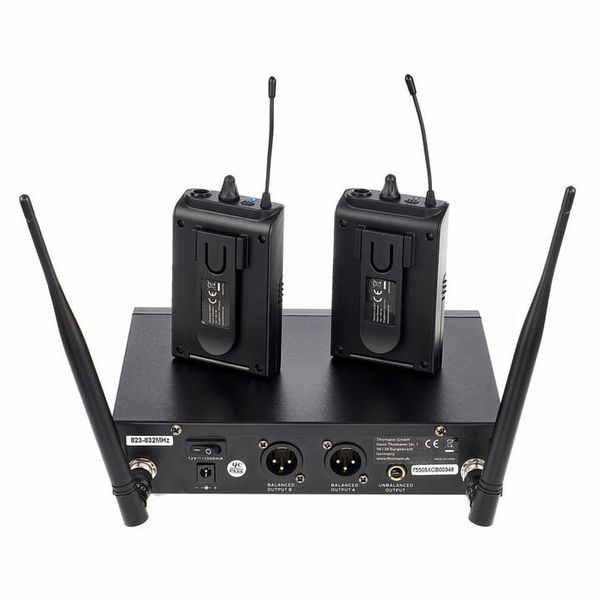

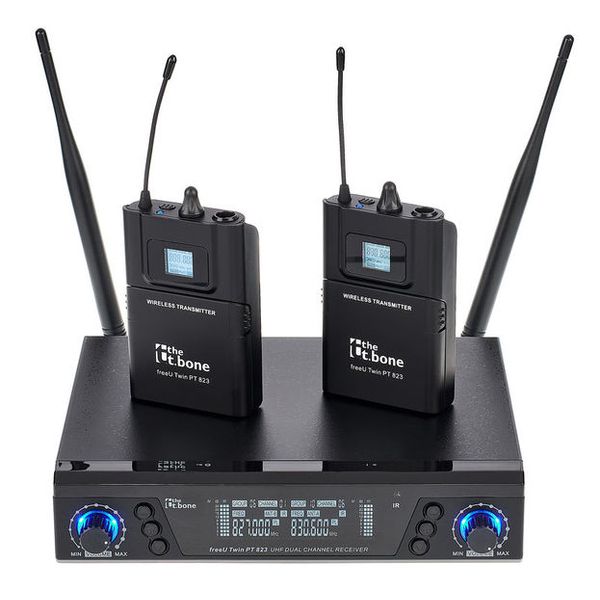

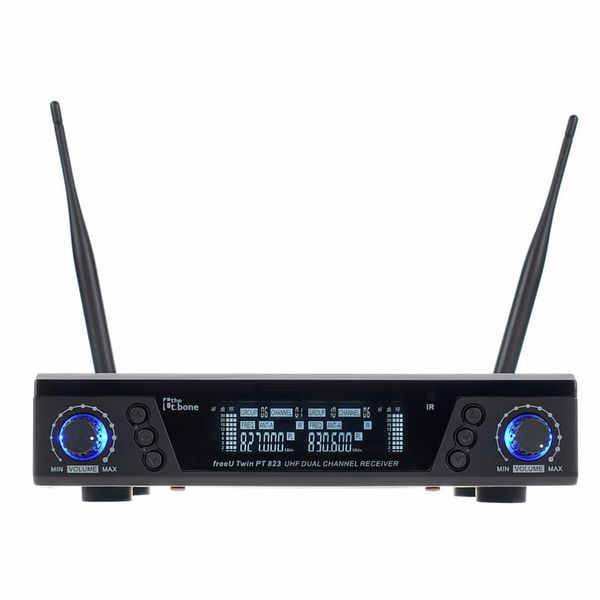

    the t.bone freeU Twin PT 823

    2-Channel UHF Wireless System

    • With pocket transmitter and guitar cable for instrument applications
    • Frequency band: 823 - 832 MHz
    • Frequency range: 50 - 16,000 kHz
    • 10 Pre-programmed frequency groups with 10 available channels each
    • Auto squelch
    • Frequency scan in the receiver
    • Adjustable AF output
    • Transmission power: 30 mW
    • Infrared transfer of the settings from the receiver to the transmitter
    • Pilot tone
    • Increments of 80 kHz
    • Modulation type: F3E
    • LC display
    • 2 BNC connectors for antennas
    • 2 XLR outputs and 1 jack output
    • Operates with a 12 V, 1 A DC power supply, centre positive
    • Transmitter housing: Plastic
    • LC display
    • Operates with 2 AA batteries or rechargeable batteries
    • Housing: 9.5", 1 U
    • Includes guitar cables, antennas, EU power supply and rack kit for the installation of a 1 U receiver
    • Suitable antenna converter: Art. 177448 (not included)

    Note: A maximum of 2 systems (4 channels in total) can be operated simultaneously in this frequency band.

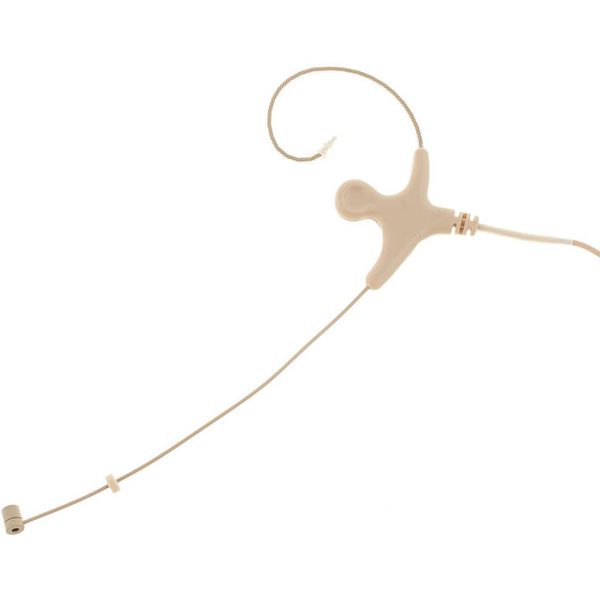

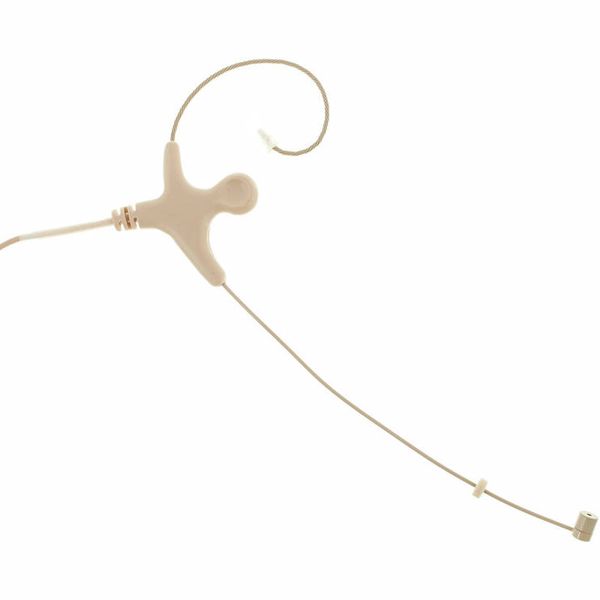

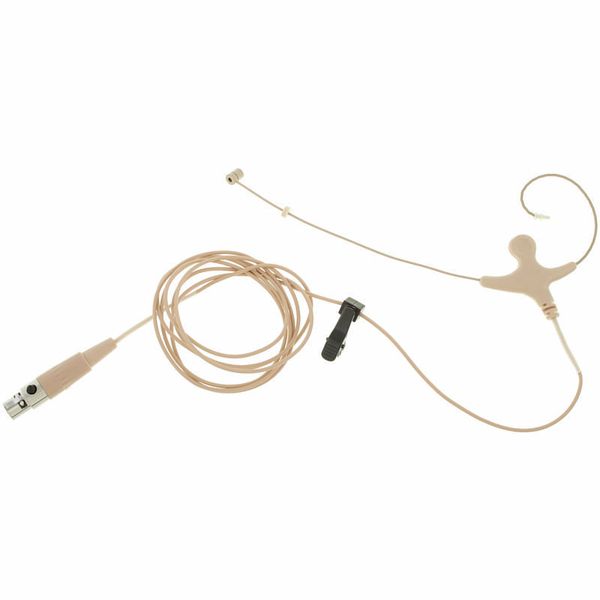

    2x the t.bone EarmiKe - D AKG

    Lightweight One-Ear Headset Microphone

    • Suitable for all ears due to flexible suspension
    • Condenser capsule
    • Polar pattern: Cardioid
    • Frequency range: 50 - 20,000 Hz
    • 4.4 mV / Pa
    • -47.1 dB re 1 V / Pa
    • Sound pressure level limit: 115 dB
    • Impedance: 750 Ohm
    • 3-pin Mini XLR connector suitable for AKG Bodypack transmitter
    • Colour: Beige
    • Cable length approx. 120 cm
    • Includes cable clip and foam windscreen
    • Available sinceAugust 2018
    • Item number445928
    • Sales Unit1 piece(s)
    • Headset Cannels2
    • Transmission Formatanalog
    • Frequency823 MHz – 832 MHz
    • Receiver TypeStationary
    • PatternCardioid
    • Earset1 Ear
    • Mountable AntennaBNC
    • Charging SystemNo
    • Integrated batteryNo
    • DanteNo
    • DiversityYes
    • Capsule TypeCondenser
    • Mic Model349293
    • Microphone ColourBeige
    • Transmission power in mW30 mW
    • Usable Frequecies100
    • Switching Bandwidth in MHz9 MHz
    • Frequency DisplayYes
    • Automatic Frequency SearchYes
    • Battery Power DisplayYes
    • RackkitYes
    • OutputXLR
    • Receiver Width in mm210 mm
    • Receiver Height in mm44 mm
    • Receiver Depth in mm200 mm
    • Receiver Weight in Kg0,9 kg
  • Customer Reviews
    No comments
