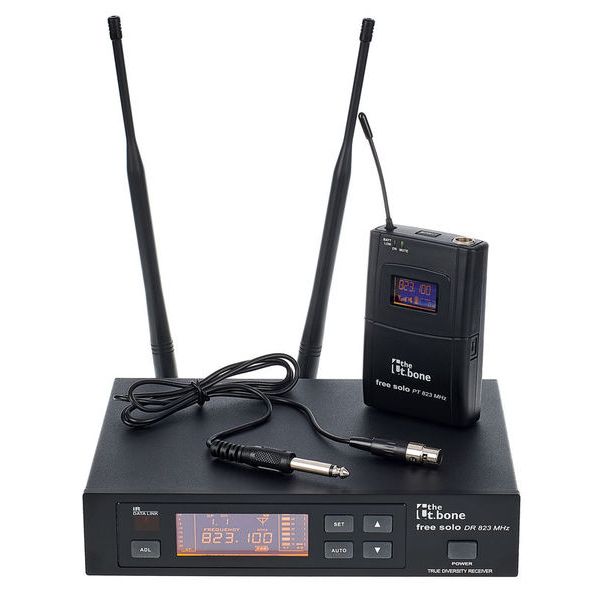

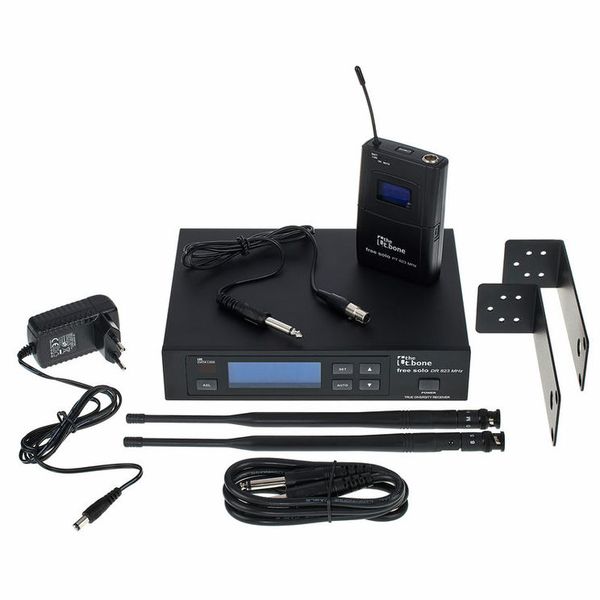

Bundle offer comprising
the t.bone free solo PT 823 MHz
Wireless System for Guitar or Bass

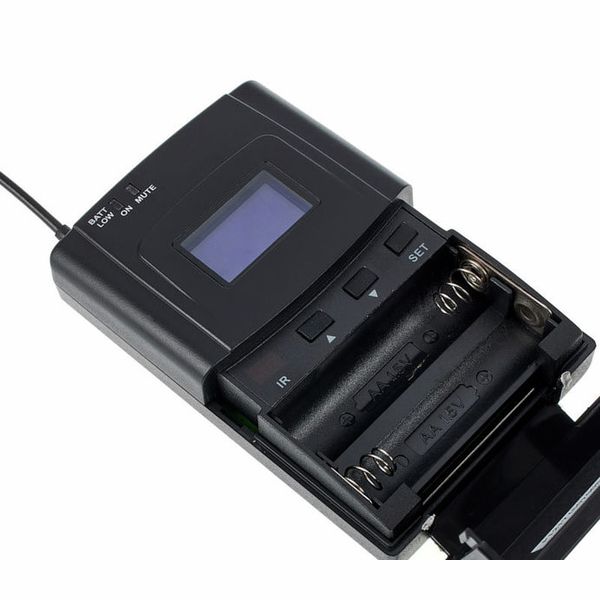

- UHF wireless system with a pocket transmitter
- 8 Pre-programmed frequency groups with 8 available channels each
- 1 User channel

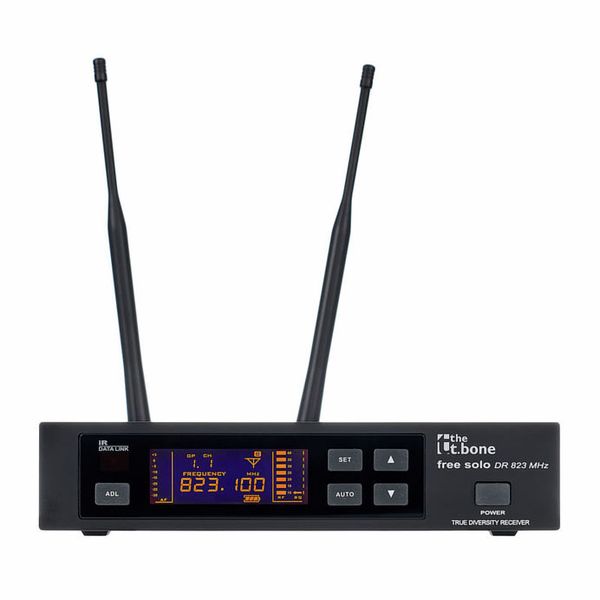

- Adjustable squelch with threshold display on the receiver
- Frequency scan in the receiver
- Adjustable AF output
- Adjustable transmission power: 5 mW, 10 mW, 20 mW
- Infrared transfer of the settings from the receiver to the transmitter
- Pilot tone
- Increments of 25 kHz

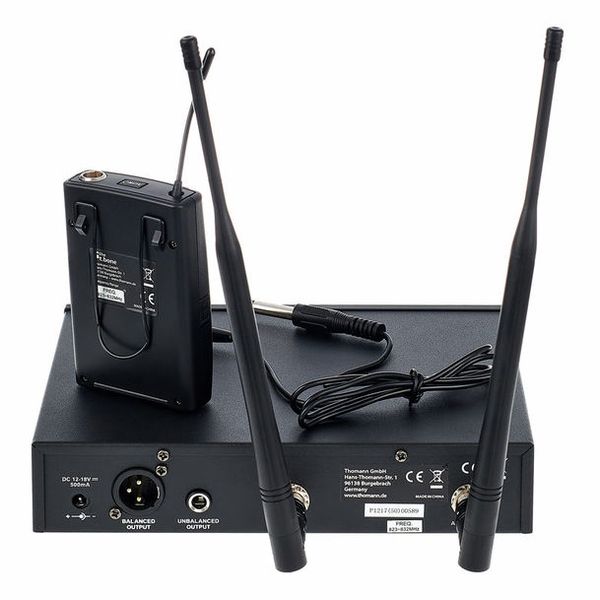

- Housing: 9.5", 1 U with 2x BNC outputs for antennas
- XLR- and jack output
- Operates with a 12 V, 0.5 A DC power supply (positive polarity (+) inside)

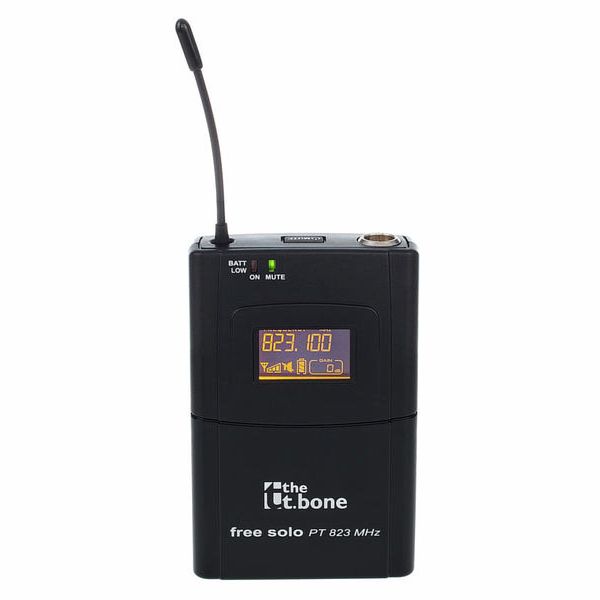

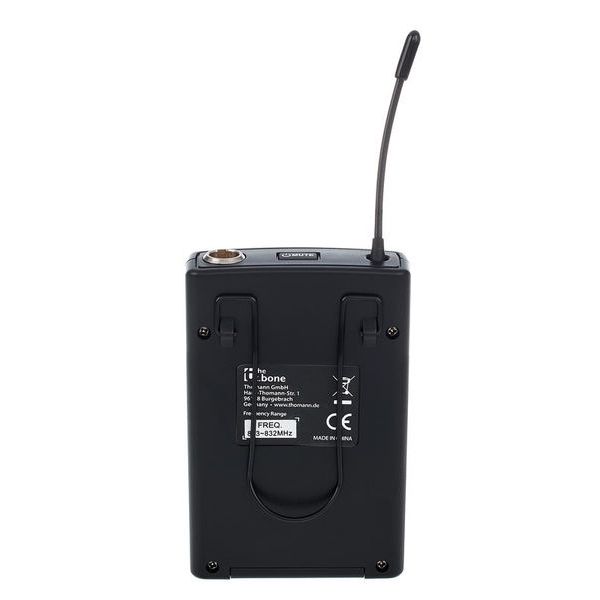

- Transmitter housing: Plastic
- 3-Pin TQG male connector
- LCD display
- Operates with 2x AA batteries or rechargeable batteries (not included)
- Frequency band: 823 - 832 MHz

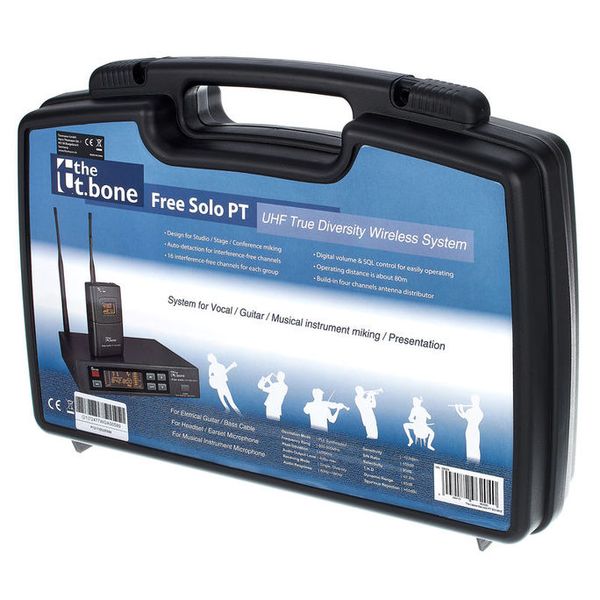

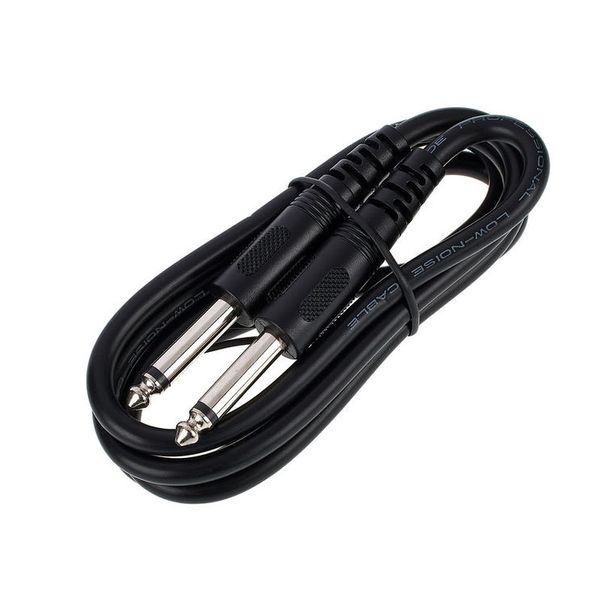

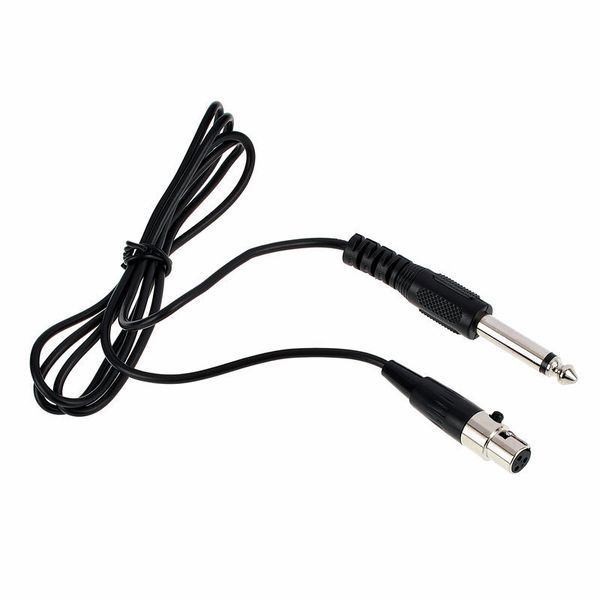

- Includes a guitar cable, plastic case and rackmount
- Optional antenna converters available under Article Nr 177448 (not included)

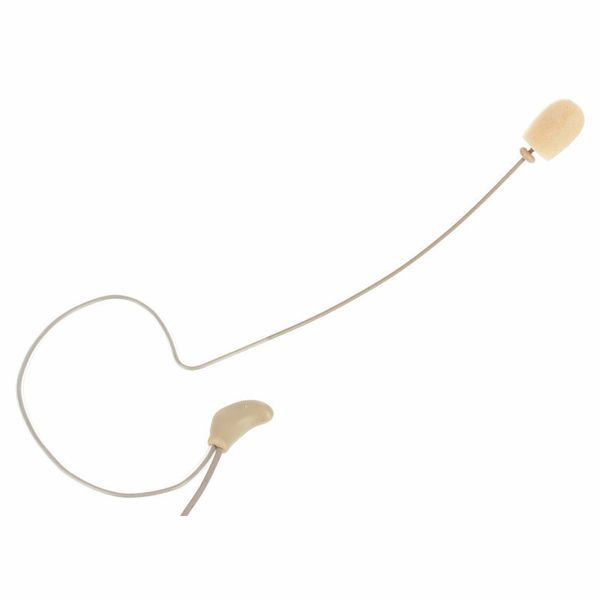

the t.bone Earmic 500 - AKG
Microphone with Earset

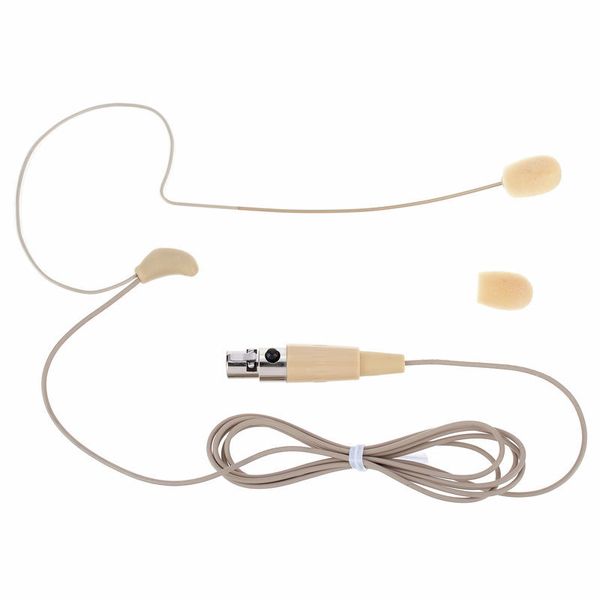

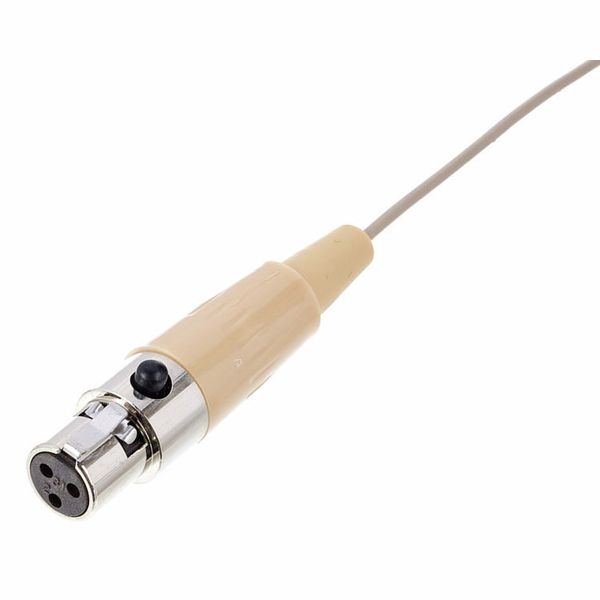

- With L-connector (3-pin mini XLR) for all AKG wireless systems
- Medium sensitivity
- Directional characteristic: Omnidirectional
- Frequency response: 50 - 20,000 Hz
- Weight: 13 g
- Colour: Beige

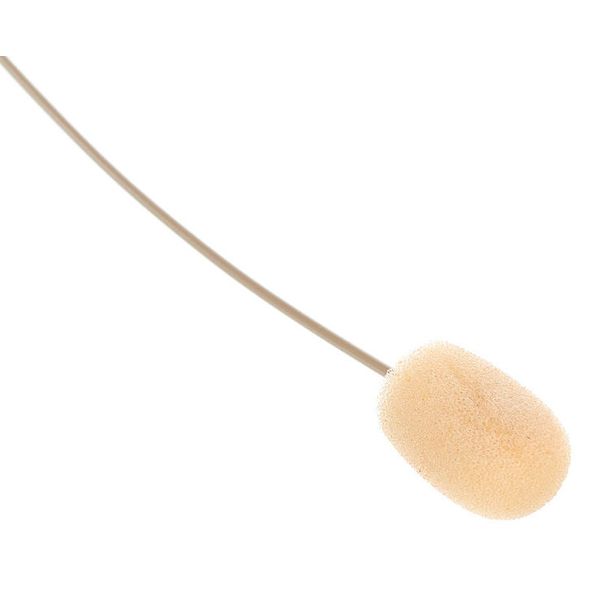

- Suitable replacement windscreen available under Article Nr 185514 (not included, must be ordered separately)
Available sinceFebruary 2013
Item number308958
Sales Unit1 piece(s)
Headset Cannels1
Transmission Formatanalog
Frequency823 MHz – 832 MHz
Receiver TypeStationary
PatternOmnidirectional
Earset1 Ear
Mountable AntennaBNC
Charging SystemNo
Integrated batteryNo
DanteNo
DiversityYes
Capsule TypeCondenser
Mic Model182946
Microphone ColourBeige
Transmission power in mW20 mW
Usable Frequecies65
Switching Bandwidth in MHz9 MHz
Frequency DisplayYes
Automatic Frequency SearchYes
Battery Power DisplayYes
RackkitYes
OutputXLR
Receiver Width in mm212 mm
Receiver Height in mm44 mm
Receiver Depth in mm160 mm
Receiver Weight in Kg0,9 kg
