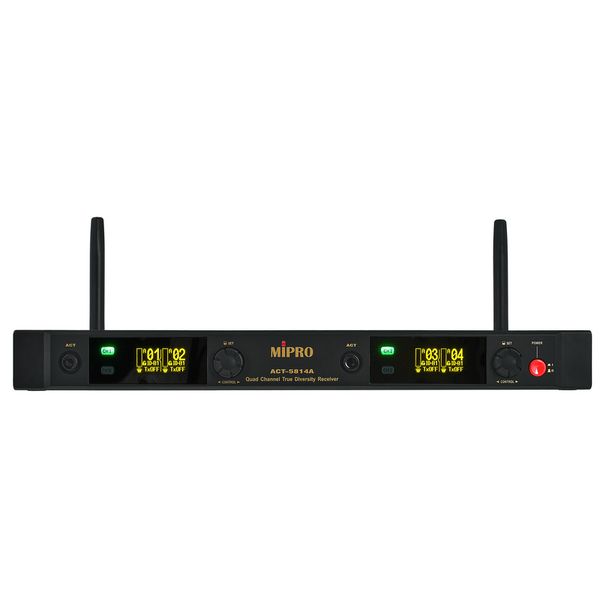

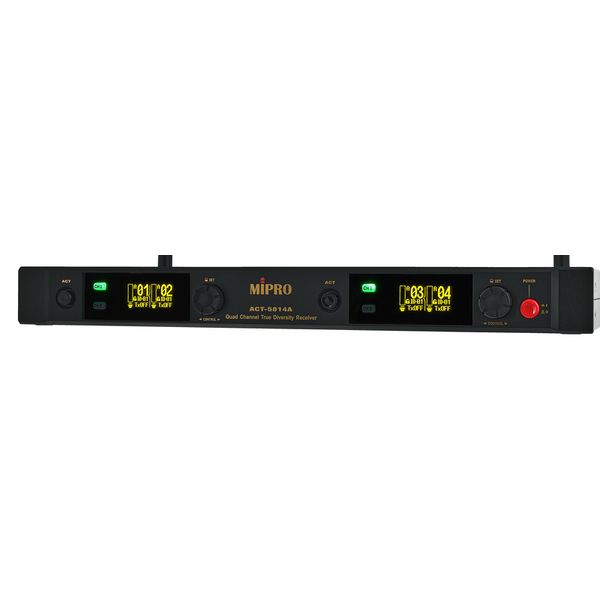

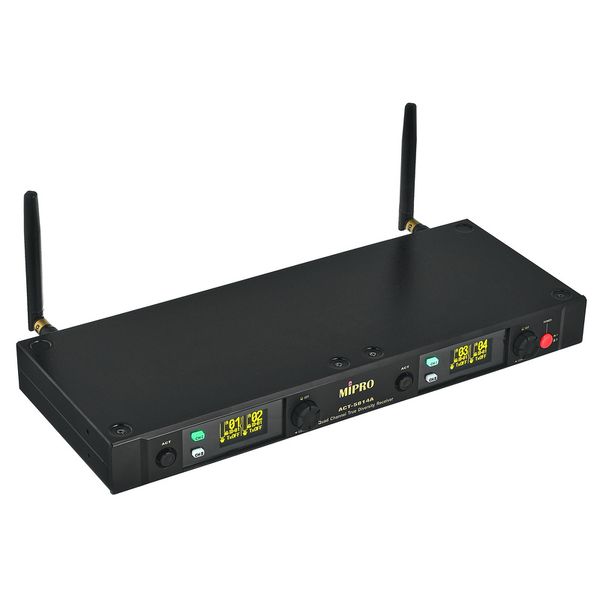

Mipro ACT-5814A

Digital 4-Channel True Diversity Receiver with Detachable Antennas and Built-In Splitter

• Frequency range: 5725 - 5850 MHz
• Antenna outputs allow cascading of up to 3 receivers with only one pair of antennas
• 12 Interference-free channels in group A
• 24 Interference-free channels in group B1 & B2
• Range up to 100 metres
• Latency < 1.7 ms
• OLED display
• Due to the use of FHSS frequency-hopping technology, each channel operates on 4 pre-set hopping frequencies
• Programmed algorithm searches frequency band for interference-free frequencies (avoids frequencies of WiFi applications)

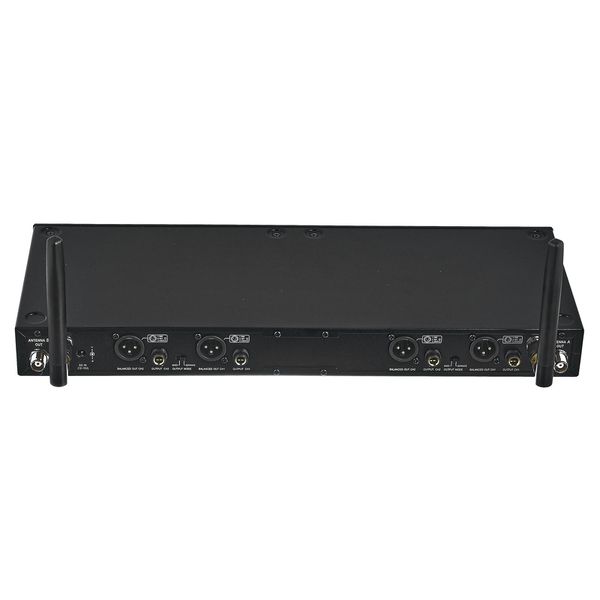

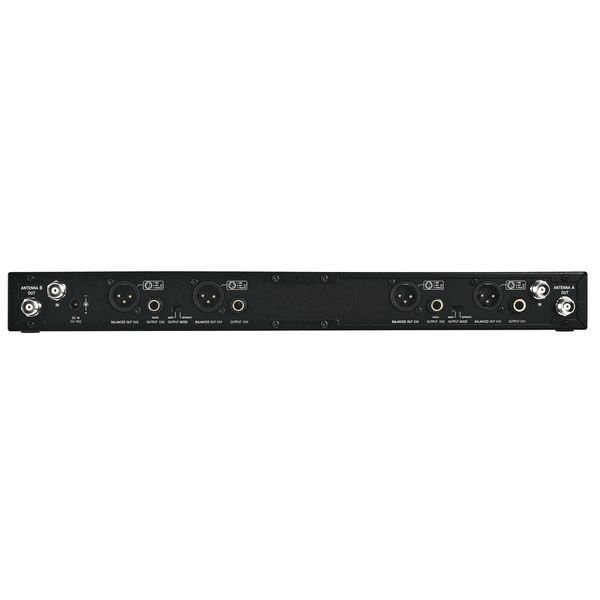

• Balanced XLR and unbalanced jack outputs
• Switchable mix output (when set to ‘MIXED�? the mixed signal is output to CH 2)
• Dimensions (W x H x D): 420 × 44 × 180 mm
• Weight: 1.5 kg
• Colour: Black

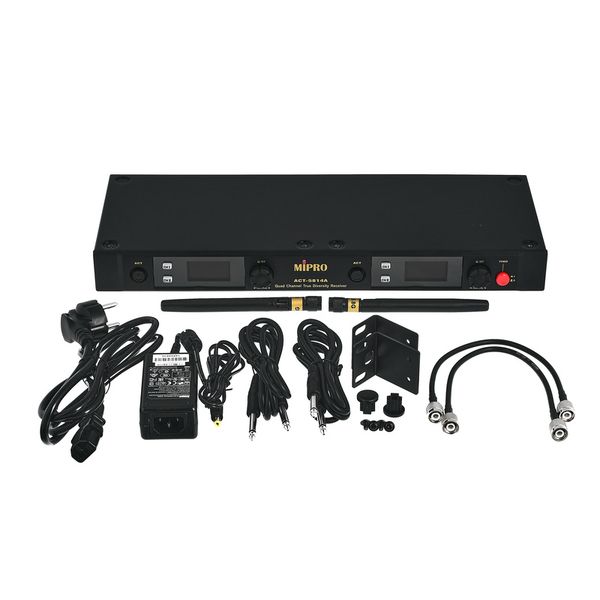

• Includes power supply and 6.3 mm jack cable
