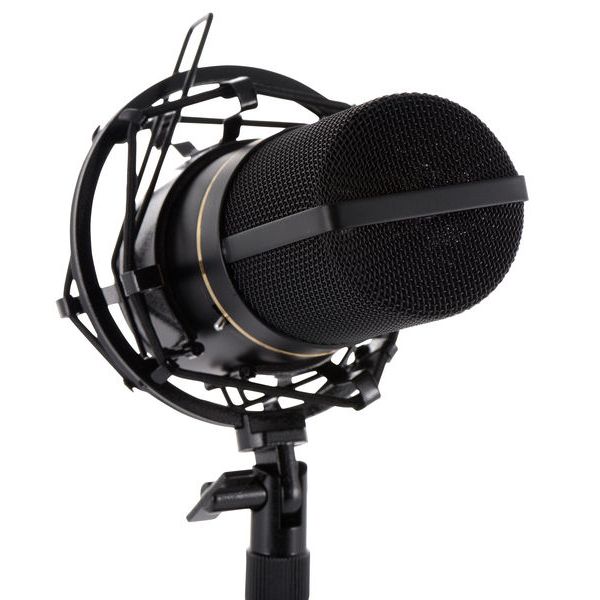

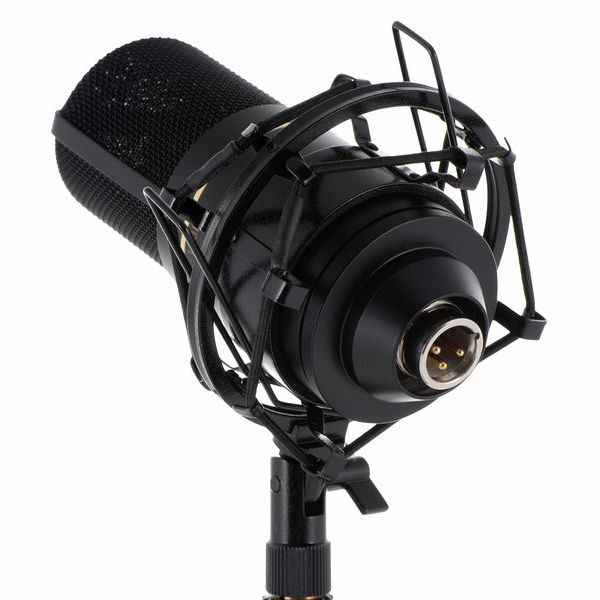

MXL 770

Large diaphragm condenser microphone

• Cardioid polar pattern
• With switchable 10 dB attenuator and impact sound filter
• Frequency range: 30 Hz-20 kHz
• Sensitivity: 15mV / Pa
• Impedance: 150 Ohm
• S/N ratio: 74 dB (Ref. 1 Pa A-weighted)
• Equivalent Noise Level: 20 dB (A weighted IEC 268-4)
• Max SPL for 0.5% THD: 137 dB
• High Pass Filter 6dB / octave, 150Hz
• Phantom Power 48V ± 4V required
• Size: 60 mm × 154 mm

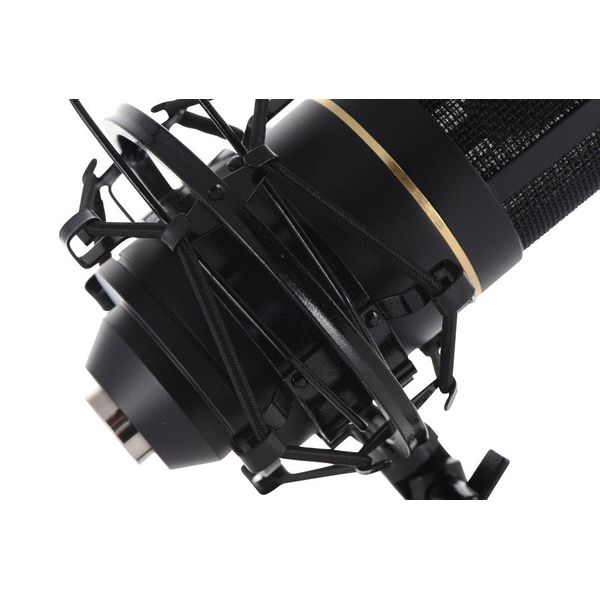

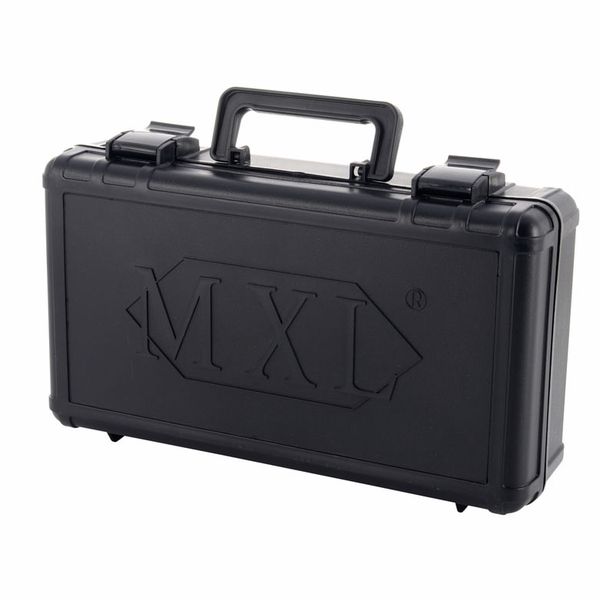

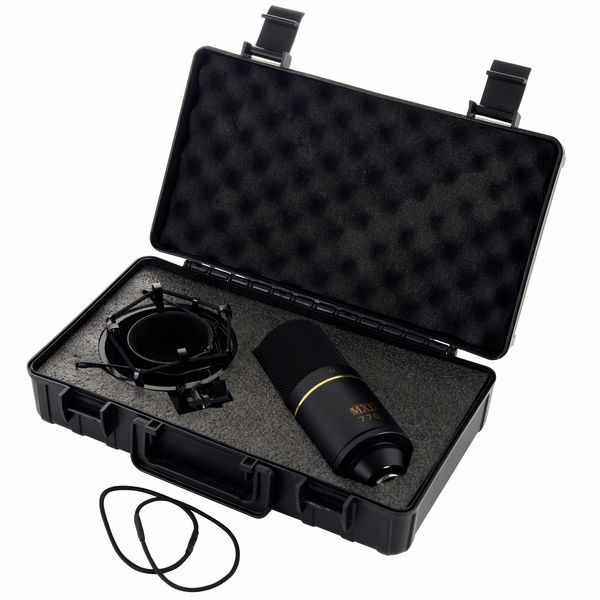

• Including microphone suspension and transport case
