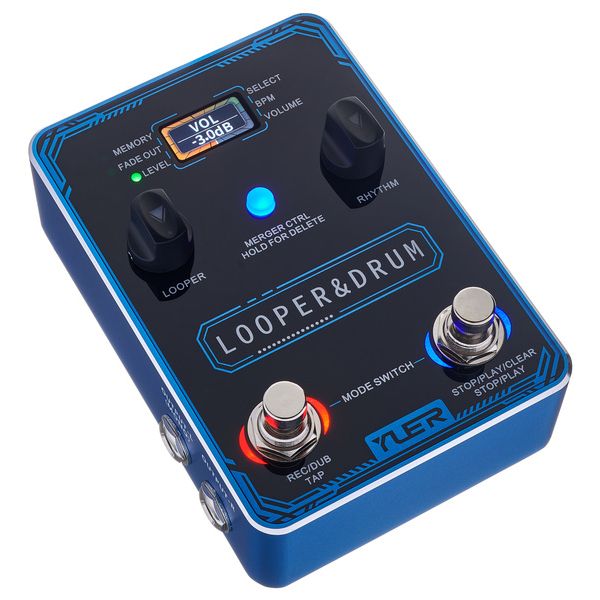

Yuer XS-04 Looper & Drum

Effect Pedal for Electric Guitar and Electric Bass

• Looper and drum machine
• Looper and drum machine can be used independently and simultaneously
• 160 Minutes total recording time
• Up to 4 minutes recording time per looper track
• 40 Memory locations for loops
• 44.1 kHz sampling rate
• Adjustable fade-out function allows tracks to fade out naturally when playback is finished
• 100 Different drum grooves from 10 different styles
• 10 Different metronome types
• Tap tempo

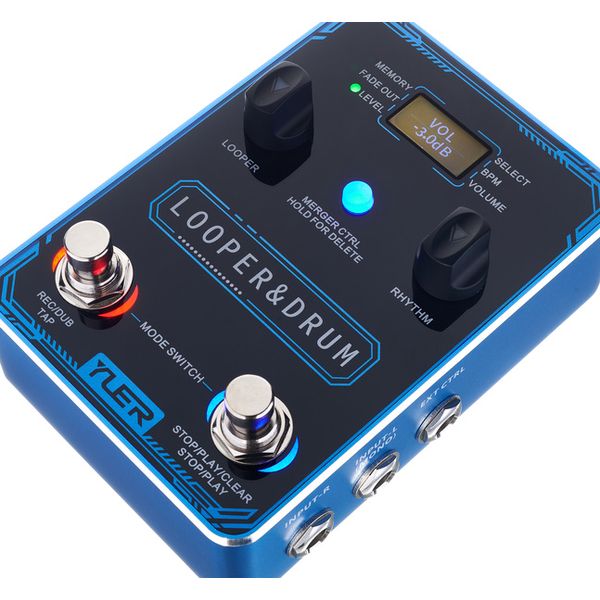

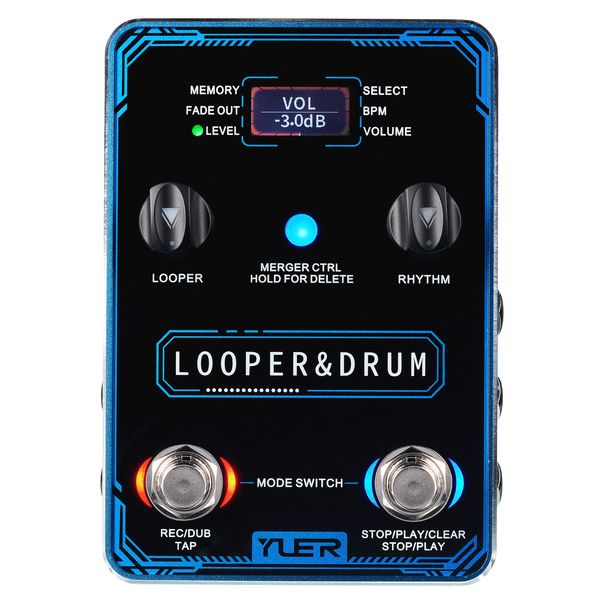

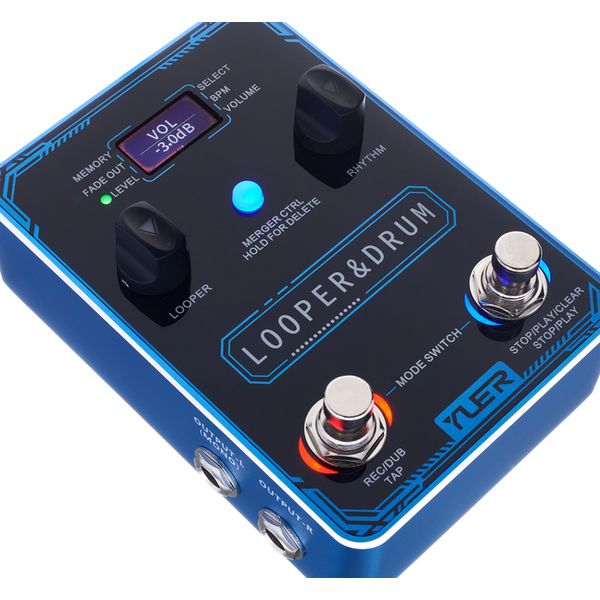

• Looper control knobs: Position, Volume Level, Fade Out Time
• Rhythm control knob: Rhythm Type, Speed, Volume Level
• Merger CTRL button
• 2 Multifunctional footswitches
• Coloured LCD display
• Status LEDs
• Aluminium housing
• Power supply via 9 V power supply unit (not included - suitable power supply unit: art. 409939)
• Power consumption: 300 mA
• Dimensions (L x W x H):125 x 87 x 35 mm
• Weight: 430 g

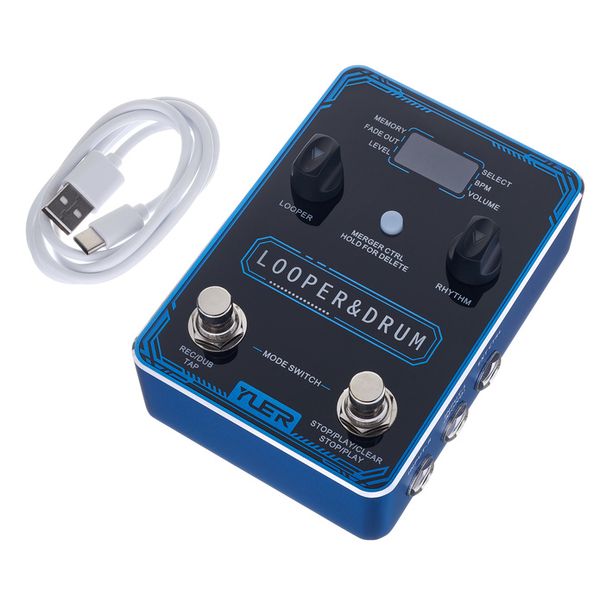

• Incl. USB Type-C cable to USB Type-A cable

Note: Battery operation is not supported.

Connections:

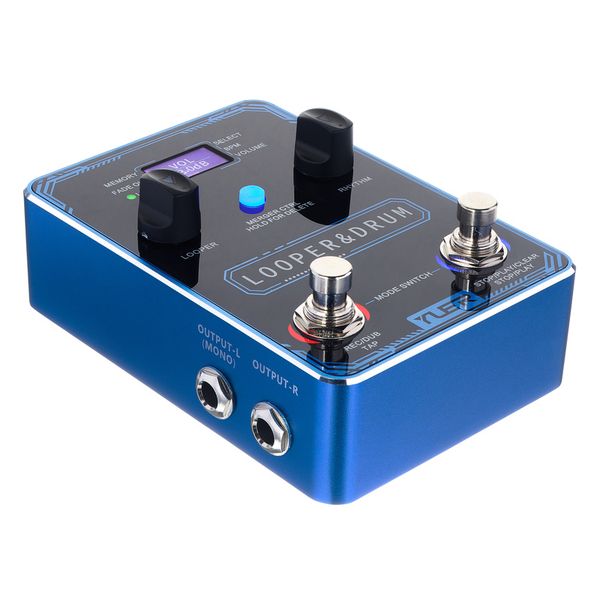

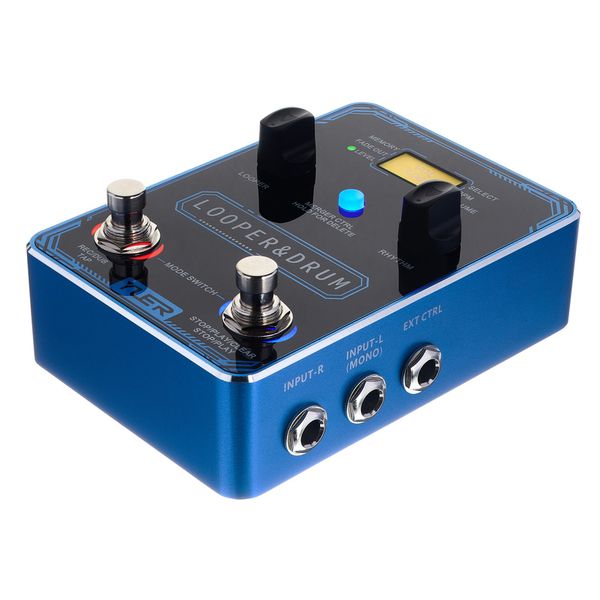

• Input/output: 2x 6.3 mm mono jack (true stereo)
• Input for external control: 6.3 mm stereo jack

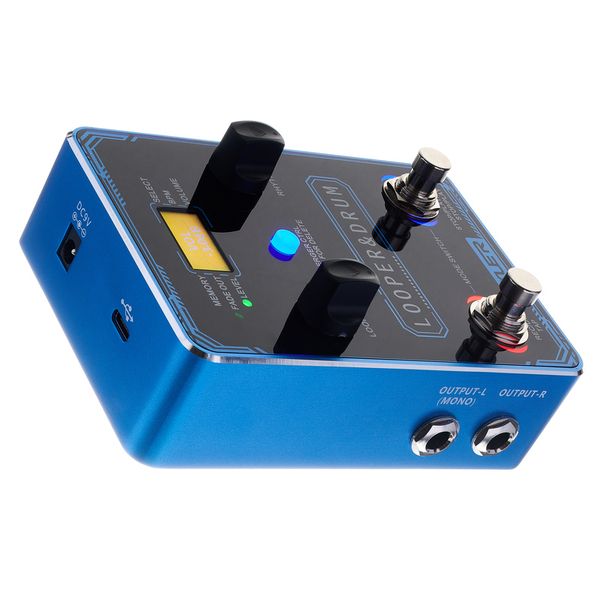

• USB Type-C port for import and export of audio files

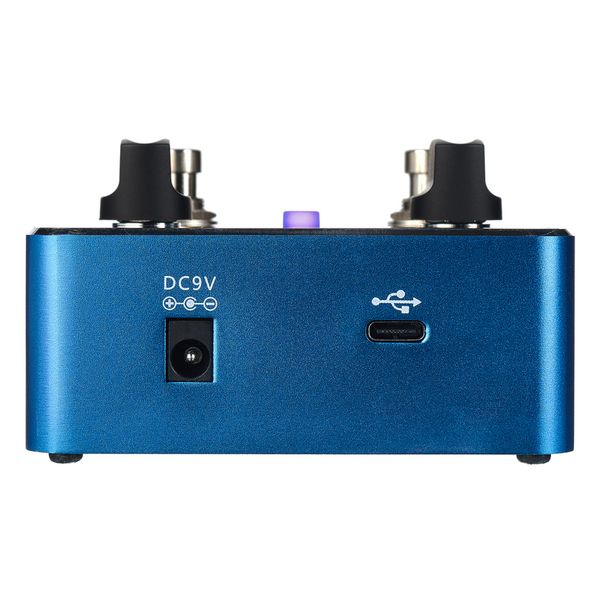

• Power supply connection - 2.1 x 5.5 mm barrel connector, polarity (-) inside
