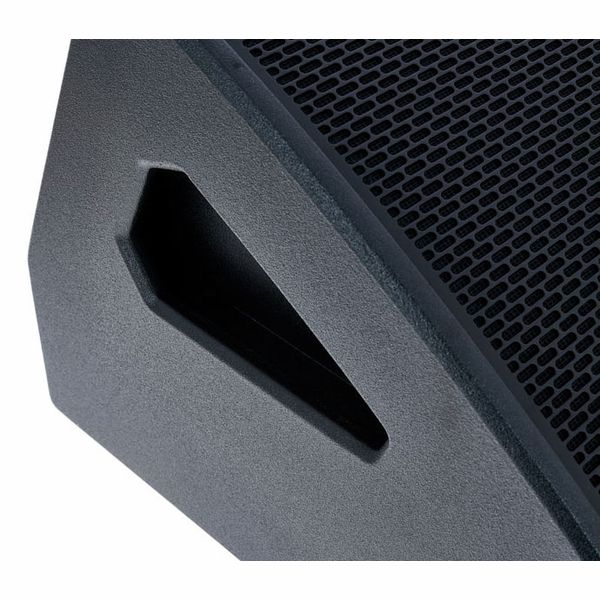

EV PXM-12MP

Quantity
ADD TO CART
BUY IT NOW
  • Detail

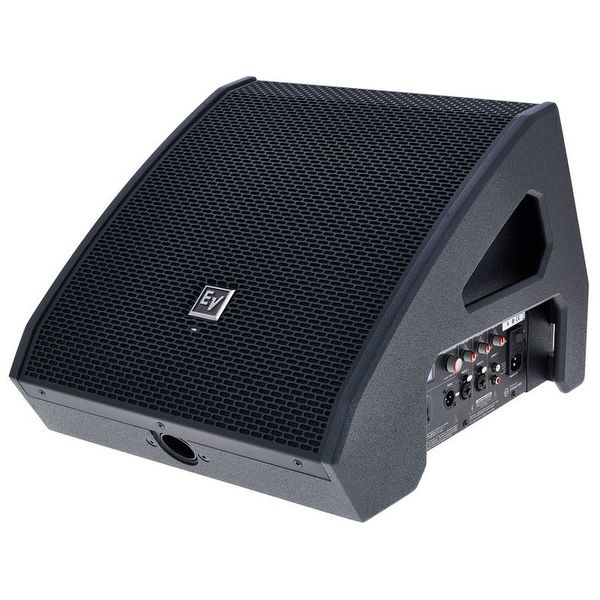

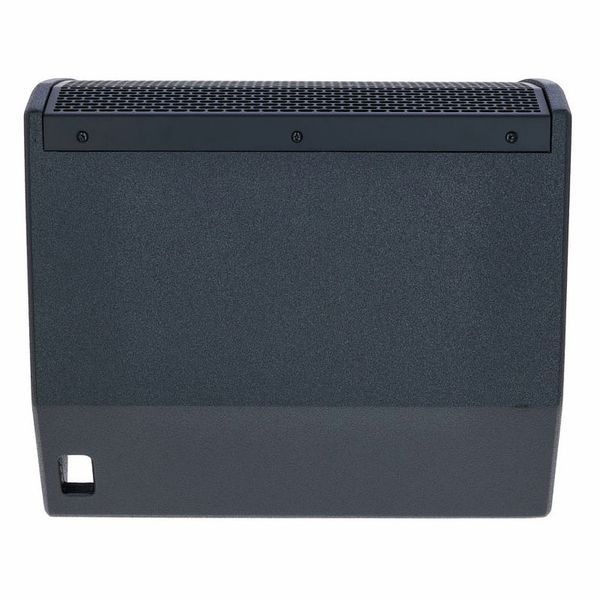

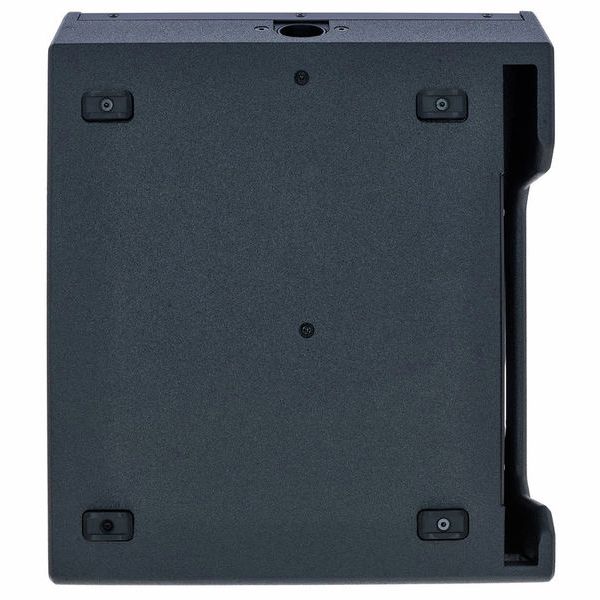

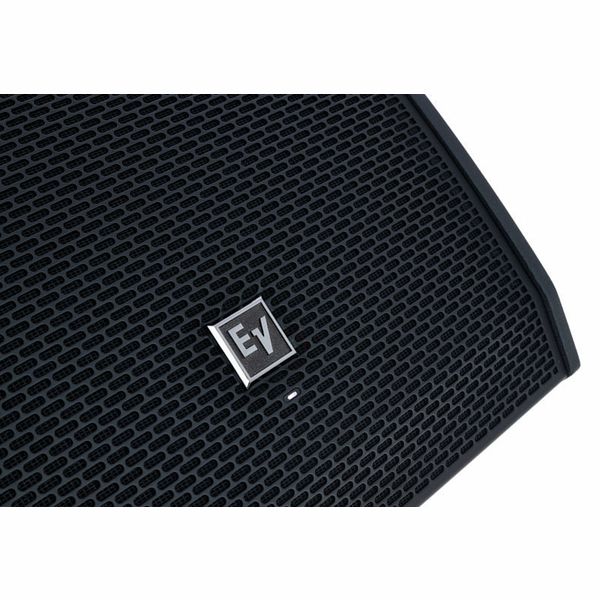

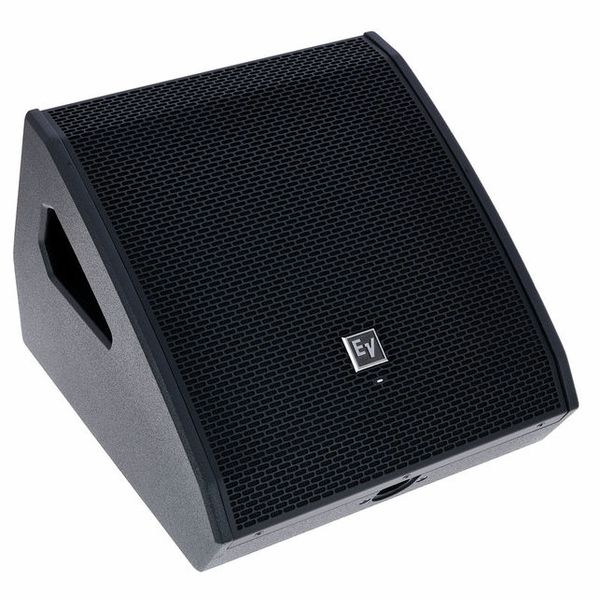

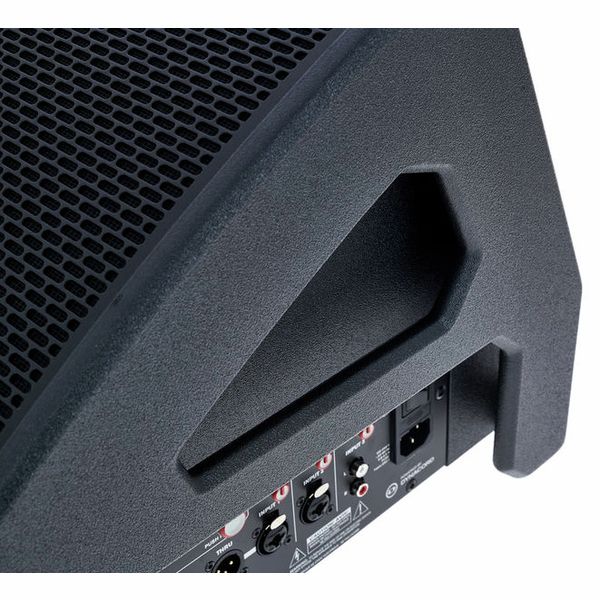

    Active 12" Coax Monitor

    • Power: 700 Watt maximum output, 500 Watt + 200 Watt RMS
    • Loudspeaker configuration: 12"/ 1x 1.75" driver
    • Maximum level: 129 dB
    • Dispersion pattern (H x V): 90° x 90°
    • Monitor slant: 55°

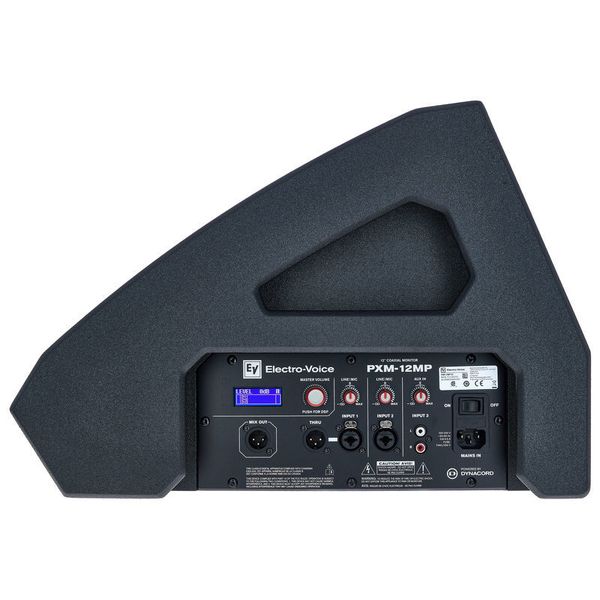

    • 2 Mic/Line inputs: XLR/jack combo socket
    • 1 Input: RCA
    • 1 Thru output: XLR
    • 1 Mix output: XLR
    • Frequency range: 64 - 20000 Hz (-3dB)
    • QuickSmartDSP with 4 EQ presets
    • High and low shelving
    • Parametric midrange EQs
    • Adjustable low-cut filter
    • Tunable feedback notch filter
    • 5 Fixed presets and recallable user settings
    • Passive cooling
    • Dimensions 334 x 409 x 484 mm
    • Weight 13.5 kg
    • Suitable protective cover: Article no. 483563 (not included)
    • Available sinceMay 2020
    • Item number483561
    • Sales Unit1 piece(s)
    • Power (Manufacturers Specs)700 W
    • Bass Speaker in Inch12"
    • Ways2-Way
    • ColourBlack
    • Weight13,5 kg
    • TrolleyNo
    • Analog Inputs3
    • Microphone Input2
    • Main EQNo
    • Low CutYes
    • Sound Pressure in dB129 dB
    • Number of HT Speaker1
    • HT Speaker in Inch1,75
    • Number of Midrange Speaker0
    • Midrange Speaker in InchNo
    • Number of Bass Speaker1
    • Width409 mm
    • Height334 mm
    • Depth484 mm
    • AccuNo
    • Housing MaterialWood

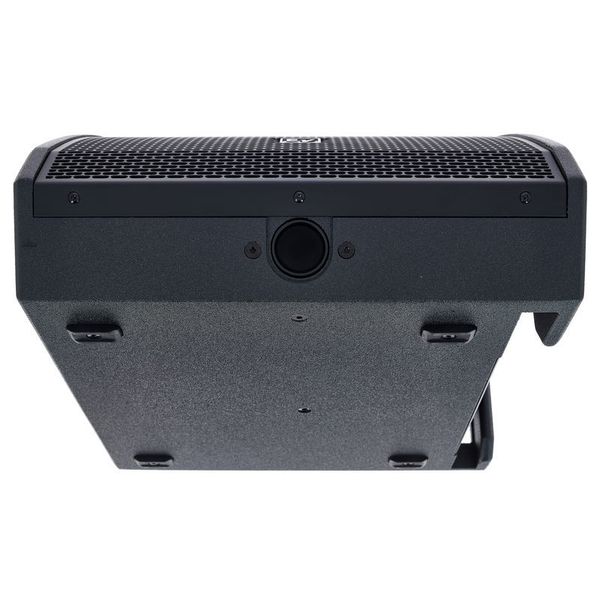

    • Stand Flange35 mm
    • FlyableNo
    • Line InputYes
    • Line OutNo
    • EQ per ChannelYes
    • Media PlayerNo
    • Remote ControlNo
    • Horizontal Beam Angle90 °
    • Vertical Beam Angle70 °
    • Frequency Range (-3dB) from64 Hz
    • Frequency Range (-3dB) to20000 Hz
