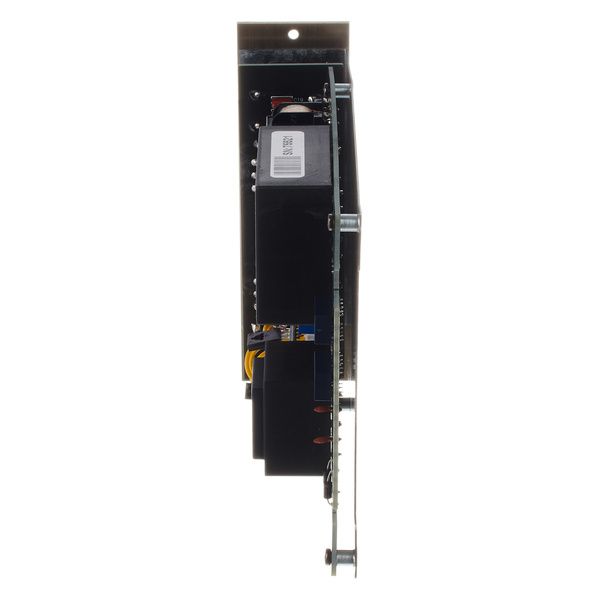

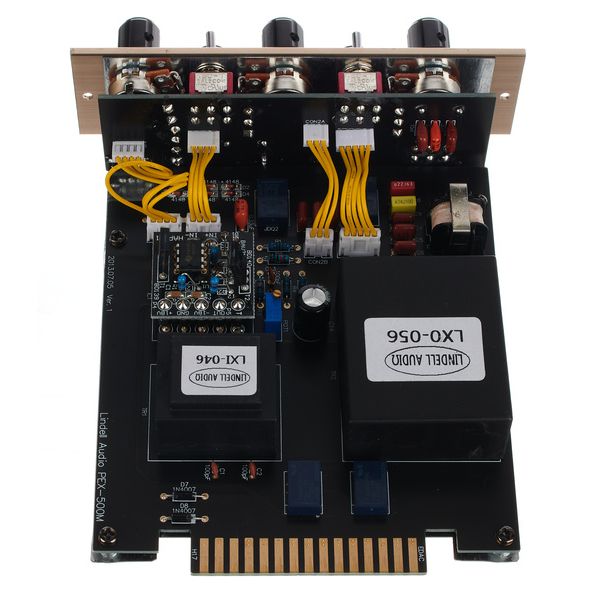

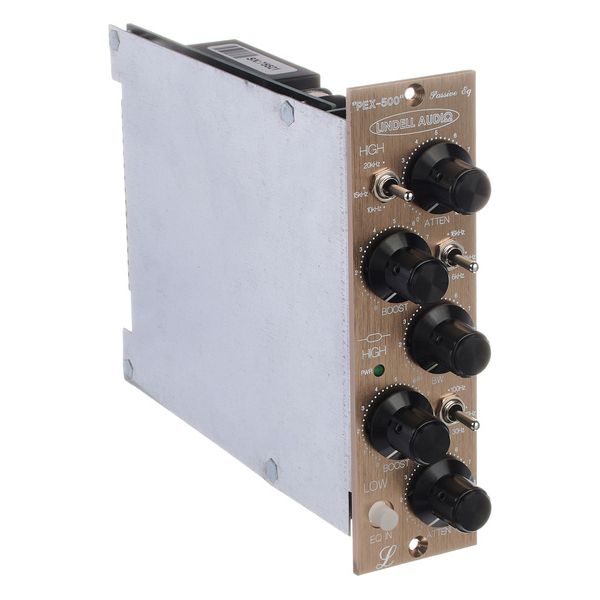

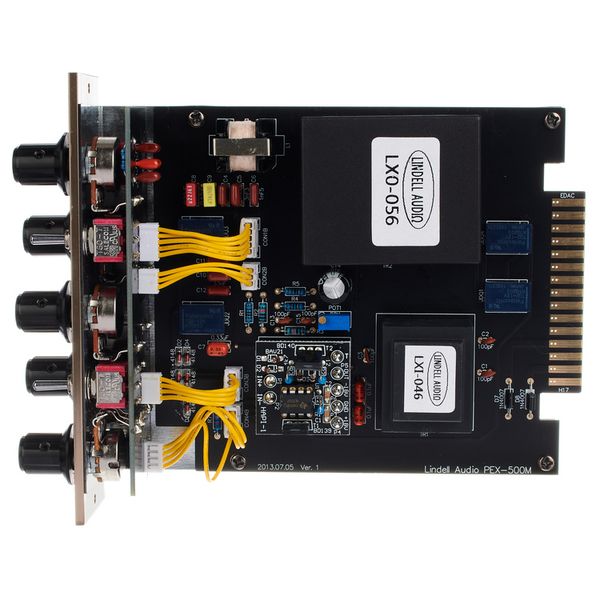

Lindell Audio PEX-500

500 Series Module EQ

• Coupled transformer with symmetric inputs and outputs
• Passive EQ in Pultec style
• Hybrid gain make-up amplifier
• 3-Step switched EQ low frequency boost 30 Hz, 60 Hz, 100 Hz +/-10%
• 3-Step switched EQ high frequency boost 6 kHz, 10 kHz, 16 kHz +/-10%
• 3-Step switched EQ high frequency attenuation 10 kHz, 15 kHz, 20 kHz +/-10%
• True hardwire EQ bypass
• Design: API Series 500 format
