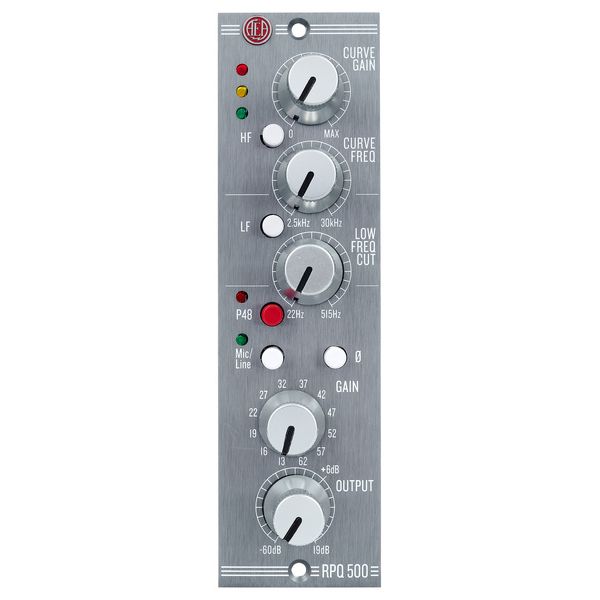

AEA RPQ500

Ribbon Microphone Amplifier with 2-Band EQ in API 500 Format

• 81 dB gain at 1 kHz (in mic mode)
• Adjustable between +13 dB and +62 dB in 12 steps
• Low noise preamp ON < -130 dBu A-weighted
• Input switchable between Mic (10 kO) and Line (20 kO)
• Switchable LF shelf +0 dB to -20 dB (22 Hz to 515 Hz)
• Switchable HF shelf +0dB to +18dB (2,500 Hz to 30,000 Hz)
• Output gain control -60dB to +19dB
• Switchable phantom power 48V
• Phase switch
