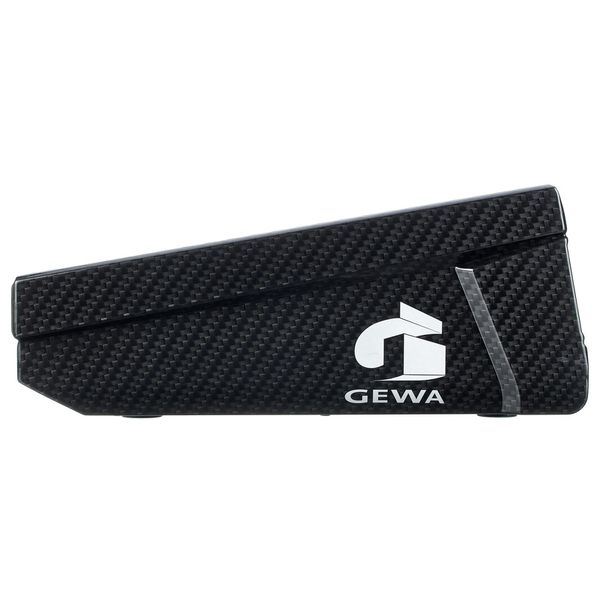

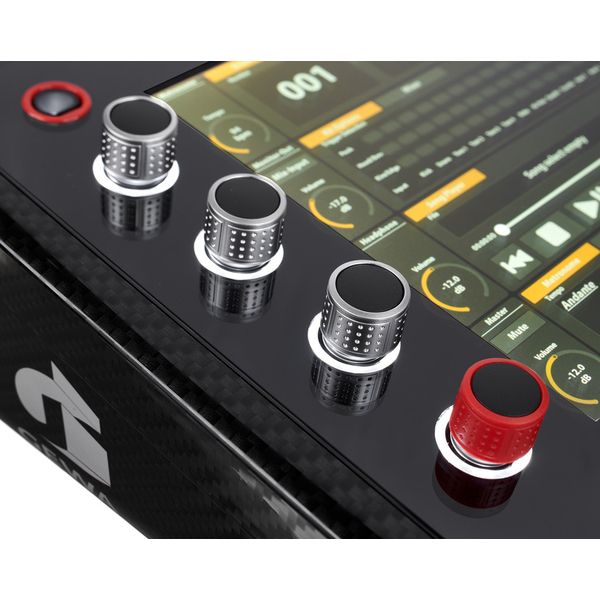

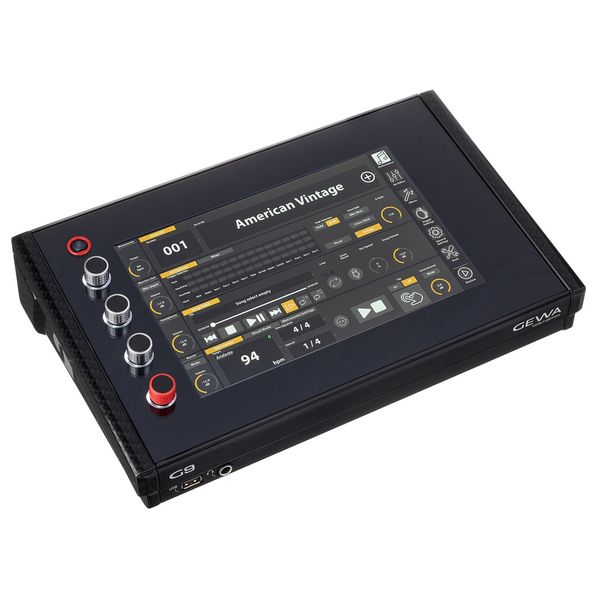

Gewa G9 Drum Workstation

E-Drum Sound Module

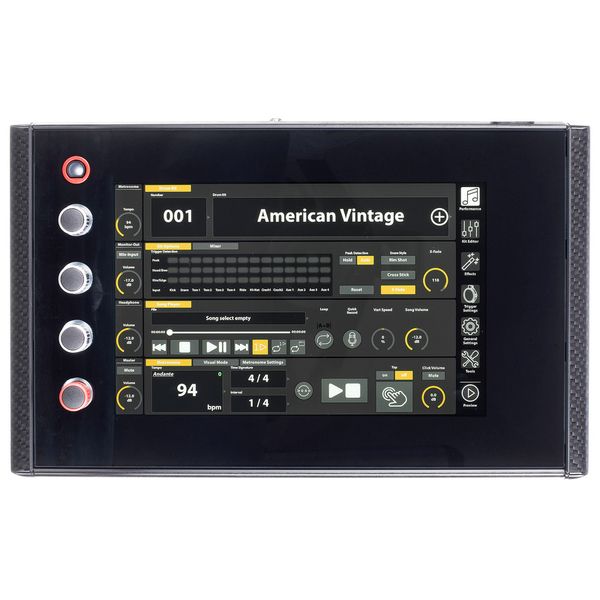

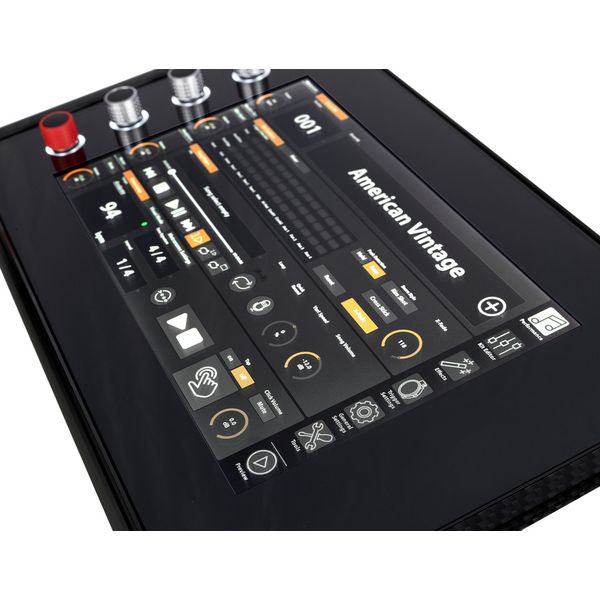

• 10" Touch screen
• Resolution: 1280 x 800px
• 901 Sounds
• 40 Preset kits
• 128 User preset kits
• Up to 1000 individual samples per instrument
• High-resolution multi-layer samples - recorded in the Funkhaus Studios in Berlin and elsewhere
• 3D Sonic Image for a realistic room sound
• WiFi for updates and access to the GEWA Cloud
• Bluetooth audio and MIDI
• Up to 100 WAV samples can be imported (max. length 320 minutes mono / 160 minutes stereo)
• Realtime .WAV recorder
• Compressor and 3-band fully parametric EQ for each pad
• Compressor and 4-band EQ for each output
• Effect banks: Ambient, Instrument Reverb, Room Reverb, Multi-FX
• 12 Types of room reverb
• 9 Multi-effects

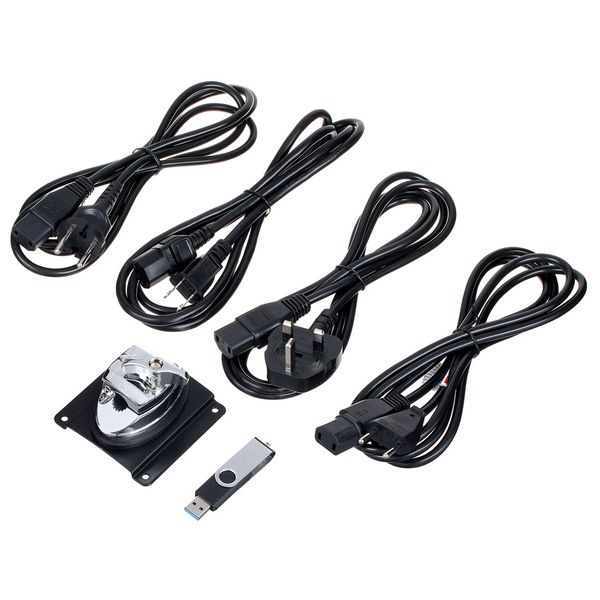

• Incl. power cable

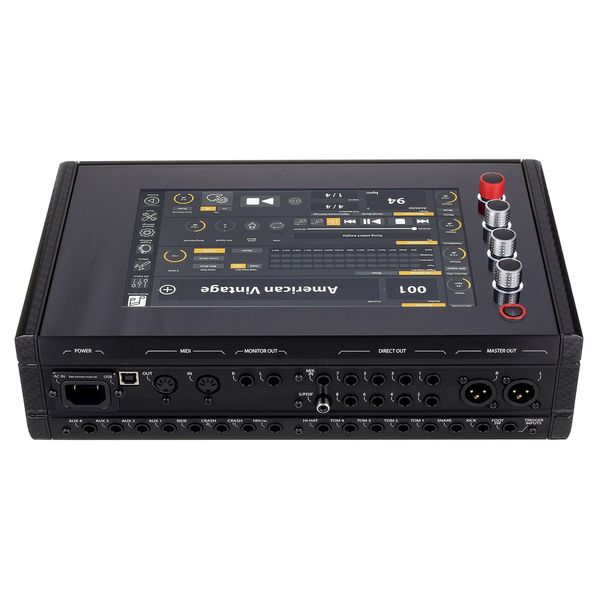

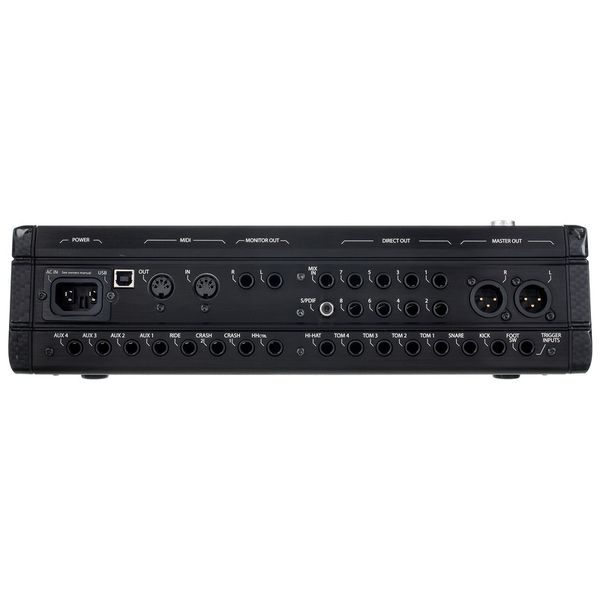

Connectors:

• 14x 6.3 mm jack trigger inputs - fully compatible with pads from other manufacturers
• 2x XLR master outputs
• 2x 6.3 mm jack monitor outputs
• 8x 6.3 mm jack direct outputs
• SPDIF stereo 48 kHz

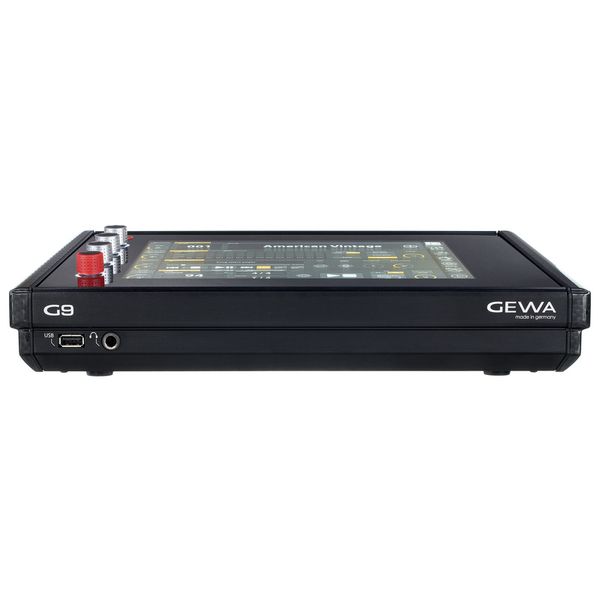

• 1x 6.3 mm headphone output
• 1x 6.3 mm mix input
• MIDI In / Out / Through
• USB Midi (e.g. for use with VST plug-ins) + USB Audio (2 In / 8 Out)
