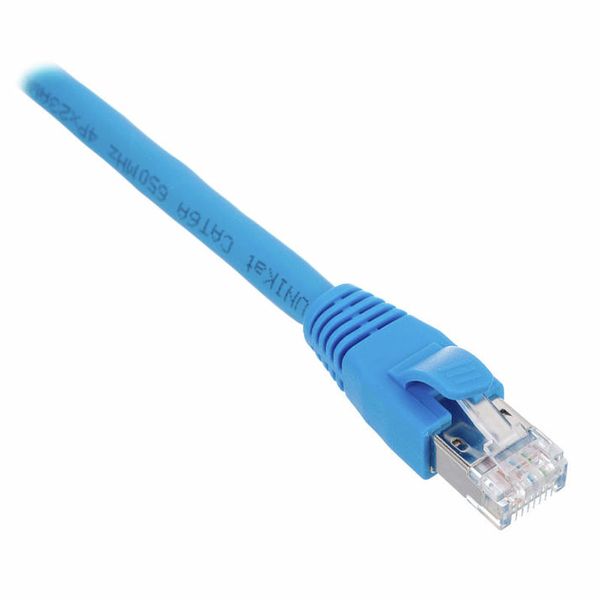

Kramer C-UNIKat-10 Cable 3.0m

KAT 6A U/FTP cable for video and LAN

• Length: 3.0 m
• ScreeningKAT 6A cable suitable for all current signal types
• Four individually shielded twisted pairs with 23 AWG solid copper conductors cabled together in an unshielded outer jacket and conduct DGKat technology, 4K HDBaseT technology or LAN signals
• Optimised for Kramer hardware: use with all Kramer digital twisted pair sets transformer and receiver (DGKat and HDBaseT)
• High-quality shielded RJ-45 plugs (with 50 ? gold-plated contacts)
• Temperatures Operation: -20 to +60 °C
• Temperatures storage, transport, installation: 0° to 50° C
• Electrical standard: TIA/EIA 568-B, ISO/IEC 11801
• Fire protection: IEC 60332
• Smoke density: IEC61034
• Halogen-free: IEC 60754
• Impedance: 1-100 MHz: 100 ± 15 Ohm / 100-250 MHz: 100 ± 20 Ohm / 250-500 MHz : 100 ± 50 Ohm
• Propagation speed: 76%
• Mutual pair capacitance: <=42 pF/m
• Capacitance Unbalanced Pair/Ground: <= 1500 pF/km
• Max. line resistance: 79.8 Ohm/km
• Max. Conductor DC Resistance: DC <1.5
• Dielectric strength: 2.5 kV DC (2s)
• Insulation resistance: > 5000 MOhm/km
• Supply voltage: 30 V

Conductor properties:

• 4 x 2 x 23 AWG
• Annealed copper
• Diameter: 0.56 ± 0.01 mm
• Insulation material: skin/foam/skin HDPE
• Diameter: 1.33 ± 0.1 mm
• Colour: Per TIA/EIA 568-B
• Shielding: Alu/PET per pair (Alu outside)
• Drain-wire: 90 % tinned copper
• Drain-wire ?: 0.4 ± 0.01 mm

Jacket properties:

• LSHF
• Outer diameter: 7.2 ± 0.2 mm
• Maximum pulling tension: 100 N
• Bending radius: 6 cm
• Colour: Blue RAL5012
