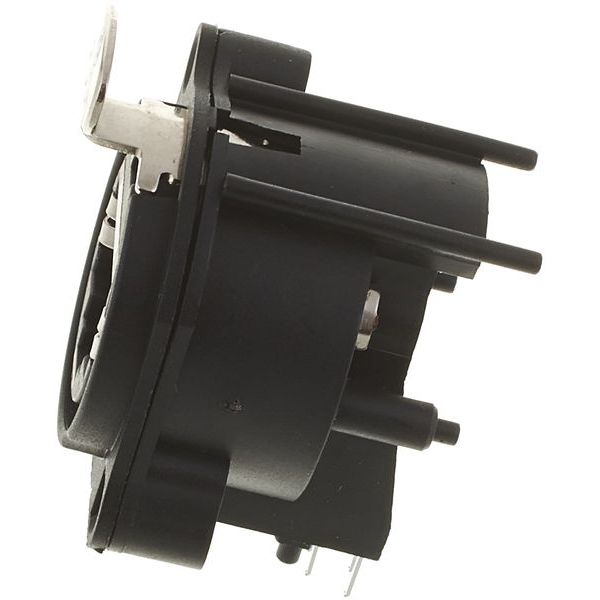

Neutrik NE8 FAH

Chassis Socket in Plastic Housing

• Horizontal PCB mount
• Max. panel thickness: 3 mm
• Frequency bandwidth: 1 - 100 MHz
• Number of contacts: 8
• Rated current: 1.5 A
• Dielectric strength: 1000 V ac rms
• Contact resistance: < 10 m
• Insulation resistance: > 500 M
• Lifetime: 1000 cycles
• Lock: Locking lever
• Strength of the front panel: Max. 3 mm [0:12"]
• Housing: PBTP 15% GR
• Strain relief clamp: Ck67
• Ni plated
• Contacts: Bronze CuSn6
• Contact plating: 0.2 ?m Au over Ni plating
• Temperature range: -30 ° C to + 80 ° C
• Flammability: UL 94 V-0
